Home / General Purpose Relay, 24V DC Coil Volts, Square, 8 Pin, DPDT

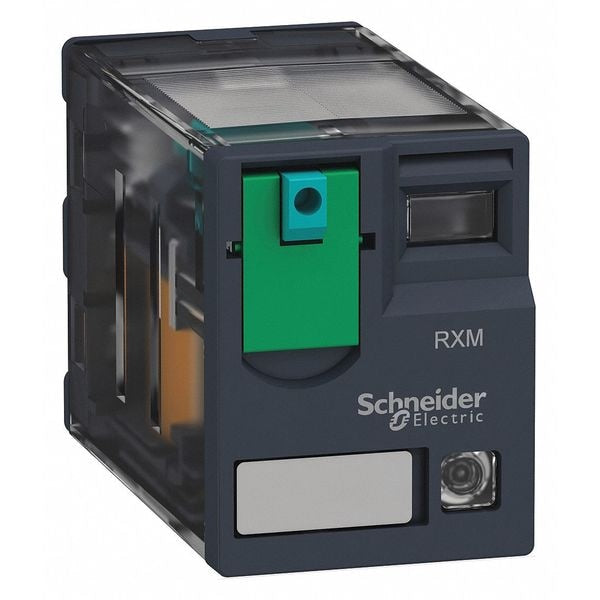

General Purpose Relay, 24V DC Coil Volts, Square, 8 Pin, DPDT

General Purpose Relay, 24V DC Coil Volts, Square, 8 Pin, DPDT

  • Schneider Electric
  • General Purpose Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 12 A, Electrical Connection Quick-Connect, Flat Pin Width 0.09 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Mechanical Flag, Contact Rating (AC) 12 A @ 250V, Contact Rating (DC) 12 A @ 28V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable, Body Depth 1.57 in, Body Height 1.06 in

    graingerSKU: 1XZP3, mscSKU: , zoro_no: G2081256, mongo_id: 65bbe6dd3aaddbd5a905adaf

Web Price
$11.11 / each
Qty

Product Details

12A @ 277V
Square
Square
Square
1.57 in
1.06 in
1.06 in
1.81 in
0.82 in
0.83 in
650 ohm
24V DC
DC
24V DC
DPDT
DPDT
Silver Alloy
12A @ 277VAC/30VDC
12 A @ 250V
12 A @ 28V
China
12 A
12A @ 28V
1,300V AC Between Contacts with Micro Disconnection, 2,000V AC Between Coil and Contact with Basic Insulation, 2,000V AC Between Poles with Basic Insulation
Quick-Connect
Tab
100,000
Enclosed
Lockable Test Button; Status LED
0.09 in
RXZE Socket
RoHS 2011/65/EU Compliant
Not Rated
Not Rated
Not Rated
Not Rated
26.4V DC
IP40
General Purpose Relay
131 Degrees F
250V
10,000,000
-40 Degrees F
10 mA
Not Rated - Not Rated
Plug In
Plug-In
8
8
-40-55°C
20 ms
1.8 in
2.17 in
1
Flat
8
0.9 W
1.1 W
RT I
Lockable
Lockable Push Test Button
Lockable
Socket
Shock-Resistant, Vibration-Resistant
20 msec
Enclosed
Harmony(TM) RXM Series
Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M
K
Socket / Square / 8 / 0.09 in
CE Certified, CSA C22.2 No 14, CSA Certified, EN/IEC 61810-1, GOST, Lloyd's, UL 508, UL Listed
Mechanical Flag
Max 3000 VA/336 W; Min 170 mW 10 mA, 17 V
250 V IEC
1.28 oz
