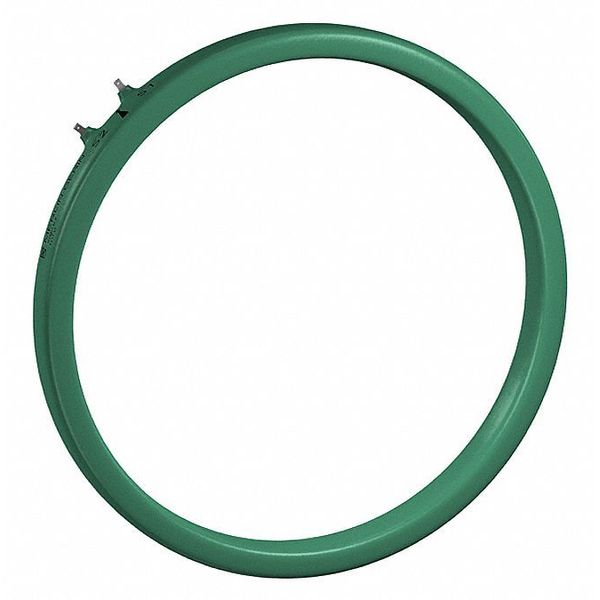

Ground Fault Sensor, Toroid, 300 mm, 630A

SKU
Brand Schneider Electric
Categories
Description Ground Fault Sensor, Application Equipment Monitoring and Control, Compatible Series RH10M, RH10P, RH197M, RH197P, RH21M, RH21P, RH68M, RH86M, RH86P, RH99M, RH99P, RHU, RHUs, RMH, Product Type Closed Toroid, Depth 1.81 in, Height 14.17 in, IP Rating IP20; IP30, Number of Pieces 1, Standards RoHS Compliant, Weight 4.92 lb, Width 15.35 in
graingerSKU: 6UKW5, mscSKU: , zoro_no: G2775202, mongo_id: 65bbe88a9a749db822798eea

Web Price

$2,553.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -31 to 158ÃÂ°F (-35 to 70ÃÂ°C)

Ambient Air Temperature For Storage -67 to 185ÃÂ°F (-55 to 85ÃÂ°C)

Amps AC 630

Application Equipment Monitoring and Control

Cable Dia. 150 mm

Cable Outer Diameter 5.91 in (150 mm) 2 0.37 inÃÂ² (240 mmÃÂ²)

Compatible Series RH10M, RH10P, RH197M, RH197P, RH21M, RH21P, RH68M, RH86M, RH86P, RH99M, RH99P, RHU, RHUs, RMH

Connection Type Clip

Connections - Terminals Connection by clip 0.01 inÃÂ² (6.35 mmÃÂ²)

Contains 11.77 in Hole dia

Country of Origin (subject to change) France

Current Sensor Type A type closed toroid

Depth 1.81 in

Diameter Inner 11.46 in (291 mm)

Environment Damp

Environmental Characteristic Exposure to damp heat not in service 25 to 55ÃÂ°C, RH 95%) 28 cycles IEC 60068-2-30; Salt mistKb/2 IEC 60068-2-52; Exposure to damp heat in servicecategory C2 48 hours IEC 60068-2-56

Features Mercury Free; Overvoltage Category IV; Pollution Degree level 3 IEC 60664-1

For Use With TeSys T Motor Management System

Height 14.17 in

Hz_ 45 to 440 Hz

Impulse Withstand Voltage 12 kV

Inside Dia. 291 mm

IP Degree Of Protection Connectors IP20; IP30

IP Rating IP20; IP30

Length 390 mm

Length (In.) 13.54 in

Mounting Fixed Cables

Mounting Mode Fixed cables)

Network Types AC/DC

Number of Pieces 1

Operating Temp. Range -35 to 70ÃÂ°C

Overvoltage Category IV

Package Quantity 1

Pollution Degree Level 3 IEC 60664-1

Product Certifications CE

Product Or Component Type Earth leakage current sensor

Product Type Closed Toroid

Range Compatibility VigiPacT RH10M residual current protection relay; VigiPacT RH10P residual current protection relay; VigiPacT RH21M residual current protection relay; VigiPacT RH21P residual current protection relay; VigiPacT RH68M residual current protection relay; VigiPacT RH86M residual current protection relay; VigiPacT RH86P residual current protection relay; VigiPacT RH99M residual current protection relay; VigiPacT RH99P residual current protection relay; VigiPacT RH197M residual current protection relay; VigiPacT RH197P residual current protection relay; VigiPacT RHU residual current protection relay; VigiPacT RHUs residual current protection relay; VigiPacT RMH residual current protection relay

Rated Insulation Voltage 1000 V

Rated Insulation Volts 1000V

Rated Operational Current 630 A

Rated Short Time Withstand Current 85 kA 0.5 s

Rated Short-Time Withstand Current 85 kA at 0.5 s

Residual Short-Circuit Withstand Current 85 kA / 0.5 s IEC 60947-2

Series GA300

Standards RoHS Compliant

Storage Temp. Range -55 to 85ÃÂ°C

Transformer Ratio 1/1000

Type Toroid Sensor GA300 TA 300mm (118 in)

Weight 4.92 lb
