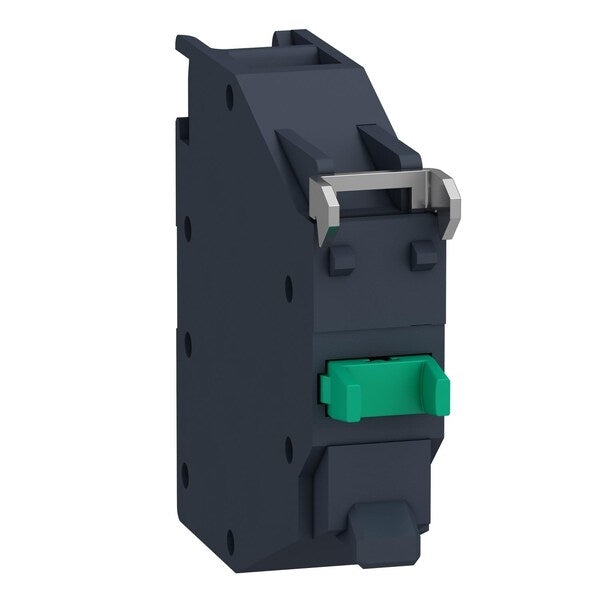

Hazardous Location NO Contact Block

SKU
Brand Schneider Electric
Categories
Description Contact Block, Contact Form 1 NO, Application Oil &Gas, Chemicals, Food & Beverage, Printing, Paint Manufacturing Lines, NEMA Contact Rating Designation A600/Q300, Terminal Connection Screw Clamp, Standards EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01, Safety Rating EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01
graingerSKU: , mscSKU: , zoro_no: G0200858, mongo_id: 65bbe6c23aaddbd5a904ee4c

Web Price

$57.94 / each

Qty

Product Details

Ambient Air Temperature For Operation -50-75ÃÂ°C

Ambient Air Temperature For Storage -50-70ÃÂ°C

Application Oil &Gas, Chemicals, Food & Beverage, Printing, Paint Manufacturing Lines

Cad Overall Depth 42.4 mm

Cad Overall Height 10 mm

Cad Overall Width 38 mm

Connections - Terminals screw clamp terminals, 2 x 1.5 mmÃÂ² without cable end || screw clamp terminals, 1 x 2.5 mmÃÂ² with cable end

Contact Block Type single

Contact Form 1 NO

Contact Operation standard

Contacts Type And Composition 1 NO

Contacts Usage gas protected contact

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Device Short Name ZBE

Environmental Characteristic hazardous location class I division 2

Marking Ex db eb IIC Gb

Mechanical Durability 1000000 cycles

Mounting Of Block front mounting

NEMA Contact Rating Designation A600/Q300

Operating Force 3.962 N

Operating Travel 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)

Package Quantity 1

Positive Opening without

Product Certifications cULus

Product Or Component Type contact block

Protective Treatment TH

Rated Operational Current 1.9 A 380 V, AC, A600 IEC 60947-5-1; 3 A 240 V, AC, A600 IEC 60947-5-1; 6 A 120 V, AC, A600 IEC 60947-5-1; 0.27 A 250 V, DC, Q300 IEC 60947-5-1; 0.55 A 125 V, DC, Q300 IEC 60947-5-1; 2.87 A 24 V, DC, Q300 IEC 60947-5-1

Safety Rating EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01

Standards EN/IEC 60079-7, EN/IEC 60079-0, EN/IEC 60079-1, EN/IEC 60079-31, UL 60079-31, UL 60079-0, CSA C22.2 No 213, UL 60079-1, ANSI/ISA 12.12.01

Terminal Connection Screw Clamp

Tightening Torque 0.8-1.2 N.m EN 60947-1

[Ie] Rated Operational Current 1.9 A 380 V, AC, A600 EN/IEC 60947-5-1 || 3 A 240 V, AC, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC, A600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 EN/IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Ui] Rated Insulation Voltage 415 V
