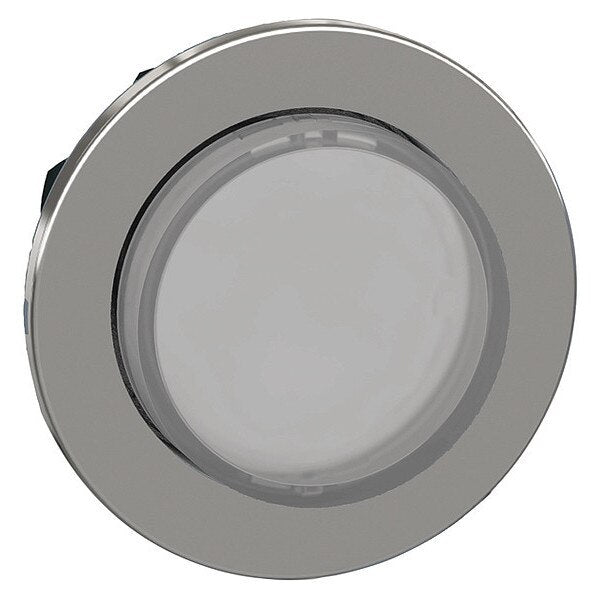

Head for Push Button, 30 mm, White

SKU
Brand Schneider Electric
Categories
Description Head for Push Button, 30 mm, Maintained Push, Head Material Metal, Lamp Module Voltage Module Not Included, Bezel Chrome Plated Metal, Color White, Basic Material Metal, Lamp Module Type Module Not Included, Lamp Voltage Dependant on Module Used, Replacement Lamp Module Not Included, NEMA Rating 12, 13, 4, 4X, IP Rating 66, 67, 69, 69K, Legend No Legend, Legend/Background Color No Legend

Web Price

$19.56 / each

Qty

Product Details

Action Maintained Push

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Chrome Plated Metal

Bezel Material chromium plated metal

Cad Overall Depth 33 mm

Cad Overall Height 36.6 mm

Cad Overall Width 36.6 mm

Color White

Country of Origin (subject to change) France

Device Presentation basic element

Device Short Name ZB4F

Electrical Composition Code M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED

Electrical Shock Protection Class class I IEC 60536

Head Material Metal

Head Type built-in-flush

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

IP Rating 66, 67, 69, 69K

Lamp Module Type Module Not Included

Lamp Module Voltage Module Not Included

Lamp Voltage Dependant on Module Used

Legend No Legend

Legend/Background Color No Legend

Mechanical Durability 500000 cycles

Mounting Diameter 30.5 mm

NEMA Rating 12, 13, 4, 4X

Operator Profile white projecting, unmarked

Overvoltage Category class I IEC 60536

Package Quantity 1

Product Certifications UL Listed || CSA || CCC || EAC

Product Compatibility universal LED

Product Or Component Type head for illuminated push-button

Protective Treatment TH

Replacement Lamp Module Not Included

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Size 30 mm

Standards CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Terminal Connection Screw Clamp

Type Of Operator push-push

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
