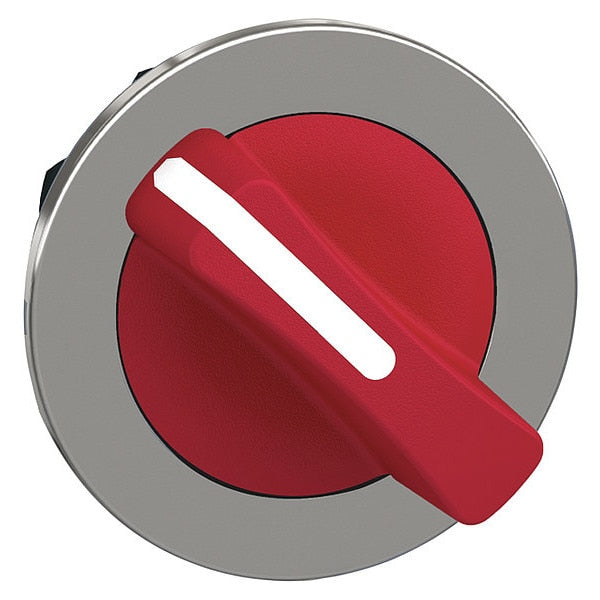

Head for Selector Switch, 30mm, 2 Position

SKU
Brand Schneider Electric
Categories
Description Head for selector switch, 30 mm, 2 Position, Maintained / Maintained Action, Lever Type of Operator, Operator Color Red, Bezel Material Chromium Plated Metal, NEMA Rating 12, 13, 4, 4X, IP Rating 66, 67, 69, 69K, Standards CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, Key Number No Key
graingerSKU: null, mscSKU: null, zoro_no: G3571198, mongo_id: 65bbe5f33aaddbd5a9ff7fcd

Web Price

$21.06 / each

Qty

Product Details

Action Maintained / Maintained

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Material Chromium Plated Metal

Cad Overall Depth 47 mm

Cad Overall Height 36.6 mm

Cad Overall Width 36.6 mm

Country of Origin (subject to change) France

Device Presentation basic element

Device Short Name ZB4F

Electrical Composition Code C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting

Head Type built-in-flush

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

IP Rating 66, 67, 69, 69K

Key Number No Key

Mechanical Durability 1000000 cycles

Mounting Diameter 30.5 mm

NEMA Rating 12, 13, 4, 4X

Operator Color Red

Operator Position Information 2 positions 90ÃÂ°

Operator Profile red standard handle

Overvoltage Category class I IEC 60536

Package Quantity 1

Position 2

Product Certifications UL Listed || CSA || CCC || EAC

Product Or Component Type head for selector switch

Protective Treatment TH

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Size 30 mm

Standards CE, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Switch Operation @ Position C No Third Position

Switch Operation @ Position D No Fourth Position

Type of Operator Lever

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
