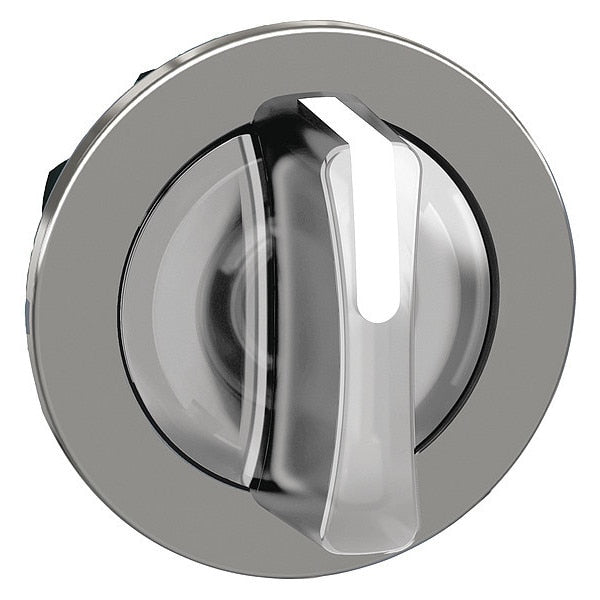

Head for Selector Switch, 30mm Sz, LED

SKU
Brand Schneider Electric
Categories
Description Head for Selector Switch, 30 mm, Lamp Type LED, 3 Position, Operator Color White, Basic Material Metal, Momentary / Maintained / Maintained Action, Lamp Module Type Module Not Included, Lamp Module Voltage Module Not Included, Bezel Material Chromium Plated Metal, Bezel Color Chrome, Lamp Voltage Dependant on Module Used, IP Rating 66, 67, 69, 69K, Standards CCC, CSA, CSA C22.2 No 14, EAC, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, UL listed
graingerSKU: , mscSKU: , zoro_no: G0197078, mongo_id: 65bbe7033aaddbd5a906aac6

Web Price

$50.94 / each

Qty

Product Details

Action Momentary / Maintained / Maintained

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Color Chrome

Bezel Material Chromium Plated Metal

Cad Overall Depth 47 mm

Cad Overall Height 36.6 mm

Cad Overall Width 36.6 mm

Country of Origin (subject to change) France

Device Presentation basic element

Device Short Name ZB4F

Electrical Composition Code M3 4 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || M4 4 single and double front mounting integral LED

Head Type built-in-flush

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E

IP Rating 66, 67, 69, 69K

Lamp Module Type Module Not Included

Lamp Module Voltage Module Not Included

Lamp Type LED

Lamp Voltage Dependant on Module Used

Mechanical Durability 500000 cycles

Mounting Diameter 30.5 mm

Operator Color White

Operator Position Information 3 positions +/- 45ÃÂ°

Operator Profile white standard handle

Overvoltage Category class I IEC 60536

Package Quantity 1

Position 3

Product Certifications UL Listed || CSA || CCC || EAC

Product Compatibility universal LED

Product Or Component Type head for illuminated selector switch

Protective Treatment TH

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

Size 30 mm

Standards CCC, CSA, CSA C22.2 No 14, EAC, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508, UL listed

Type Of Operator left to centre spring return

Vibration Resistance 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
