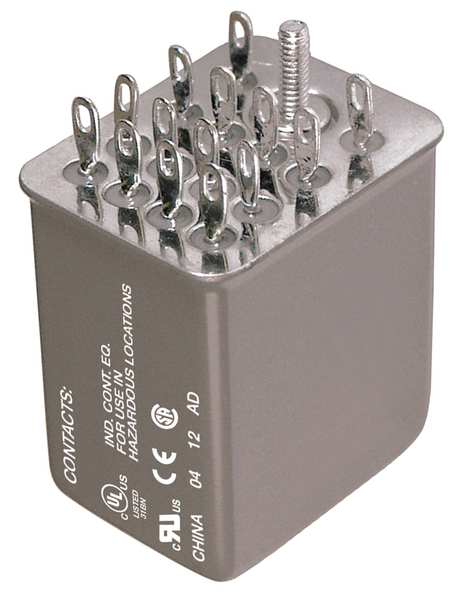

Hermetically Sealed Relay, 12V DC Coil Volts, Square, 14 Pin, 4PDT

Hermetically Sealed Relay, 12V DC Coil Volts, Square, 14 Pin, 4PDT

  • Schneider Electric
  • Hermetically Sealed Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 4PDT, Current Rating 3 A, Electrical Connection Plug-In, Number of Pins 14, Sealing Hermetically Sealed, Status Indicator No Indicator, Contact Rating (AC) 3 A @ 120/240V, Contact Rating (DC) 3 A @ 30V, Horsepower @ 120V AC 1/16 hp, Horsepower @ 240V AC 1/8 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.28 in, Body Height 1.16 in, Body Width 0.91 in, Coil Resistance 160 ohm

    graingerSKU: 6CWG0, mscSKU: , zoro_no: G2896756, mongo_id: 65bbe98f22d7a989a99612ca

Web Price
$110.94 / each
Qty

Product Details

3A @ 240V
-76 to 185°F (-60 to 85°C)
-49 to 158°F (-45 to 70°C)
0.90 W
Square
Square
Square
1.28 in
1.16 in
1.16 in
1.28 in
0.91 in
0.91 in
160 ohm
12V DC
DC
12V DC
4 C/O
4PDT
4PDT
Gold Flashed Silver
3A @ 240VAC/30VDC
3 A @ 120/240V
3 A @ 30V
Gold flashed fine silver
China
Hermetically sealed
3 A
3A @ 28V
1.13 in (28.75 mm)
1,600V AC Between Coil and Contact, 1,600V AC Between Poles
Plug-In
Pin
100000 cycles resistive IEC
100,000
Hermetically Sealed
Automation Panels and Controls
RoHS 2011/65/EU Compliant
1.28 in (32.5 mm)
1/16 hp
1/8 hp
1/16 hp
1/10 hp
12V DC
IP40
Hermetically Sealed Relay
158 Degrees F
240V AC
10000000 cycles
10,000,000
-49 Degrees F
100 mA
Yes
Plug In
Plug-In
14
14
3 A at 120V AC (Resistive Load), 3 A at 240V AC (Resistive Load), 3 A at 30V DC (Resistive Load)
1.53 in
1.52 in
1
14
0.9 W
1.2 W
UL; CSA; CE
Harmony Electromechanical Relays
Plug-in relay
No
No Test Button
No Button
Socket
Shock-Resistant, Vibration-Resistant
20 msec
Class 1, Div 2
Hermetically Sealed
782 Series
Miniature
10 gn
Mfr. No. 70-461-1, 70-782D14-1
G
Socket / Square / 14
CE Certified, CSA Certified, UL Listed
No Indicator
6 gn 10 to 55 Hz)
1.59 oz
0.90 in (22.75 mm)
3 A at 120 V AC (on resistive load); 3 A at 240 V AC (on resistive load); 3 A at 30 V DC (on resistive load)
12 V
