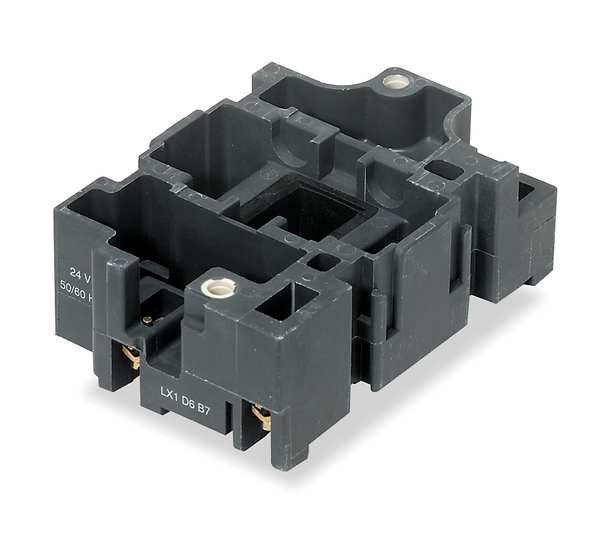

IEC Contactor Coil

SKU
Brand Schneider Electric
Categories
Description Replacement Coil, Coil Voltage 24V AC, NEMA Size Not Applicable, Compatible with Series LC1D40 Contactors, LC1D50 Contactors, LC1D65 to D95 Contactors, TeSys Deca, Contactor Style IEC, Coil Power 245 VA, Frequency 50/60 Hz
graingerSKU: 3DE10, mscSKU: , zoro_no: G1472274, mongo_id: 65bbe92f22d7a989a993e76e

Web Price

$69.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -5-60 ÃÂ°C

Average Resistance 1.22 Ohm 20 ÃÂ°C

Coil Power 245 VA

Coil Technology without built-in suppressor module

Coil Voltage 24V AC

Coil Volts 24V AC

Compatible with Series LC1D40 Contactors, LC1D50 Contactors, LC1D65 to D95 Contactors, TeSys Deca

Contactor Style IEC

Contactor Type IEC

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage Limits drop-out 0.3 to 0.6 Uc 50/60 Hz 55 ÃÂ°C) || operational 0.8 to 1.1 Uc 50 Hz 55 ÃÂ°C) || operational 0.85 to 1.1 Uc 60 Hz 55 ÃÂ°C)

Country of Origin (subject to change) Czechia

Device Short Name LX1D6

For Use With LC1D40, 50, 65, 80

Frequency 50/60 Hz

Heat Dissipation 6-10 W 50/60 Hz

Hold-In Power Consumption In Va 26-26 VA 60 Hz 0.3 20 ÃÂ°C) || 26-26 VA 50 Hz 0.3 20 ÃÂ°C)

Hz_ 50/60

Inductance Of Closed Circuit 0.08 H

Inrush Power In Va 245-245 VA 60 Hz 0.75 20 ÃÂ°C) || 245-245 VA 50 Hz 0.75 20 ÃÂ°C)

Maximum Operating Rate 3600 cyc/h 60 ÃÂ°C

Mechanical Durability 4 Mcycles

NEMA Size Not Applicable
