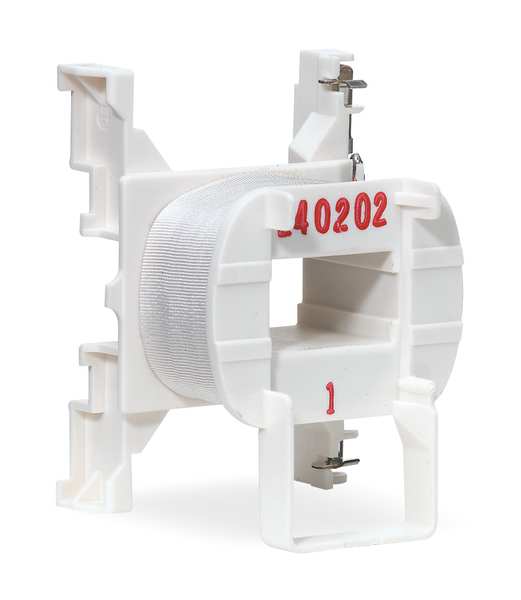

IEC Contactor Coil

SKU
Brand Schneider Electric
Categories
Description Replacement Coil, Coil Voltage 120V AC, NEMA Size Not Applicable, Compatible with Series CAD Relays, LC1D09 to D38 Contactors, LC1DT20 to DT40 Contactors, TeSys Deca, Contactor Style IEC, Coil Power 70 VA, Frequency 50/60 Hz
graingerSKU: 3DB97, mscSKU: , zoro_no: G1645296, mongo_id: 65bbe92f22d7a989a993e75b

Web Price

$45.19 / each

Qty

Product Details

Ambient Air Temperature For Operation -5-60 ÃÂ°C

Average Resistance 150.6 Ohm 20 ÃÂ°C

Coil Power 70 VA

Coil Technology without built-in suppressor module

Coil Voltage 120V AC

Coil Volts 120V AC

Compatible with Series CAD Relays, LC1D09 to D38 Contactors, LC1DT20 to DT40 Contactors, TeSys Deca

Contactor Style IEC

Contactor Type IEC

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage Limits drop-out 0.3 to 0.6 Uc 50/60 Hz 60 ÃÂ°C) || operational 0.8 to 1.1 Uc 50 Hz 60 ÃÂ°C) || operational 0.85 to 1.1 Uc 60 Hz 60 ÃÂ°C)

Country of Origin (subject to change) France

Device Short Name LXD1

For Use With LC1D09, 12, 18, 25, 32

Frequency 50/60 Hz

Heat Dissipation 2-3 W 50/60 Hz

Hold-In Power Consumption In Va 7.5-7.5 VA 60 Hz 0.3 20 ÃÂ°C) || 7-7 VA 50 Hz 0.3 20 ÃÂ°C)

Hz_ 60

Inductance Of Closed Circuit 5.4 H

Inrush Power In Va 70-70 VA 60 Hz 0.75 20 ÃÂ°C) || 70-70 VA 50 Hz 0.75 20 ÃÂ°C)

Maximum Operating Rate 3600 cyc/h 60 ÃÂ°C

Mechanical Durability 15 Mcycles

NEMA Size Not Applicable
