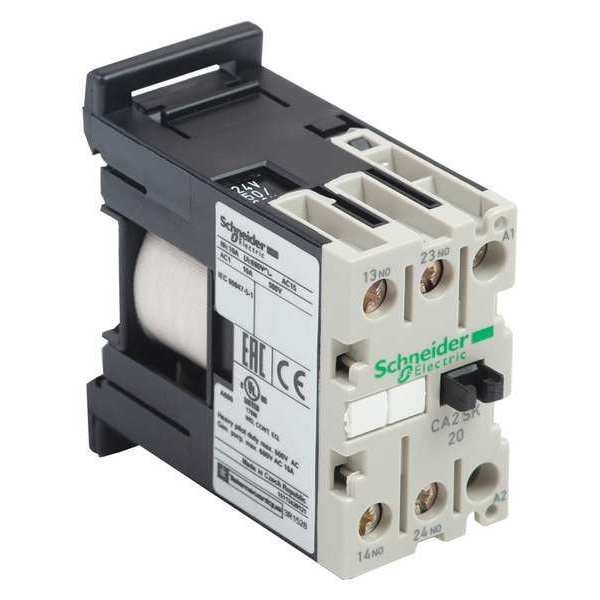

IEC Control Relay, 1NO/1NC, 24VDC, 10A

SKU
Brand Schneider Electric
Categories
Description IEC Control Relay, Current Rating 10 A, Contact Form 1NO/1NC, Contact Rating (DC) 2 A @ 125/250/600V, Coil Voltage 24V DC, Contact Rating (AC) 10 A @ 120/240/480/600V, Relay Style IEC, Electrical Connection Screw Clamp, Mounting Style DIN Rail, Power Consumption 2.2 W, IP Rating IP2X, Compatible with Series TeSys SK Mini Control Relays, Maximum Operating Temperature 122 Degrees F, Body Depth 2.19 in, Body Height 2.2 in, Body Width 1.06 in, Contact Material Silver Nickel, Input Voltage 24V DC
graingerSKU: 2VLK7, mscSKU: , zoro_no: G0371235, mongo_id: 65bbe7379a749db822726231

Web Price

$100.19 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120/240/480/600V

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -50-70ÃÂ°C

Associated Fuse Rating 10 A gL VDE 0660 || 10 A gL IEC 60947

Body Depth 2.19 in

Body Depth - Relay 2.24 in

Body Height 2.2 in

Body Height - Relay 2.28 in

Body Width 1.06 in

Body Width - Relay 1.77 in

Coil Rating 3VA Inrush, 3VA Sealed

Coil Voltage 24V DC

Coil Volts 24V DC

Compatible with Series TeSys SK Mini Control Relays

Connections - Terminals screw clamp terminals 1 1.5-6 mmÃÂ²solid || screw clamp terminals 2 1.5-4 mmÃÂ²solid || screw clamp terminals 1 0.5-6 mmÃÂ²flexible without cable end || screw clamp terminals 1 0.35-6 mmÃÂ²flexible with cable end || screw clamp terminals 2 0.35-1.5 mmÃÂ²flexible with cable end || screw clamp terminals 2 0.35-2.5 mmÃÂ²flexible without cable end

Contact Amp Rating (Resistive) 10A

Contact Form 1NO/1NC

Contact Form - Relay (1) SPST-NC, (1) SPST-NO

Contact Material Silver Nickel

Contact Rating (AC) 10 A @ 120/240/480/600V

Contact Rating (DC) 2 A @ 125/250/600V

Contactor Application control circuit

Control Circuit Type DC standard

Control Circuit Voltage Limits operational 0.85...1.1 Uc 50ÃÂ°C) || drop-out 0.1...0.75 Uc 50ÃÂ°C)

Country of Origin (subject to change) Czechia

Current Rating 10 A

DC Contact Rating - Relay 2.00A @ 125/250/600V

Depth 55.5 mm

Device Short Name CA3SK

Electrical Connection Screw Clamp

Heat Dissipation 2.2-2.2 W

Height 56 mm

Hold-In Power Consumption In W 2.2-2.2 W 20ÃÂ°C

Hz_ Not Applicable

Input Voltage 24V DC

Inrush Power In W 2.2-2.2 W 20ÃÂ°C)

Ip Degree Of Protection IP2X

IP Rating IP2X

Item - Relay IEC Style Control Relay

Maximum Operating Rate 1200 cyc/h

Maximum Operating Temperature 122 Degrees F

Mechanical Durability 10 Mcycles

Minimum Operating Temperature -4 Degrees F

Mounting Din Rail/Panel

Mounting - Relay DIN Rail, Surface

Mounting Style DIN Rail

Mounting Support rail || plate

Number of Pins 6

Number of Pins - Relay 6

Operating Altitude 6561.68 ft (2000 m) without derating

Operating Time 4...6 ms coil de-energisation and NO opening || 8...12 ms coil energisation and NO closing || 6...8 ms coil de-energisation and NC closing || 10...18 ms coil energisation and NC opening

Overall Height 2.2 in

Overall Height - Relay 2.28 in

Package Quantity 1

Pole Contact Composition 1 NO + 1 NC

Power Consumption 2.2 W

Power Consumption - Relay 3.0 VA

Product Certifications CB Scheme || cULus || EAC || CE || UKCA

Product Name TeSys CASK

Product Or Component Type control relay

Protective Treatment TC IEC 60068

Range TeSys

Relay Style IEC

Response Time 10 to 18 msec (Coil Energisation and NC Opening), 4 to 6 msec (Coil De-Energisation and NO Opening), 6 to 8 msec (Coil De-Energisation and NC Closing), 8 to 12 msec (Coil Energisation and NO Closing)

Standards CCC, CSA Certified, EAC, IEC, REACH, RoHS Compliant, UL Listed

Tightening Torque 0.8 N.m screw clamp terminals pozidriv No 1

Utilisation Category DC-13 || AC-15

Weight 0.29 lb

Width 27 mm

[Ith] Conventional Free Air Thermal Current 10 A 55ÃÂ°C

[Uc] Control Circuit Voltage 24 V DC

[Ue] Rated Operational Voltage <= 690 V <= 400 Hz

[Ui] Rated Insulation Voltage 690 V IEC 60947 || 690 V VDE 0110 group C || 690 V BS 5424 || 690 V UL 508 || 690 V CSA C22.2 No 14
