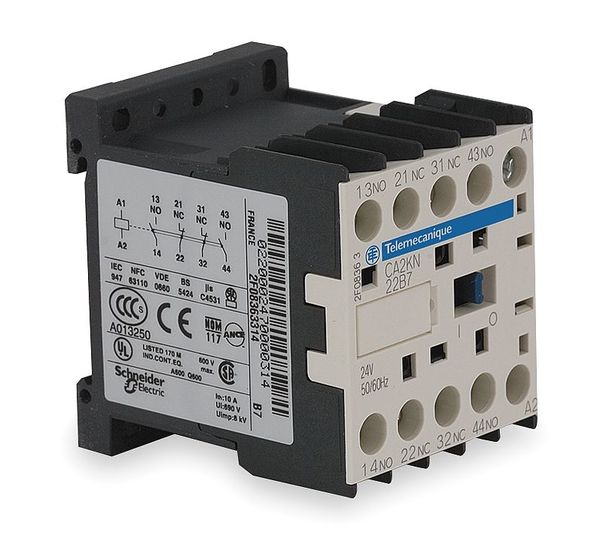

IEC Control Relay, 2NO/2NC, 24VAC, 10A

SKU
Brand Schneider Electric
Categories
Description IEC Control Relay, Current Rating 10 A, Contact Form 2NO/2NC, Contact Rating (DC) 2 A @ 125/250/600V, Coil Voltage 24V AC, Contact Rating (AC) 10 A @ 120/240/480/600V, Relay Style IEC, Electrical Connection Screw Clamp, Mounting Style DIN Rail and Surface, Power Consumption 4.5 VA, IP Rating IP2X, Compatible with Series TeSys K Control Relays, Maximum Operating Temperature 122 Degrees F, Frequency 50/60 Hz, Body Depth 2.24 in, Body Height 2.28 in, Body Width 1.77 in
graingerSKU: 2VLH5, mscSKU: 64679582, zoro_no: G0692693, mongo_id: 65bbe96a22d7a989a9952c6e

Web Price

$59.61 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120/240/480/600V

Ambient Air Temperature For Operation -25-50ÃÂ°C

Ambient Air Temperature For Storage -50-80ÃÂ°C

Associated Fuse Rating 10 A gG IEC 60947 || 10 A gG VDE 0660

Body Depth 2.24 in

Body Depth - Relay 2.24 in

Body Height 2.28 in

Body Height - Relay 2.28 in

Body Width 1.77 in

Body Width - Relay 1.77 in

Coil Rating 30VA Inrush, 4.5VA Sealed

Coil Voltage 24V AC

Coil Volts 24V AC

Compatible with Series TeSys K Control Relays

Connections - Terminals screw clamp terminals 1 1.5-4 mmÃÂ²solid || screw clamp terminals 2 1.5-4 mmÃÂ²solid || screw clamp terminals 1 0.75-4 mmÃÂ²flexible with cable end || screw clamp terminals 2 0.75-4 mmÃÂ²flexible without cable end || screw clamp terminals 1 0.34-1.5 mmÃÂ²flexible with cable end || screw clamp terminals 2 0.34-1.5 mmÃÂ²flexible without cable end

Contact Amp Rating (Resistive) 10A

Contact Form 2NO/2NC

Contact Form - Relay (2) SPST-NC, (2) SPST-NO

Contact Material Silver Nickel

Contact Rating (AC) 10 A @ 120/240/480/600V

Contact Rating (DC) 2 A @ 125/250/600V

Contactor Application control circuit

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage Limits drop-out 0.2...0.75 Uc 50ÃÂ°C) || operational 0.8...1.15 Uc 50ÃÂ°C)

Conventional Free Air Thermal Current 10 A (at 122ÃÂ°F (50ÃÂ°C))

Country of Origin (subject to change) Multiple

Current Rating 10 A

DC Contact Rating - Relay 2.00A @ 125/250/600V

Depth 57 mm

Device Short Name CA2K

Electrical Connection Screw Clamp

Flame Retardance V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Frequency 50/60 Hz

Heat Dissipation 1.3-1.3 W

Height 58 mm

Hold-In Power Consumption In Va 4.5-4.5 VA 20ÃÂ°C)

Hz - Electrical 50 Hz, 60 Hz

Hz_ 50/60

Immunity To Microbreaks 2 ms

Input Voltage 24V AC

Inrush Power In Va 30-30 VA 20ÃÂ°C)

Insulation Resistance > 10 MOhm

Ip Degree Of Protection IP2X

IP Rating IP2X

Irms Rated Making Capacity 110 A IEC 60947

Item - Relay IEC Style Control Relay

Maximum Operating Rate 10000 cyc/h

Maximum Operating Temperature 122 Degrees F

Mechanical Durability 10 Mcycles

Mechanical Robustness vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27

Minimum Operating Temperature -13 Degrees F

Minimum Switching Current 5 mA

Minimum Switching Voltage 17 V

Mounting Din Rail/Panel

Mounting - Relay DIN Rail, Surface

Mounting Style DIN Rail and Surface

Mounting Support plate || rail

Non Overlap Distance 0.5 mm

Number of Pins 10

Number of Pins - Relay 10

Operating Altitude 6561.68 ft (2000 m) without derating

Operating Time 10...20 ms coil de-energisation and NO opening || 10...20 ms coil energisation and NO closing || 15...25 ms coil de-energisation and NC closing || 5...15 ms coil energisation and NC opening

Overall Height 2.28 in

Overall Height - Relay 2.28 in

Package Quantity 1

Pole Contact Composition 2 NO + 2 NC

Power Consumption 4.5 VA

Power Consumption - Relay 4.5 VA

Product Certifications CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Product Name TeSys CAK

Product Or Component Type control relay

Protective Treatment TC IEC 60068

Range TeSys

Rated Insulation Voltage 690 V IEC 60947; 750 V VDE 0110 group C; 690 V BS 5424; 600 V CSA C22.2 No 14

Rated Operational Voltage Less than or Equal to 690 V Less than or Equal to 400 Hz

Relay Style IEC

Response Time 10 to 20 msec (Coil De-Energisation and NO Opening), 10 to 20 msec (Coil Energisation and NO Closing), 15 to 25 msec (Coil De-Energisation and NC Closing), 5 to 15 msec (Coil Energisation and NC Opening)

Standards CCC, CSA Certified, EAC, IEC, REACH, RoHS Compliant, UL Listed

Tightening Torque 1.3 N.m screw clamp terminals Philips No 2 || 1.3 N.m screw clamp terminals flat ÃÂ 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2

Utilisation Category DC-13 || AC-15

Weight 0.4 lb

Width 45 mm

[Ith] Conventional Free Air Thermal Current 10 A 50ÃÂ°C

[Uc] Control Circuit Voltage 24 V AC 50/60 Hz

[Ue] Rated Operational Voltage <= 690 V <= 400 Hz

[Ui] Rated Insulation Voltage 690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
