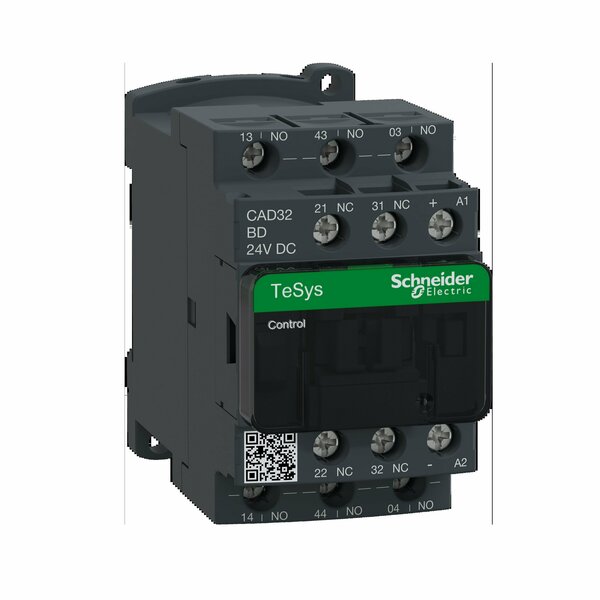

IEC Control Relay, 3NO/2NC, 24VDC, 10A

SKU
Brand Schneider Electric
Categories
Description IEC Control Relay, Current Rating 10 A, Contact Form 3NO/2NC, Contact Rating (DC) 2 A @ 125/250/600V, Coil Voltage 24V DC, Contact Rating (AC) 10 A @ 120/240/480/600V, Relay Style IEC, Electrical Connection Screw Clamp, Mounting Style DIN Rail and Surface, Power Consumption 5.4 W, IP Rating IP2X, Compatible with Series TeSys D Control Relays, Maximum Operating Temperature 140 Degrees F, Body Depth 3.66 in, Body Height 3.03 in, Body Width 1.77 in, Contact Material Silver Nickel
graingerSKU: 3EA26, mscSKU: 76306760, zoro_no: G2640644, mongo_id: 65bbe7379a749db822726230

Web Price

$211.24 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120/240/480/600V

Ambient Air Temperature For Operation -40-60ÃÂ°C || 60-70ÃÂ°C with derating

Ambient Air Temperature For Storage -60-80ÃÂ°C

Associated Fuse Rating 10 A gG IEC 60947-5-1

Body Depth 3.66 in

Body Depth - Relay 4.53 in

Body Height 3.03 in

Body Height - Relay 2.91 in

Body Width 1.77 in

Body Width - Relay 1.77 in

Coil Rating 3VA Inrush, 3VA Sealed

Coil Voltage 24V DC

Coil Volts 24V DC

Compatible with Series TeSys D Control Relays

Connections - Terminals screw clamp terminals 1 1-4 mmÃÂ²flexible without cable end || screw clamp terminals 2 1-4 mmÃÂ²flexible without cable end || screw clamp terminals 1 1-4 mmÃÂ²flexible with cable end || screw clamp terminals 2 1-2.5 mmÃÂ²flexible with cable end || screw clamp terminals 1 1-4 mmÃÂ²solid without cable end || screw clamp terminals 2 1-4 mmÃÂ²solid without cable end

Contact Amp Rating (Resistive) 10A

Contact Form 3NO/2NC

Contact Form - Relay (2) SPST-NC, (3) SPST-NO

Contact Material Silver Nickel

Contact Rating (AC) 10 A @ 120/240/480/600V

Contact Rating (DC) 2 A @ 125/250/600V

Contactor Application control circuit

Control Circuit Type DC standard

Control Circuit Voltage Limits 0.1...0.25 Uc -40-70ÃÂ°C drop-out DC || 0.7...1.25 Uc -40-60ÃÂ°C operational DC || 1...1.25 Uc 60-70ÃÂ°C operational DC

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C))

Country of Origin (subject to change) Indonesia

Current Rating 10 A

DC Contact Rating - Relay 2.00A @ 125/250/600V

Depth 93 mm

Device Short Name CAD

Electrical Connection Screw Clamp

Features 3.03 in H x 1.77 in W x 3.66 in D

Height 77 mm

Hold-In Power Consumption In W 5.4-5.4 W 20ÃÂ°C

Hz_ Not Applicable

Input Voltage 24V DC

Inrush Power In W 5.4-5.4 W 20ÃÂ°C)

Insulation Resistance > 10 MOhm

Ip Degree Of Protection IP2X front face VDE 0106

IP Rating IP2X

Irms Rated Making Capacity 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1

Item - Relay IEC Style Control Relay

Maximum Operating Rate 180 cyc/mn

Maximum Operating Temperature 140 Degrees F

Mechanical Durability 30 Mcycles

Mechanical Robustness shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 5 mA

Minimum Switching Voltage 17 V

Mounting Din Rail/Panel

Mounting - Relay DIN Rail, Surface

Mounting Style DIN Rail and Surface

Mounting Support rail || plate

Non-Overlap Time 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact

Number of Pins 12

Number of Pins - Relay 12

Operating Altitude 0...9842.52 ft (0...3000 m)

Operating Time 53...72 ms coil energisation and NO closing || 16...24 ms coil de-energisation and NO opening || 47...63 ms coil energisation and NC opening || 15...25 ms coil de-energisation and NC closing

Overall Height 3.03 in

Overall Height - Relay 3.03 in

Package Quantity 1

Pole Contact Composition 3 NO + 2 NC

Power Consumption 5.4 W

Power Consumption - Relay 3.0 VA

Product Certifications CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Product Name TeSys CAD

Product Or Component Type control relay

Protective Treatment TH IEC 60068

Range TeSys || TeSys Deca

Rated Insulation Voltage 600 V UL; 600 V CSA; 690 V IEC 60947-5-1

Rated Operational Voltage Less than or Equal to 690 V AC 25 to 400 Hz

Rated Short Time Withstand Current 100 A - 1 s; 120 A - 500 ms; 140 A - 100 ms

Relay Style IEC

Response Time 15 to 25 msec (Coil De-Energisation and NC Closing), 16 to 24 msec (Coil De-Energisation and NO Opening), 47 to 63 msec (Coil Energisation and NC Opening), 53 to 72 msec (Coil Energisation and NO Closing)

Standards CSA Certified, EAC, IEC, RoHS Compliant, UKCA, UL Listed

Tightening Torque 1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat ÃÂ 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2

Time Constant 28 ms

Utilisation Category DC-13 || AC-15 || AC-14

Weight 1.28 lb

Width 45 mm

[Icw] Rated Short-Time Withstand Current 100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms

[Ith] Conventional Free Air Thermal Current 10 A 60ÃÂ°C

[Uc] Control Circuit Voltage 24 V DC

[Ue] Rated Operational Voltage <= 690 V AC 25...400 Hz

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947

[Ui] Rated Insulation Voltage 600 V UL || 600 V CSA || 690 V IEC 60947-5-1
