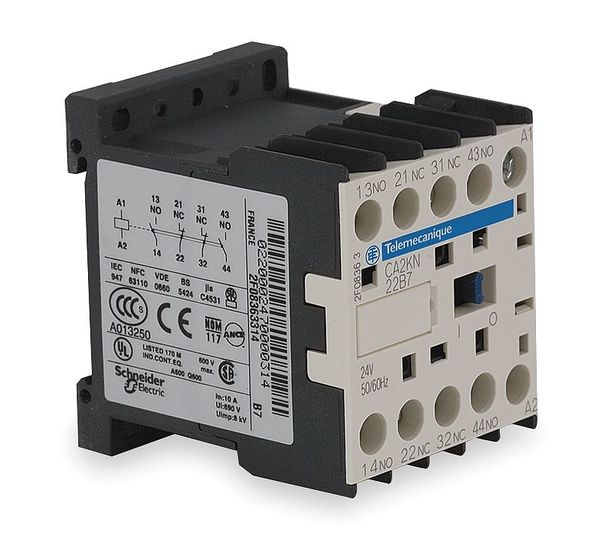

IEC Control Relay, 4NO, 24VDC, 10A

SKU
Brand Schneider Electric
Categories
Description IEC Control Relay, Current Rating 10 A, Contact Form 4NO, Contact Rating (DC) 2 A @ 125/250/600V, Coil Voltage 24V DC, Contact Rating (AC) 10 A @ 120/240/480/600V, Relay Style IEC, Electrical Connection Screw Clamp, Mounting Style DIN Rail and Surface, Power Consumption 3 W, IP Rating IP2X, Compatible with Series TeSys K Control Relays, Maximum Operating Temperature 122 Degrees F, Body Depth 2.24 in, Body Height 2.28 in, Body Width 1.77 in, Contact Material Silver Nickel, Input Voltage 24V DC
graingerSKU: 2VLK6, mscSKU: 69530228, zoro_no: G3396181, mongo_id: 65bbe9fd22d7a989a998c499

Web Price

$97.06 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120/240/480/600V

Ambient Air Temperature For Operation -25-50ÃÂ°C

Ambient Air Temperature For Storage -50-80ÃÂ°C

Associated Fuse Rating 10 A gG IEC 60947 || 10 A gG VDE 0660

Body Depth 2.24 in

Body Depth - Relay 2.24 in

Body Height 2.28 in

Body Height - Relay 2.28 in

Body Width 1.77 in

Body Width - Relay 1.77 in

Coil Rating 3VA Inrush, 3VA Sealed

Coil Voltage 24V DC

Coil Volts 24V DC

Compatible with Series TeSys K Control Relays

Connections - Terminals screw clamp terminals 1 1.5-4 mmÃÂ²solid || screw clamp terminals 2 1.5-4 mmÃÂ²solid || screw clamp terminals 1 0.75-4 mmÃÂ²flexible with cable end || screw clamp terminals 2 0.75-4 mmÃÂ²flexible without cable end || screw clamp terminals 1 0.34-1.5 mmÃÂ²flexible with cable end || screw clamp terminals 2 0.34-1.5 mmÃÂ²flexible without cable end

Contact Amp Rating (Resistive) 10A

Contact Form 4NO

Contact Form - Relay (4) SPST-NO

Contact Material Silver Nickel

Contact Rating (AC) 10 A @ 120/240/480/600V

Contact Rating (DC) 2 A @ 125/250/600V

Contactor Application control circuit

Control Circuit Type DC standard

Control Circuit Voltage Limits operational 0.8...1.15 Uc 50ÃÂ°C) || drop-out 0.1...0.75 Uc 50ÃÂ°C)

Country of Origin (subject to change) France

Current Rating 10 A

DC Contact Rating - Relay 2.00A @ 125/250/600V

Depth 57 mm

Device Short Name CA3K

Electrical Connection Screw Clamp

Flame Retardance V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Heat Dissipation 3-3 W

Height 58 mm

Hold-In Power Consumption In W 3-3 W 20ÃÂ°C

Hz_ Not Applicable

Immunity To Microbreaks 2 ms

Input Voltage 24V DC

Inrush Power In W 3-3 W 20ÃÂ°C)

Insulation Resistance > 10 MOhm

Ip Degree Of Protection IP2X

IP Rating IP2X

Irms Rated Making Capacity 110 A IEC 60947

Item - Relay IEC Style Control Relay

Maximum Operating Rate 10000 cyc/h

Maximum Operating Temperature 122 Degrees F

Mechanical Durability 20 Mcycles

Mechanical Robustness vibrations contactor open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27

Minimum Operating Temperature -13 Degrees F

Minimum Switching Current 5 mA

Minimum Switching Voltage 17 V

Mounting Din Rail/Panel

Mounting - Relay DIN Rail, Surface

Mounting Style DIN Rail and Surface

Mounting Support plate || rail

Non Overlap Distance 0.5 mm

Number of Pins 10

Number of Pins - Relay 10

Operating Altitude 6561.68 ft (2000 m) without derating

Operating Time 10 ms coil de-energisation and NO opening || 30...40 ms coil energisation and NO closing

Overall Height 2.28 in

Overall Height - Relay 2.28 in

Package Quantity 1

Pole Contact Composition 4 NO

Power Consumption 3 W

Power Consumption - Relay 3.0 VA

Product Certifications CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Product Name TeSys CAK

Product Or Component Type control relay

Protective Treatment TC IEC 60068

Range TeSys

Relay Style IEC

Response Time 10 msec (Coil De-Energisation and NO Opening), 30 to 40 msec (Coil Energisation and NO Closing)

Standards CCC, CSA Certified, EAC, IEC, REACH, RoHS Compliant, UL Listed

Tightening Torque 1.3 N.m screw clamp terminals flat ÃÂ 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2

Utilisation Category AC-15 || DC-13

Weight 0.5 lb

Width 45 mm

[Ith] Conventional Free Air Thermal Current 10 A 50ÃÂ°C

[Uc] Control Circuit Voltage 24 V DC

[Ue] Rated Operational Voltage <= 690 V <= 400 Hz

[Ui] Rated Insulation Voltage 690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
