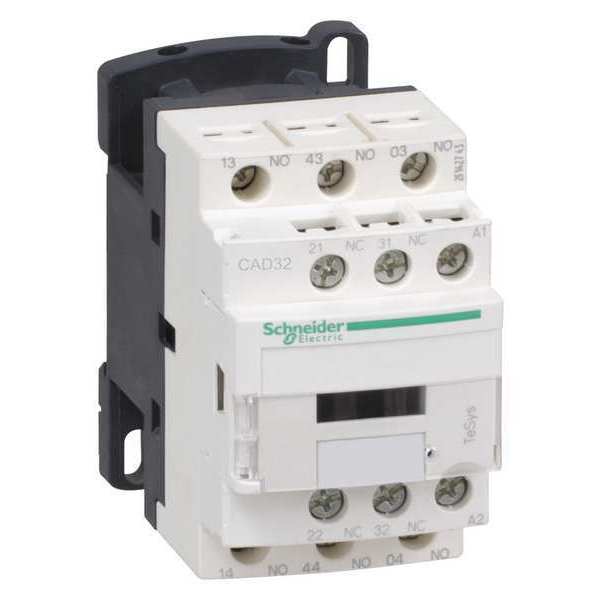

IEC Control Relay3NO/2NC240VAC10A

SKU
Brand Schneider Electric
Categories
Description IEC Control Relay, Current Rating 10 A, Contact Form 3NO/2NC, Contact Rating (DC) 2 A @ 125/250/600V, Coil Voltage 240V AC, Contact Rating (AC) 10 A @ 120/240/480/600V, Relay Style IEC, Electrical Connection Screw Clamp, Mounting Style DIN Rail and Surface, Power Consumption 8 VA, IP Rating IP2X, Compatible with Series TeSys D Control Relays, Maximum Operating Temperature 140 Degrees F, Frequency 50/60 Hz, Body Depth 3.31 in, Body Height 3.03 in, Body Width 1.77 in
graingerSKU: 2VLL1, mscSKU: , zoro_no: G0327223, mongo_id: 65bbe7ba3aaddbd5a90b0d3c

Web Price

$120.56 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120/240/480/600V

Ambient Air Temperature For Operation -40-60ÃÂ°C || 60-70ÃÂ°C with derating

Ambient Air Temperature For Storage -60-80ÃÂ°C

Associated Fuse Rating 10 A gG IEC 60947-5-1

Body Depth 3.31 in

Body Depth - Relay 3.31 in

Body Height 3.03 in

Body Height - Relay 3.03 in

Body Width 1.77 in

Body Width - Relay 1.77 in

Coil Rating 70VA Inrush, 8VA Sealed

Coil Voltage 240V AC

Coil Volts 240V AC

Compatible with Series TeSys D Control Relays

Connections - Terminals screw clamp terminals 1 1-4 mmÃÂ²flexible without cable end || screw clamp terminals 2 1-4 mmÃÂ²flexible without cable end || screw clamp terminals 1 1-4 mmÃÂ²flexible with cable end || screw clamp terminals 2 1-2.5 mmÃÂ²flexible with cable end || screw clamp terminals 1 1-4 mmÃÂ²solid without cable end || screw clamp terminals 2 1-4 mmÃÂ²solid without cable end

Contact Amp Rating (Resistive) 10A

Contact Form 3NO/2NC

Contact Form - Relay (2) SPST-NC, (3) SPST-NO

Contact Material Silver Nickel

Contact Rating (AC) 10 A @ 120/240/480/600V

Contact Rating (DC) 2 A @ 125/250/600V

Contactor Application control circuit

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage Limits 0.3...0.6 Uc -40-70ÃÂ°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60ÃÂ°C operational AC 50 Hz || 0.85...1.1 Uc -40-60ÃÂ°C operational AC 60 Hz || 1...1.1 Uc 60-70ÃÂ°C operational AC 50/60 Hz

Country of Origin (subject to change) Indonesia

Current Rating 10 A

DC Contact Rating - Relay 2.00A @ 125/250/600V

Depth 84 mm

Device Short Name CAD

Electrical Connection Screw Clamp

Frequency 50/60 Hz

Height 77 mm

Hold-In Power Consumption In Va 8-8 VA 50 Hz 20ÃÂ°C)

Hz - Electrical 50 Hz, 60 Hz

Hz_ 50/60

Input Voltage 240V AC

Inrush Power In Va 70-70 VA 50 Hz 20ÃÂ°C)

Insulation Resistance > 10 MOhm

Ip Degree Of Protection IP2X front face VDE 0106

IP Rating IP2X

Irms Rated Making Capacity 140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1

Item - Relay IEC Style Control Relay

Maximum Operating Rate 180 cyc/mn

Maximum Operating Temperature 140 Degrees F

Mechanical Durability 30 Mcycles

Mechanical Robustness shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 5 mA

Minimum Switching Voltage 17 V

Mounting Din Rail/Panel

Mounting - Relay DIN Rail, Surface

Mounting Style DIN Rail and Surface

Mounting Support rail || plate

Non-Overlap Time 1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact

Number of Pins 12

Number of Pins - Relay 12

Operating Altitude 0...9842.52 ft (0...3000 m)

Operating Time 12...22 ms coil energisation and NO closing || 4...12 ms coil de-energisation and NO opening || 4...19 ms coil energisation and NC opening || 6...17 ms coil de-energisation and NC closing

Overall Height 3.03 in

Overall Height - Relay 3.03 in

Package Quantity 1

Pole Contact Composition 3 NO + 2 NC

Power Consumption 8 VA

Power Consumption - Relay 8.0 VA

Product Certifications CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Product Name TeSys CAD

Product Or Component Type control relay

Protective Treatment TH IEC 60068

Range TeSys || TeSys Deca

Relay Style IEC

Response Time 12 to 22 msec (Coil Energisation and NO Closing), 4 to 12 msec (Coil De-Energisation and NO Opening), 4 to 19 msec (Coil Energisation and NC Opening), 6 to 17 msec (Coil De-Energisation and NC Closing)

Standards CSA Certified, EAC, IEC, RoHS Compliant, UKCA, UL Listed

Tightening Torque 1.2 N.m screw clamp terminals Philips No 2 || 1.2 N.m screw clamp terminals flat ÃÂ 6 mm || 1.2 N.m screw clamp terminals pozidriv No 2

Utilisation Category AC-14 || DC-13 || AC-15

Weight 1.28 lb

Width 45 mm

[Icw] Rated Short-Time Withstand Current 100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms

[Ith] Conventional Free Air Thermal Current 10 A 60ÃÂ°C

[Uc] Control Circuit Voltage 240 V AC 50/60 Hz

[Ue] Rated Operational Voltage <= 690 V AC 25...400 Hz

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947

[Ui] Rated Insulation Voltage 600 V UL || 600 V CSA || 690 V IEC 60947-5-1
