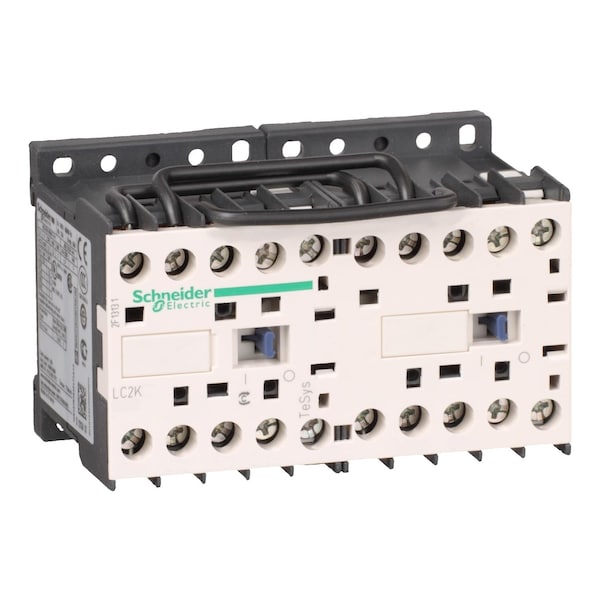

IEC Magnetic Contactor, 3 Poles, 110 V AC, 12 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor
graingerSKU: , mscSKU: , zoro_no: G0849427, mongo_id: 65bbe8c222d7a989a99136f4

Web Price

$259.99 / each

Qty

Product Details

Action Reversing

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NC

Coil Volts 110 V AC

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.2 to 0.75 Uc (at 50ÃÂ°C)

Country of Origin (subject to change) France

Depth 57 mm

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.3 Mcycles (20 A, AC-1, Less than 440 V); 1.3 Mcycles (12 A, AC-3, Less than 440 V); 1.3 Mcycles (12 A, AC-3e, Less than 440 V)

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Features Preassembled with Reversing Power Busbar

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Full Load Amps-Inductive 12 A

Full Load Amps-Resistive 20 A

Fuse Amps 25 A (Power Circuit), 10 A (Signalling Circuit)

Height 58 mm

Hold VA 4.5 VA

Impedance 3 mOhm

Impulse Withstand Voltage 8 kV

Inrush VA 30 VA

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Operating Watts 4 kW (at 480V AC 50/60 Hz), 4 kW (at 500 to 600V AC 50/60 Hz), 4 kW (at 660 to 690V AC 50/60 Hz), 3 kW (at 220 to 230V AC 50/60 Hz), 5.5 kW (at 380 to 415VAC 50/60 Hz), 5.5 kW (at 440V AC 50/60 Hz)

Mechanical Durability 5 Mcycles

Mounts On Plate, Rail

Net Weight 0.39 kg

Number of Poles 3

Operating Speed 3600 cycles per hr

Operating Time 10 to 20 ms (Coil Energisation and NO Closing), 10 to 20 ms (Coil De-Energisation and NO Opening)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V

Rated Insulation Volts 600/690V

Rated Making Capacity 144 A @ 690V (AC Power Circuit), 110 A (AC Signalling Circuit)

Rated Short-Time Withstand Current 115 A (at 50ÃÂ°C for 1 s Power Circuit), 105 A (at 50ÃÂ°C for 5 s Power Circuit), 100 A (at 50ÃÂ°C for 10 s Power Circuit), 75 A (at 50ÃÂ°C for 30 s Power Circuit), 55 A (at 50ÃÂ°C for 1 min Power Circuit), 50 A (at 50ÃÂ°C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 25 A (at 50ÃÂ°C for 15 min Power Circuit)

Rated Voltage 690V AC

Series LC2K

Shock Resistance 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)

Signalling Circuit Frequency Less Than 400 Hz

Standards EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit), 10 A (at 50ÃÂ°C Signalling Circuit)

Tightening Torque 0.8 to 1.3 Nm

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 1.3W

Width 90 mm
