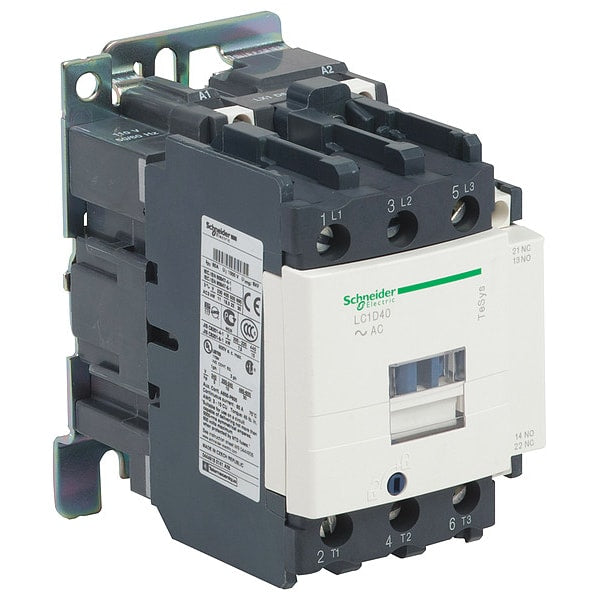

IEC Magnetic Contactor, 3 Poles, 110 V AC, 40 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor
graingerSKU: , mscSKU: , zoro_no: G0569348, mongo_id: 65bbe6ac3aaddbd5a90467ca

Web Price

$437.49 / each

Qty

Product Details

Application Motor Control, Resistive Load

Associated Fuse Rating 10 A gG for control circuit conforming to IEC 60947-5-1; 80 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 80 A gG at Less than or Equal to 690 V coordination type 2 for power circuit

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1

Climatic Withstand IACS E10 exposure to damp heat

Coil Technology Without built-in bidirectional peak limiting diode suppressor

Coil Volts 110 V AC

Connections - Terminals Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: rigid; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: rigid; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: screw terminals 1 0.00 to 0.04 inÃÂ² (2.5 to 25 mmÃÂ²) - cable stiffness: rigid; Power circuit: screw terminals 2 0.00 to 0.02 inÃÂ² (2.5 to 16 mmÃÂ²) - cable stiffness: rigid; Power circuit: screw terminals 1 0.00 to 0.04 inÃÂ² (2.5 to 25 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: screw terminals 2 0.00 to 0.02 inÃÂ² (2.5 to 16 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: screw terminals 1 0.00 to 0.04 inÃÂ² (2.5 to 25 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: screw terminals 2 0.00 to 0.02 inÃÂ² (2.5 to 10 mmÃÂ²) - cable stiffness: flexible with cable end

Contactor Application Motor control; Resistive load

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage 110 V AC 50/60 Hz

Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70ÃÂ°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60ÃÂ°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60ÃÂ°C 60 Hz), 1 to 1.1 Uc (at 60 to 70ÃÂ°C 50/60 Hz)

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C)) for control circuit; 60 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit

Country of Origin (subject to change) Czechia

Depth 119 mm

Electrical Connection Screw Clamp Terminals

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free

Features Without Built-In Bi-Directional Peak Limiting Diode Suppressor

Fire Rating UL 94 V1

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Full Load Amps-Inductive 40 A

Full Load Amps-Resistive 60 A

Fuse Amps 10 A (Control Circuit), 80 A (Type 1 and 2 Power Circuit)

Heat Dissipation 4 to 5 W at 50/60 Hz for control circuit

Height 127 mm

Hold VA 13 VA (at 60 Hz 20ÃÂ°C), 15 VA (at 50 Hz 20ÃÂ°C)

Hold-In Power Consumption in VA 13 VA 60 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C)); 15 VA 50 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C))

HP @ 1 Phase - 240V 5 hp

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 10 hp

HP @ 3 Phase - 480V 30 hp

HP @ 3 Phase - 575V 30 hp

Impulse Withstand Voltage 8 kV

Includes Protective Cover Yes

Inrush Power in VA 140 VA cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C)); 160 VA cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 140 VA (at 20ÃÂ°C), 160 VA (at 20ÃÂ°C)

Insulation Resistance Greater than 10 MOhm for control circuit

Insulation Resistance Range Greater Than 10 Mohms (Control Circuit)

IP Degree Of Protection IP2X IEC 60529; IP2X VDE 0106

IP Rating IP2X

IRMS Rated Making Capacity 800 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for control circuit conforming to IEC 60947-5-1

Max. Operating Watts 18.5 kW (at 380 to 400V AC 50 Hz AC-3), 22 kW (at 500V AC 50 Hz AC-3), 30 kW (at 660 to 690V AC 50 Hz) AC-3), 22 kW (at 1000V AC 50 Hz AC-3), 22 kW (at 415V AC 50 Hz AC-3), 22 kW (at 440V AC 50 Hz) AC-3), 11 kW (at 220 to 230V AC 50 Hz AC-3), 9 kW (at 400V AC 50 Hz AC-4), 18.5 kW (at 380 to 400V AC 50 Hz AC-3e), 22 kW (at 500V AC 50 Hz AC-3e), 30 kW (at 660 to 690V AC 50 Hz AC-3e), 22 kW(at 1000V AC 50 Hz AC-3e), 22 kW(at 415V AC 50 Hz AC-3e), 22 kW (at 440V AC 50 Hz AC-3e), 11 kW(at 220 to 230V AC 50 Hz AC-3e)

Max. Temperature 850ÃÂ°C

Maximum Horse Power Rating 3 hp at 115 V AC 60 Hz for 1 phase motors; 5 hp at 230/240 V AC 60 Hz for 1 phase motors; 10 hp at 200/208 V AC 60 Hz for 3 phase motors; 10 hp at 230/240 V AC 60 Hz for 3 phase motors; 30 hp at 460/480 V AC 60 Hz for 3 phase motors; 30 hp at 575/600 V AC 60 Hz for 3 phase motors

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Mechanical Durability 6 Mcycles

Mechanical Robustness Shocks contactor opened 10 Gn for 11 ms); Shocks contactor closed 15 Gn for 11 ms); Vibrations contactor opened 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz)

Minimum Switching Current 5 mA for control circuit

Minimum Switching Voltage 17 V for control circuit

Motor Power KW 18.5 kW at 380 to 400 V AC 50 Hz (AC-3); 22 kW at 500 V AC 50 Hz (AC-3); 30 kW at 660 to 690 V AC 50 Hz (AC-3); 22 kW at 1000 V AC 50 Hz (AC-3); 22 kW at 415 V AC 50 Hz (AC-3); 22 kW at 440 V AC 50 Hz (AC-3); 11 kW at 220 to 230 V AC 50 Hz (AC-3); 9 kW at 400 V AC 50 Hz (AC-4); 18.5 kW at 380 to 400 V AC 50 Hz (AC-3e); 22 kW at 500 V AC 50 Hz (AC-3e); 30 kW at 660 to 690 V AC 50 Hz (AC-3e); 22 kW at 1000 V AC 50 Hz (AC-3e); 22 kW at 415 V AC 50 Hz (AC-3e); 22 kW at 440 V AC 50 Hz (AC-3e); 11 kW at 220 to 230 V AC 50 Hz (AC-3e)

Mounting Support Rail; Plate

Mounts On Plate, Rail

Net Weight 1.4 kg

Non-Overlap Time 1.5 ms

Number of Poles 3

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Operating Speed 3600 cycles per hr

Operating Time 4 to 19 ms (Opening), 12 to 26 ms (Closing)

Overvoltage Category CAT III

Package Quantity 1

Pole Contact Composition 3 NO

Poles Description 3P

Power Dissipation Per Pole 5.4 W AC-1; 2.4 W AC-3; 2.4 W AC-3e

Product Certifications CCC; CSA; GL; RINA; UL; DNV; LROS (Lloyds register of shipping); GOST; BV

Product Or Component Type Contactor

Protective Cover With

Rated Breaking Capacity 800 A @ 440V

Rated Impulse Withstand Voltage 8 kV IEC 60947

Rated Insulation Voltage Control circuit 600 V CSA; Control circuit 600 V UL; Power circuit 600 V CSA; Power circuit 600 V UL; Control circuit 690 V IEC 60947-1; Power circuit 690 V IEC 60947-1

Rated Insulation Volts 600/690V

Rated Making Capacity 800 A @ 440V (Power Circuit), 140 A (AC Control Circuit)

Rated Operational Current 40 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 60 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 40 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3e for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz

Rated Voltage 690V AC

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series LC1D

Shock Resistance 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)

Standards EN 60947-5-1, IEC 60947-5-1, EN 60947-4-1, UL 508, IEC 60947-4-1, CSA C22.2 No 14, CCC, CSA, GL, RINA, UL, DNV, LROS, GOST, BV

Switching Current 5 mA (Control Circuit)

Switching Voltage 17 V (Control Circuit)

Thermal Amperage 10 A (at 60ÃÂ°C Control Circuit), 60 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 5 Nm (Power Circuit)

Utilisation Category AC-3; AC-1; AC-4; AC-2; AC-3e

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 4 to 5W

Width 75 mm

Working Height Up to 9842.52 ft
