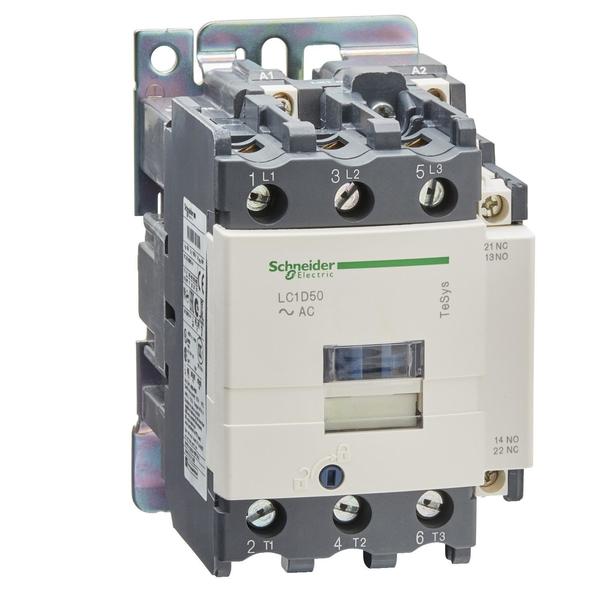

IEC Magnetic Contactor, 3 Poles, 110 V AC, 50 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor

Web Price

$471.24 / each

Qty

Product Details

Application Motor Control, Resistive Load

Associated Fuse Rating 100 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 100 A gG at Less than or Equal to 690 V coordination type 2 for power circuit conforming to IEC 60947-5-1; 10 A gG for control circuit conforming to IEC 60947-5-1

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contacts Type Mirror contact 1 NC IEC 60947-4-1; Mechanically linked 1 NO + 1 NC IEC 60947-5-1

Climatic Withstand IACS E10 exposure to damp heat

Coil Technology Built-in bidirectional peak limiting diode suppressor

Coil Volts 110 V AC

Connections - Terminals Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: rigid without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: screw terminals 1 0.00 to 0.04 inÃÂ² (2.5 to 25 mmÃÂ²) - cable stiffness: rigid; Power circuit: screw terminals 2 0.00 to 0.02 inÃÂ² (2.5 to 16 mmÃÂ²) - cable stiffness: rigid without cable end; Power circuit: screw terminals 1 0.00 to 0.04 inÃÂ² (2.5 to 25 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: screw terminals 2 0.00 to 0.02 inÃÂ² (2.5 to 16 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: screw terminals 1 0.00 to 0.04 inÃÂ² (2.5 to 25 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: screw terminals 2 0.00 to 0.02 inÃÂ² (2.5 to 10 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: rigid; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: rigid

Contactor Application Resistive load; Motor control

Control Circuit Type DC standard

Control Circuit Voltage 110 V DC

Control Circuit Voltage Limits Operational AC: 0.8 to 1.1 Uc (at -40 to 60ÃÂ°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60ÃÂ°C 60 Hz), 1 to 1.1 Uc (at 60 to 70ÃÂ°C 50/60 Hz); Operational DC: 0.75 to 1.25 Uc (at -40 to 60ÃÂ°C); Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70ÃÂ°C)

Conventional Free Air Thermal Current 80 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit; 10 A (at 140ÃÂ°F (60ÃÂ°C)) for control circuit

Country of Origin (subject to change) Czechia

Depth 176 mm

Electrical Connection Screw Clamp Terminals

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free

Features Built-In Bi-Directional Peak Limiting Diode Suppressor

Fire Rating UL 94 V1

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Full Load Amps-Inductive 50 A

Full Load Amps-Resistive 80 A

Fuse Amps 100 A (Type 1 and 2 Power Circuit), 10 A (Control Circuit)

Height 127 mm

Hold VA 15 VA

Hold-In Power Consumption in VA 15 VA 50 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C))

Hold-In Power Consumption in W 7.4 W 68ÃÂ°F (20ÃÂ°C)

HP @ 1 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 208V 15 hp

HP @ 3 Phase - 240V 15 hp

HP @ 3 Phase - 480V 40 hp

HP @ 3 Phase - 575V 40 hp

Impulse Withstand Voltage 8 kV

Includes Protective Cover Yes

Inrush Power in VA 160 VA cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C))

Inrush Power in W 19 W 68ÃÂ°F (20ÃÂ°C))

Inrush VA 160 VA

Insulation Resistance Greater than 10 MOhm for control circuit

Insulation Resistance Range Greater Than 10 Mohms (Control Circuit)

IP Degree Of Protection IP2X VDE 0106; IP2X IEC 60529

IP Rating IP2X

IRMS Rated Making Capacity 140 A AC for control circuit conforming to IEC 60947-5-1; 900 A at 440 V for power circuit conforming to IEC 60947; 250 A DC for control circuit conforming to IEC 60947-5-1

Max. Operating Watts 25 kW (at 415V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3), 30 kW (at 500V AC 50 Hz AC-3), 33 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 220 to 230V AC 50 Hz AC-3), 11 kW (at 400V AC 50 Hz AC-4), 30 kW (at 1000V AC 50 Hz AC-3), 22 kW (at 380 to 400V AC 50 Hz AC-3e), 25 kW (at 415V AC 50 Hz AC-3e), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 500V AC 50 Hz AC-3e), 33 kW (at 660 to 690V AC 50 Hz AC-3e), 15 kW (at 220 to 230V AC 50 Hz AC-3e), 30 kW (at 1000V AC 50 Hz AC-3e), 25 kW (at 415V AC 50 Hz), 22 kW (at 380 to 400V AC 50 Hz)

Max. Temperature 850ÃÂ°C

Maximum Horse Power Rating 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors; 15 hp at 200/208 V AC 60 Hz for 3 phase motors; 15 hp at 230/240 V AC 60 Hz for 3 phase motors; 40 hp at 460/480 V AC 60 Hz for 3 phase motors; 40 hp at 575/600 V AC 60 Hz for 3 phase motors; 3 hp at 115 V AC 60 Hz for 1 phase motors

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Mechanical Durability 10 Mcycles

Mechanical Robustness Shocks contactor closed 15 Gn for 11 ms); Vibrations contactor opened 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor opened 10 Gn for 11 ms)

Minimum Switching Current 5 mA for control circuit

Minimum Switching Voltage 17 V for control circuit

Motor Power KW 25 kW at 415 V AC 50 Hz (AC-3); 30 kW at 440 V AC 50 Hz (AC-3); 30 kW at 500 V AC 50 Hz (AC-3); 33 kW at 660 to 690 V AC 50 Hz (AC-3); 15 kW at 220 to 230 V AC 50 Hz (AC-3); 11 kW at 400 V AC 50 Hz (AC-4); 30 kW at 1000 V AC 50 Hz (AC-3); 22 kW at 380 to 400 V AC 50 Hz (AC-3e); 25 kW at 415 V AC 50 Hz (AC-3e); 30 kW at 440 V AC 50 Hz (AC-3e); 30 kW at 500 V AC 50 Hz (AC-3e); 33 kW at 660 to 690 V AC 50 Hz (AC-3e); 15 kW at 220 to 230 V AC 50 Hz (AC-3e); 30 kW at 1000 V AC 50 Hz (AC-3e); 25 kW at 415 V AC 50 Hz; 22 kW at 380 to 400 V AC 50 Hz

Mounting Support Rail; Rail

Mounts On Plate, Rail

Net Weight 2.185 kg

Non-Overlap Time 1.5 ms

Number of Poles 3

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Operating Speed 3600 cycles per hr

Operating Time 12 to 26 ms (Closing), 20 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Pole Contact Composition 3 NO

Poles Description 3P

Power Dissipation Per Pole 9.6 W AC-1; 3.7 W AC-3e; 3.7 W AC-3

Product Certifications GL; LROS (Lloyds register of shipping); RINA; CCC; BV; DNV; GOST; CSA; UKCA; GL

Product Or Component Type Contactor

Protective Cover With

Rated Breaking Capacity 900 A @ 440V

Rated Impulse Withstand Voltage 8 kV IEC 60947

Rated Insulation Voltage Control circuit 600 V UL; Power circuit 600 V CSA; Power circuit 600 V UL IEC 60947-1; Control circuit 690 V IEC 60947-1; Power circuit 690 V CSA IEC 60947-1; Control circuit 600 V CSA

Rated Insulation Volts 600/690V

Rated Making Capacity 140 A (AC Control Circuit), 900 A @ 440V (Power Circuit), 250 A (DC Control Circuit)

Rated Operational Current 80 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 50 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 50 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3 for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz

Rated Voltage 690V AC

Safety Reliability Level B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1; B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1

Series LC1D

Shock Resistance 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)

Standards CSA C22.2 No 14, IEC 60947-4-1, IEC 60947-5-1, EN 60947-5-1, EN 60947-4-1, GL, LROS, RINA, CCC, BV, DNV, GOST, CSA, UKCA

Switching Current 5 mA (Control Circuit)

Switching Voltage 17 V (Control Circuit)

Thermal Amperage 80 A (at 60ÃÂ°C Power Circuit), 10 A (at 60ÃÂ°C Control Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 5 Nm (Power Circuit)

Time Constant 34 ms

Utilisation Category AC-1; AC-4; AC-3; AC-3e; AC-1

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Width 85 mm
