Home / IEC Magnetic Contactor, 3 Poles, 110 V AC, 780 A

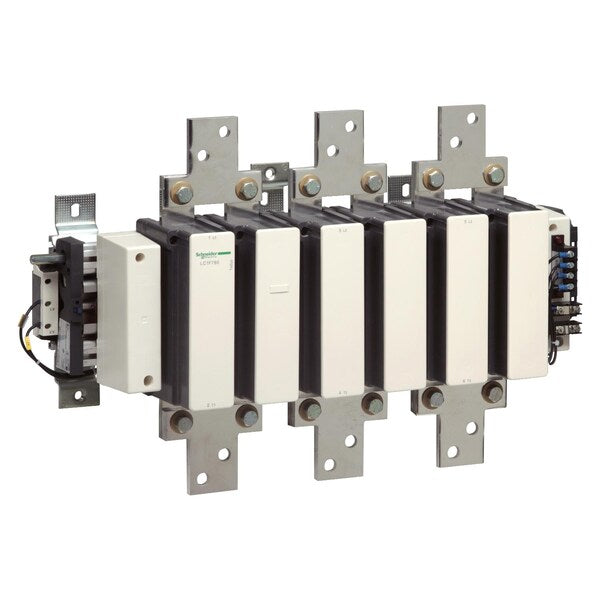

IEC Magnetic Contactor, 3 Poles, 110 V AC, 780 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor
graingerSKU: , mscSKU: , zoro_no: G3156380, mongo_id: 65bbe84d9a749db82278498e

Web Price

$10,061.24 / each

Qty

Product Details

Application Motor Control, Resistive Load

Aux. Contact Configuration 3NO

Coil Volts 110 V AC

Control Circuit Voltage Limits Operational: 0.85 to 1.1 Uc (at 55ÃÂ°C 40 to 400 Hz), Drop-Out: 0.2 to 0.4 Uc (at 55ÃÂ°C 40 to 400 Hz)

Country of Origin (subject to change) Czechia

Depth 255 mm

Electrical Connection Control Circuit: Screw Clamp Terminals, Power Circuit: Bar, Bolted Connection

Environmental Attributes Mercury Free

Full Load Amps-Inductive 780 A

Full Load Amps-Resistive 1600 A

Fuse Amps 800 A (aM Fuse), 1600 A (gG Fuse)

Height 434 mm

Hold VA 50 VA

Impedance 0.1 mOhm

Impulse Withstand Voltage 8 kV

Inrush VA 2100 VA

IP Rating IP20

Max. Operating Watts 450 kW (at 1000V AC 50/60 Hz AC-3), 400 kW (at 380 to 400V AC 50/60 Hz AC-3), 425 kW (at 415V AC 50/60 Hz AC-3), 425 kW (at 440V AC 50/60 Hz AC-3), 450 kW (at 500V AC 50/60 Hz AC-3), 475 kW (at 660 to 690V AC 50/60 Hz AC-3), 220 kW (at 220 to 230V AC 50/60 Hz AC-3), 110 kW (at 400V AC 50/60 Hz AC-4)

Mechanical Durability 5 Mcycles

Mounts On Plate

Net Weight 39.5 kg

Number of Poles 3

Operating Speed 600 cycles per hr

Operating Time 40 to 80 ms (Closing), 130 to 230 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 6240 A

Rated Insulation Volts 1000/1500V

Rated Short-Time Withstand Current 3000 A (40ÃÂ°C for 3 min), 6250 A (at 40ÃÂ°C for 10 s), 5600 A (at 40ÃÂ°C for 30 s), 4600 A (at 40ÃÂ°C for 1 min), 2200 A (at 40ÃÂ°C for 10 min)

Rated Voltage 1000V AC, 460V DC

Series LC1F

Standards EN 60947-1, JIS C8201-4-1, IEC 60947-4-1, IEC 60947-1, EN 60947-4-1, UL, RINA, ABS, CB, RMRoS, CSA, LROS, DNV, BV, UKCA, TH

Thermal Amperage 1600 A (at 40ÃÂ°C)

Tightening Torque 1.2 Nm (Control Circuit,) 58 Nm (Power Circuit)

Watts Loss 44W

Width 702 mm

Working Height 9842.52 ft
