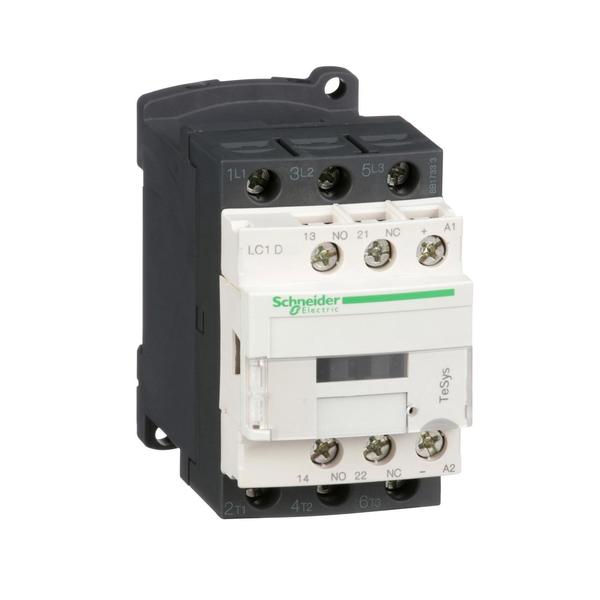

IEC Magnetic Contactor, 3 Poles, 110 V DC, 12 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor

Web Price

$204.99 / each

Qty

Product Details

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NO/1NC

Coil Volts 110 V DC

Control Circuit Voltage Limits Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70ÃÂ°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60ÃÂ°C), 1 to 1.25 Uc (at 60 to 70ÃÂ°C)

Country of Origin (subject to change) Indonesia

Depth 95 mm

Electrical Connection Screw Clamp Terminals

Electrical Durability 2 Mcycles (12 A, AC-3, Less than 440 V); 0.8 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (12 A, AC-3e, Less than 440 V)

Environmental Attributes Mercury Free, PVC Free, Pollution Degree 3

Features With Integral Suppression Device

Fire Rating UL 94 V1

Full Load Amps-Inductive 12 A

Full Load Amps-Resistive 25 A

Fuse Amps 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)

Height 77 mm

HP @ 1 Phase - 240V 2 hp

HP @ 3 Phase - 208V 3 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 7 1/2 hp

HP @ 3 Phase - 575V 10 hp

Impedance 2.5 mOhm

Impulse Withstand Voltage 6 kV

Includes Protective Cover Yes

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Operating Watts 3 kW (at 220 to 230V AC 50/60 Hz AC-3), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3), 7.5 kW (at 500V AC 50/60 Hz AC-3), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3), 3.7 kW (at 400V AC 50/60 Hz AC-4), 3 kW (at 220 to 230V AC 50/60 Hz AC-3e), 5.5 kW (at 380 to 400V AC 50/60 Hz AC-3e), 5.5 kW 415 to (at 440V AC 50/60 Hz AC-3e), 7.5 kW (at 500V AC 50/60 Hz AC-3e), 7.5 kW (at 660 to 690V AC 50/60 Hz AC-3e)

Max. Temperature 850ÃÂ°C

Mechanical Durability 30 Mcycles

Mounts On Plate, Rail

Net Weight 0.485 kg

Non-Overlap Time 1.5 ms

Number of Poles 3

Operating Speed 3600 cycles per hr

Operating Time 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 250 A @ 440V

Rated Insulation Volts 600/690V

Rated Making Capacity 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)

Rated Short-Time Withstand Current 105 A (at 40ÃÂ°C for 10 s Power Circuit), 210 A (at 40ÃÂ°C for 1 s Power Circuit), 30 A (at 40ÃÂ°C for 10 min Power Circuit), 61 A (at 40ÃÂ°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 690V AC, 300V DC

Series LC1D

Shock Resistance 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)

Signalling Circuit Frequency 25 to 400 Hz

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, CSA, BV, CCC, GOST, DNV, GL, LROS, UL, RINA, UKCA, THIEC 60068-2-30

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 25 A (at 60ÃÂ°C Power Circuit), 10 A (at 60ÃÂ°C Signalling Circuit)

Tightening Torque 1.7 Nm

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Width 45 mm

Working Height Up to 9842.52 ft
