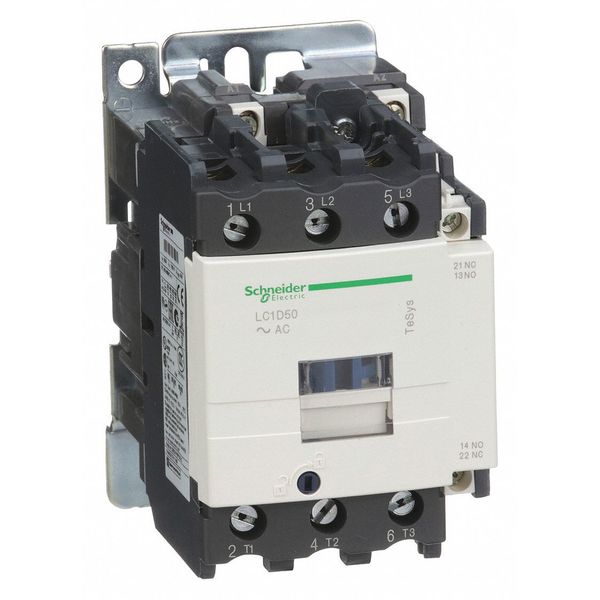

IEC Magnetic Contactor, 3 Poles, 120 V AC, 50 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 150 A, Full Load Current - Resistive 200 A, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Series TeSys, Number of Auxillary Contacts 3, Contactor Style IEC, Horsepower @ Three Phase - 240V AC 15 hp
graingerSKU: , mscSKU: 69530509, zoro_no: G0850258, mongo_id: 65bbe7a09a749db82274b1d9

Web Price

$506.24 / each

Qty

Product Details

Application Motor Control, Resistive Load

Associated Fuse Rating 10 A gG for control circuit conforming to IEC 60947-5-1; 100 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 100 A gG at Less than or Equal to 690 V coordination type 2 for power circuit

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contact Form 1NO/1NC

Auxiliary Contacts Type Mirror contact 1 NC IEC 60947-4-1; Mechanically linked 1 NO + 1 NC IEC 60947-5-1

Average Impedance 1.5 mOhm - Ith 80 A 50 Hz for power circuit

Climatic Withstand IACS E10 exposure to damp heat

Coil Technology Without built-in bidirectional peak limiting diode suppressor

Coil Voltage 120V AC

Coil Volts 120 V AC

Compatibility Code LC1D

Connections - Terminals Control circuit: screw clamp terminal 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminal 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminal 1 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminal 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminal 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminal 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: connector 1 0.00 to 0.05 inÃÂ² (2.5 to 35 mmÃÂ²) - cable stiffness: solid with cable end; Power circuit: connector 2 0.00 to 0.05 inÃÂ² (2.5 to 35 mmÃÂ²) - cable stiffness: solid with cable end; Power circuit: connector 1 0.00 to 0.05 inÃÂ² (2.5 to 35 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: connector 2 0.00 to 0.04 inÃÂ² (2.5 to 25 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: connector 1 0.00 to 0.05 inÃÂ² (2.5 to 35 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: connector 2 0.00 to 0.05 inÃÂ² (2.5 to 35 mmÃÂ²) - cable stiffness: flexible with cable end

Contactor Application Motor control; Resistive load

Contactor Style IEC

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage 120 V AC 50/60 Hz

Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at 60ÃÂ°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at 60ÃÂ°C 50 Hz), 0.85 to 1.1 Uc (at 60ÃÂ°C 60 Hz)

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C)) for control circuit; 80 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit

Country of Origin (subject to change) Czechia

Depth 119 mm

Electrical Connection Screw Clamp Terminals

Embedded Surge Suppressor No

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free

Features Without Built-In Bi-Directional Peak Limiting Diode Suppressor

Fire Rating UL 94 V1

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Frequency 50/60 Hz

Full Load Amps-Inductive 50 A

Full Load Amps-Resistive 80 A

Full Load Current - Inductive 150 A

Full Load Current - Resistive 200 A

Fuse Amps 10 A (Control Circuit), 100 A (Type 1 and 2 Power Circuit)

Heat Dissipation 4 to 5 W at 50/60 Hz for control circuit

Height 122 mm

Hold VA 13 VA (at 50 Hz 20ÃÂ°C), 15 VA (at 60 Hz 20ÃÂ°C)

Hold-In Power Consumption in VA 13 VA 50 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C)); 15 VA 60 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C))

Horsepower @ Single Phase - 120V AC 3 hp

Horsepower @ Single Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 208V AC 15 hp

Horsepower @ Three Phase - 240V AC 15 hp

Horsepower @ Three Phase - 480V AC 40 hp

Horsepower @ Three Phase - 600V AC 40 hp

HP @ 1 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 208V 15 hp

HP @ 3 Phase - 240V 15 hp

HP @ 3 Phase - 480V 40 hp

HP @ 3 Phase - 575V 40 hp

Impedance 1.5 mOhm

Impulse Withstand Voltage 6 kV

Includes Auxiliary Contacts Yes

Includes Protective Cover Yes

Inrush Power in VA 140 VA cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C)); 160 VA cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 140 VA (at 20ÃÂ°C), 160 VA (at 20ÃÂ°C)

Insulation Resistance Greater than 10 MOhm for control circuit

Insulation Resistance Range Greater Than 10 Mohms (Control Circuit)

IP Degree Of Protection IP2X IEC 60529; IP2X VDE 0106

IP Rating IP20

IRMS Rated Making Capacity 140 A AC for control circuit conforming to IEC 60947-5-1; 900 A at 440 V for power circuit conforming to IEC 60947

Max. Operating Watts 22 kW (at 380 to 400V AC 50/60 Hz AC-3), 25 kW (at 415V AC 50/60 Hz AC-3), 30 kW (at 440V AC 50/60 Hz AC-3), 30 kW (at 500V AC 50/60 Hz AC-3), 33 kW (at 660 to 690V AC 50/60 Hz AC-3), 15 kW (at 220 to 230V AC 50/60 Hz AC-3), 11 kW (at 400V AC 50/60 Hz AC-4)

Max. Temperature 850ÃÂ°C

Maximum Horse Power Rating 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to CSA; 3 hp at 115 V AC 60 Hz for 1 phase motors conforming to UL; 15 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to CSA; 15 hp at 200/208 V AC 60 Hz for 3 phase motors conforming to UL; 15 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to CSA; 15 hp at 230/240 V AC 60 Hz for 3 phase motors conforming to UL; 40 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to CSA; 40 hp at 460/480 V AC 60 Hz for 3 phase motors conforming to UL; 40 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to CSA; 40 hp at 575/600 V AC 60 Hz for 3 phase motors conforming to UL; 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to CSA; 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors conforming to UL

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 120V AC

Mechanical Durability 6 Mcycles

Mechanical Operating Durability 6,000,000

Mechanical Robustness Shocks contactor opened 10 Gn for 11 ms); Shocks contactor closed 15 Gn for 11 ms); Vibrations contactor opened 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz)

Minimum Operating Temperature 23 Degrees F

Minimum Switching Current 5 mA for control circuit

Minimum Switching Voltage 17 V for control circuit

Motor Power KW 22 kW at 380 to 400 V AC 50/60 Hz (AC-3); 25 kW at 415 V AC 50/60 Hz (AC-3); 30 kW at 440 V AC 50/60 Hz (AC-3); 30 kW at 500 V AC 50/60 Hz (AC-3); 33 kW at 660 to 690 V AC 50/60 Hz (AC-3); 15 kW at 220 to 230 V AC 50/60 Hz (AC-3); 11 kW at 400 V AC 50/60 Hz (AC-4)

Mounting Style DIN Rail

Mounting Support Plate; Rail

Mounts On Plate, Rail

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 1.4 kg

Non-Overlap Time 1.5 ms

Number of Auxillary Contacts 3

Number of Normally Closed Main Contacts 0

Number of Normally Open Main Contacts 1

Number of Poles 3

Operating Altitude 9842.52 ft (3000 m) without derating

Operating Speed 3600 cycles per hr

Operating Time 12 to 26 ms (Closing), 4 to 19 ms (Opening)

Overall Depth 4.72 in

Overall Height 4.8 in

Overall Width 2.17 in

Overvoltage Category CAT III

Package Quantity 1

Permissible Ambient Air Temperature Around The Device 23 to 140ÃÂ°F (-5 to 60ÃÂ°C); -40 to 158ÃÂ°F (-40 to 70ÃÂ°C) at Uc

Phase Three

Pole Contact Composition 3 NO

Poles Description 3P

Power Dissipation Per Pole 3.7 W AC-3; 9.6 W AC-1; 3.7 W AC-3e

Product Certifications GOST; LROS (pending); UL; CCC; RINA; CSA; BV; GL; DNV; UKCA

Product Or Component Type Contactor

Protective Cover With

Rated Breaking Capacity 900 A @ 440V

Rated Impulse Withstand Voltage 6 kV IEC 60947

Rated Insulation Voltage Control circuit 600 V CSA; Control circuit 600 V UL; Power circuit 600 V CSA; Power circuit 600 V UL; Control circuit 690 V IEC 60947-1; Power circuit 690 V IEC 60947-1

Rated Insulation Volts 600/690V

Rated Making Capacity 140 A (AC Control Circuit), 900 A @ 440V (Power Circuit)

Rated Operational Current 80 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 50 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 50 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3e for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz

Rated Voltage 690V AC

Reversing Capability Non-Reversing

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series TeSys Deca

Shock Resistance 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508

Switching Current 5 mA (Control Circuit)

Switching Voltage 17 V (Control Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 10 A (at 60ÃÂ°C Control Circuit), 80 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.2 Nm (Control Circuit), 5 Nm (Power Circuit)

Utilisation Category AC-3; AC-2; AC-4; AC-1; AC-3e

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 4 to 5W

Width 55 mm
