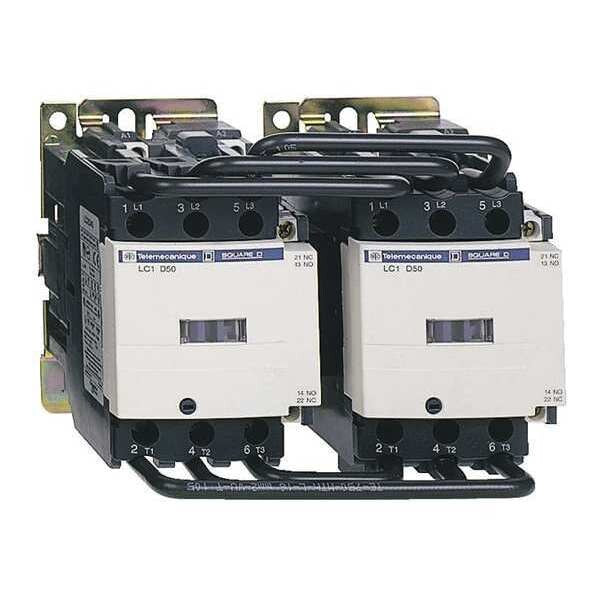

IEC Magnetic Contactor, 3 Poles, 120 V AC, 50 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 50 A, Full Load Current - Resistive 80 A, Reversing Capability Reversing, Overall Height 5.2 in, Overall Width 6.5 in, Terminal Connection Type Wire Leads, Series TeSys, Number of Auxillary Contacts 3, Contactor Style IEC, Maximum Voltage Rating 120V AC, Embedded Surge Suppressor No, Frequency 60 Hz
graingerSKU: , mscSKU: , zoro_no: G0568508, mongo_id: 65bbe8789a749db822792fe3

Web Price

$1,199.99 / each

Qty

Product Details

Action Reversing

Ambient Air Temperature For Operation 23 to 140ÃÂ°F (-5 to 60ÃÂ°C)

Ambient Air Temperature For Storage -76 to 176ÃÂ°F (-60 to 80ÃÂ°C)

Application Motor Control

Assembly Style Ready assembled

Associated Fuse Rating 10 A gG for control circuit conforming to IEC 60947-5-1; 100 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 100 A gG at Less than or Equal to 690 V coordination type 2 for power circuit

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contact Form 1NO/1NC

Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1

Average Impedance 80 A 50 Hz for power circuit

Coil Technology Without built-in bidirectional peak limiting diode suppressor

Coil Type Standard

Coil Voltage 120V AC

Coil Volts 120 V AC

Connections - Terminals Control circuit 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible with cable end; Control circuit 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible without cable end; Control circuit 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)solid without cable end; Control circuit 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²)flexible with cable end; Control circuit 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible without cable end; Control circuit 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)solid without cable end; Power circuit 1 0.00 to 0.05 inÃÂ² (1 to 35 mmÃÂ²)flexible with cable end; Power circuit 1 0.00 to 0.05 inÃÂ² (1 to 35 mmÃÂ²)flexible without cable end; Power circuit 1 0.00 to 0.05 inÃÂ² (1 to 35 mmÃÂ²)solid without cable end; Power circuit 2 0.00 to 0.04 inÃÂ² (1 to 25 mmÃÂ²)flexible with cable end; Power circuit 2 0.00 to 0.04 inÃÂ² (1 to 25 mmÃÂ²)flexible without cable end; Power circuit 2 0.00 to 0.04 inÃÂ² (1 to 25 mmÃÂ²)solid without cable end; Power circuit 2 0.00 to 0.05 inÃÂ² (1 to 35 mmÃÂ²)flexible with cable end; Power circuit 2 0.00 to 0.05 inÃÂ² (1 to 35 mmÃÂ²)flexible without cable end; Power circuit 2 0.00 to 0.05 inÃÂ² (1 to 35 mmÃÂ²)solid without cable end

Contactor Style IEC

Control Circuit Type AC

Control Circuit Voltage 120 V AC 60 Hz

Control Circuit Voltage Limits Drop-Out: 0.3 to 0.6 Uc (at 60ÃÂ°C 50/60 Hz); Operational: 0.8 to 1.1 Uc (at 60ÃÂ°C 50 Hz), 0.85 to 1.1 Uc (at 60ÃÂ°C 60 Hz)

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C)) for control circuit; 80 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit

Country of Origin (subject to change) Czechia

Depth 142 mm

Embedded Surge Suppressor No

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free

Features Without Built-In Bi-Directional Peak Limiting Diode Suppressor

Fire Rating UL 94 V1

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Frequency 60 Hz

Full Load Amps-Inductive 50 A

Full Load Current - Inductive 50 A

Full Load Current - Resistive 80 A

Fuse Amps 10 A (Control Circuit), 100 A (Type 1 and 2 Power Circuit)

Heat Dissipation 6 to 10 W at 50/60 Hz for control circuit

Height 132 mm

Hold VA 20 to 26 VA (at 50 Hz 20ÃÂ°C), 22 to 26 VA (at 60 Hz 20ÃÂ°C)

Hold-In Power Consumption in VA 20 VA 50 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C)); 22 VA 60 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C)); 26 VA 50 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C)); 26 VA 60 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C))

Impulse Withstand Voltage 6 kV

Includes Auxiliary Contacts Yes

Includes Protective Cover Yes

Inrush Power in VA 200 VA cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C)); 220 VA cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 200 to 220 VA

Insulation Resistance Greater than 10 MOhm for control circuit

Insulation Resistance Range Greater Than 10 Mohms (Control Circuit)

Interlocking Type Mechanical

IP Degree Of Protection IP2X IEC 60529; IP2X VDE 0106

IP Rating IP20

IRMS Rated Making Capacity 140 A AC for control circuit conforming to IEC 60947-5-1; 900 A at 440 V for power circuit conforming to IEC 60947

Max. Operating Watts 15 kW (at 220 to 240V AC 50/60 Hz), 22 kW (at 380 to 400V AC 50/60 Hz), 25 kW (at 415V AC 50/60 Hz), 30 kW (at 440V AC 50/60 Hz), 30 kW (at 500V AC 50/60 Hz), 33 kW (at 660 to 690V AC 50/60 Hz)

Max. Temperature 850ÃÂ°C

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 120V AC

Mechanical Durability 6 Mcycles

Mechanical Operating Durability 6,000,000

Minimum Operating Temperature 23 Degrees F

Minimum Switching Current 5 mA for control circuit

Minimum Switching Voltage 17 V for control circuit

Motor Power KW 15 kW 220 to 240 V AC 50/60 Hz; 22 kW 380 to 400 V AC 50/60 Hz; 25 kW 415 V AC 50/60 Hz; 30 kW 440 V AC 50/60 Hz; 30 kW 500 V AC 50/60 Hz; 33 kW 660 to 690 V AC 50/60 Hz

Mounting Support Plate; Rail

Mounts On Plate, Rail

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 2.4 kg

Non-Overlap Time 1.5 ms

Number of Auxillary Contacts 3

Number of Normally Closed Main Contacts 0

Number of Normally Open Main Contacts 1

Number of Poles 3

Operating Altitude 9842.52 ft (3000 m) without derating

Operating Speed 3600 cycles per hr

Operating Time 12 to 26 ms (Closing), 4 to 19 ms (Opening)

Overall Depth 5.59 in

Overall Height 5.2 in

Overall Width 6.5 in

Overvoltage Category CAT III

Package Quantity 1

Permissible Ambient Air Temperature Around The Device -40 to 158ÃÂ°F (-40 to 70ÃÂ°C) at Uc

Pole Contact Composition 3 NO

Poles Description 3P

Power Dissipation Per Pole 3.7 W AC-3 - Ith 80 A

Product Certifications GL; UL; RINA; GOST; CSA; LROS (Lloyds register of shipping); CCC; DNV; BV; UKCA

Product Or Component Type Reversing contactor

Protective Cover With

Protective Treatment TH 3)IEC 60068

Rated Breaking Capacity 900 A @ 440V

Rated Impulse Withstand Voltage 6 kV IEC 60947

Rated Insulation Voltage Control circuit 600 V CSA; Control circuit 600 V UL; Power circuit 600 V CSA; Power circuit 600 V UL; Control circuit 690 V IEC 60947-1; Power circuit 690 V IEC 60947-1

Rated Insulation Volts 600/690V

Rated Making Capacity 140 A (AC Control Circuit), 900 A @ 440V (Power Circuit)

Rated Operational Current Power circuit 50 A AC AC-3 140ÃÂ°F (60ÃÂ°C))

Rated Operational Voltage Power circuit Less than or Equal to 1000 V AC 25 to 400 Hz

Rated Voltage 1000V AC

Reversing Capability Reversing

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series TeSys Deca

Shock Resistance 10 G (Contactor Closed), 8 G (Contactor Open)

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508

Switching Current 5 mA (Control Circuit)

Switching Voltage 17 V (Control Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 10 A (at 60ÃÂ°C Control Circuit), 80 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)

Utilisation Category AC-2; AC-3; AC-4

Vibration Resistance 3 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 6 to 10W

Width 165 mm
