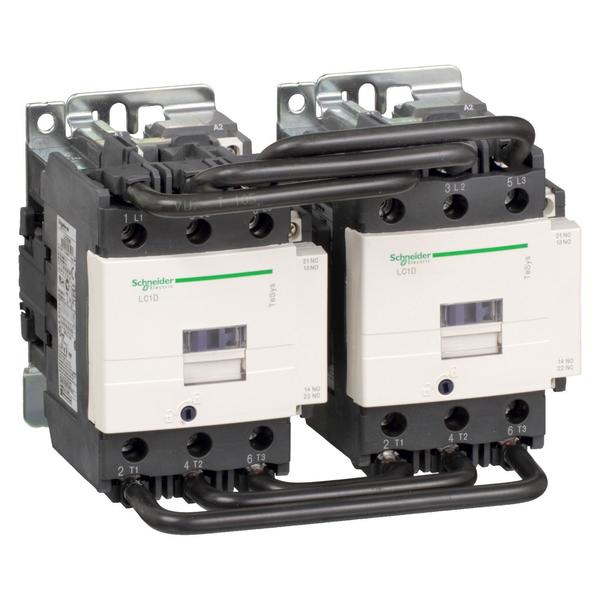

IEC Magnetic Contactor, 3 Poles, 120 V AC, 80 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor

Web Price

$1,471.24 / each

Qty

Product Details

Action Reversing

Ambient Air Temperature For Operation -40 to 140ÃÂ°F (-40 to 60ÃÂ°C); 140 to 158ÃÂ°F (60 to 70ÃÂ°C) with derating

Ambient Air Temperature For Storage -76 to 176ÃÂ°F (-60 to 80ÃÂ°C)

Application Motor Control, Resistive Load

Associated Fuse Rating 10 A gG for signalling circuit conforming to IEC 60947-5-1; 200 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 160 A gG at Less than or Equal to 690 V coordination type 2 for power circuit

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1

Average Impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit

Climatic Withstand IACS E10

Coil Technology Without built-in suppressor module

Coil Volts 120 V AC

Connections - Terminals Control circuit screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)solid; Control circuit screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)solid; Control circuit screw clamp terminals 1 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²)flexible with cable end; Power circuit connector 1 0.01 to 0.08 inÃÂ² (4 to 50 mmÃÂ²)flexible without cable end; Power circuit connector 2 0.01 to 0.04 inÃÂ² (4 to 25 mmÃÂ²)flexible without cable end; Power circuit connector 1 0.01 to 0.08 inÃÂ² (4 to 50 mmÃÂ²)flexible with cable end; Power circuit connector 2 0.01 to 0.02 inÃÂ² (4 to 16 mmÃÂ²)flexible with cable end; Power circuit connector 1 0.01 to 0.08 inÃÂ² (4 to 50 mmÃÂ²)solid; Power circuit connector 2 0.01 to 0.04 inÃÂ² (4 to 25 mmÃÂ²)solid

Contactor Application Resistive load; Motor control

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage 120 V AC 50/60 Hz

Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70ÃÂ°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (-40 to 55ÃÂ°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 55ÃÂ°C 60 Hz), 1 to 1.1 Uc (at 55 to 70ÃÂ°C 50/60 Hz)

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C)) for signalling circuit; 125 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit

Country of Origin (subject to change) Czechia

Depth 158 mm

Device Presentation Preassembled with reversing power busbar

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.8 Mcycles (125 A, AC-1, Less than 440 V); 1.5 Mcycles (80 A, AC-3, Less than 440 V); 1.5 Mcycles (80 A, AC-3e, Less than 440 V)

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Without Built-In Suppressor Module; Preassembled with Reversing Power Busbar

Fire Rating UL 94 V1

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Front Cover With

Full Load Amps-Inductive 80 A

Full Load Amps-Resistive 125 A

Fuse Amps 10 A (Signalling Circuit), 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)

Heat Dissipation 6 to 10 W 50/60 Hz

Height 127 mm

Hold VA 26 VA

Hold-In Power Consumption in VA 26 VA 60 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C)); 26 VA 50 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C))

HP @ 1 Phase - 240V 15 hp

HP @ 3 Phase - 208V 20 hp

HP @ 3 Phase - 240V 25 hp

HP @ 3 Phase - 480V 60 hp

HP @ 3 Phase - 575V 60 hp

Impedance 0.8 mOhm

Impulse Withstand Voltage 8 kV

Includes Protective Cover Yes

Inrush Power in VA 245 VA 60 Hz cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C)); 245 VA 50 Hz cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 245 VA

Insulation Resistance Greater than 10 MOhm for signalling circuit

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

Interlocking Type Mechanical

IP Degree Of Protection IP20 front face IEC 60529

IP Rating IP20

IRMS Rated Making Capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 1100 A at 440 V for power circuit conforming to IEC 60947

Max. Operating Watts 22 kW (at 220 to 230V AC 50 Hz), 37 kW (at 380 to 400V AC 50 Hz), 45 kW (at 415 to 440V AC 50 Hz), 55 kW (at 500V AC 50 Hz), 45 kW (at 660 to 690V AC 50 Hz)

Max. Temperature 850ÃÂ°C

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Mechanical Durability 4 Mcycles

Mechanical Robustness Vibrations contactor open2 Gn, 5 to 300 Hz; Shocks contactor open8 Gn for 11 ms; Vibrations contactor closed3 Gn, 5 to 300 Hz; Shocks contactor closed10 Gn for 11 ms

Minimum Switching Current 5 mA for signalling circuit

Minimum Switching Voltage 17 V for signalling circuit

Motor Power HP 20 hp at 200/208 V AC 60 Hz for 3 phase motors; 7.5 hp at 115 V AC 60 Hz for 1 phase motors; 15 hp at 230/240 V AC 60 Hz for 1 phase motors; 25 hp at 230/240 V AC 60 Hz for 3 phase motors; 60 hp at 460/480 V AC 60 Hz for 3 phase motors; 60 hp at 575/600 V AC 60 Hz for 3 phase motors

Motor Power KW 22 kW at 220 to 230 V AC 50 Hz; 37 kW at 380 to 400 V AC 50 Hz; 45 kW at 415 to 440 V AC 50 Hz; 55 kW at 500 V AC 50 Hz; 45 kW at 660 to 690 V AC 50 Hz

Mounting Support Plate; Rail

Mounts On Plate, Rail

Net Weight 3.2 kg

Non-Overlap Time 1.5 ms

Number of Poles 3

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Operating Speed 3600 cycles per hr

Operating Time 20 to 35 ms (Closing), 6 to 20 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Poles Description 3P

Pollution Degree 3

Power Dissipation Per Pole 12.5 W AC-1; 5.1 W AC-3; 5.1 W AC-3e

Power Pole Contact Composition 3 NO

Product Certifications UL; CSA; RINA; GOST; CCC; DNV; LROS (Lloyds register of shipping); GL; BV; UKCA

Product Name TeSys Deca

Product Or Component Type Reversing contactor

Protective Treatment TH IEC 60068-2-30

Rated Breaking Capacity 1100 A @ 440V

Rated Impulse Withstand Voltage 8 kV IEC 60947

Rated Insulation Voltage Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL; Power circuit 1000 V IEC 60947-4-1

Rated Insulation Volts 600/1000V (Power Circuit), 600/690V (Signalling Circuit)

Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1100 A @ 440V (Power Circuit)

Rated Operational Current 125 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 80 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 80 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3e for power circuit; 55 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 400 V AC AC-4 for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC

Rated Short Time Withstand Current 135 A 104ÃÂ°F (40ÃÂ°C) - 10 min for power circuit; 320 A 104ÃÂ°F (40ÃÂ°C) - 1 min for power circuit; 640 A 104ÃÂ°F (40ÃÂ°C) - 10 s for power circuit; 990 A 104ÃÂ°F (40ÃÂ°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit

Rated Short-Time Withstand Current 135 A (at 40ÃÂ°C for 10 min Power Circuit), 320 A (at 40ÃÂ°C for 1 min Power Circuit), 640 A (at 40ÃÂ°C for 10 s Power Circuit), 990 A (at 40ÃÂ°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 690V AC, 300V DC

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series LC2D

Shock Resistance 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)

Signalling Circuit Frequency 25 to 400 Hz

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL, CSA, RINA, GOST, CCC, DNV, LROS, GL, BV, UKCA, TH IEC 60068-2-30

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 125 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)

Utilisation Category AC-1; AC-3; AC-3e; AC-4

Vibration Resistance 3 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 6 to 10W

Width 182 mm
