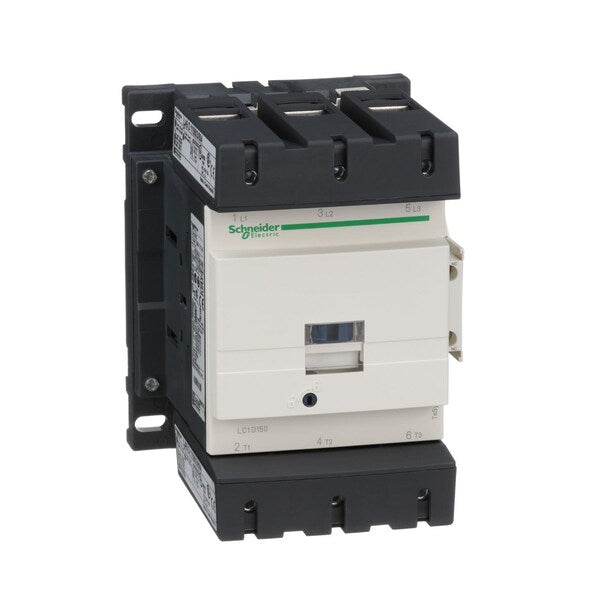

IEC Magnetic Contactor, 3 Poles, 220 V AC, 150 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor
graingerSKU: , mscSKU: , zoro_no: G0848499, mongo_id: 65bbe8789a749db822792fdb

Web Price

$1,138.74 / each

Qty

Product Details

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NO/1NC

Coil Volts 220 V AC

Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.5 Uc (at -40 to 70ÃÂ°C 50/60 Hz); Operational AC: 0.8 to 1.15 Uc (at -40-55ÃÂ°C 50/60 Hz), 1 to 1.15 Uc (at 55-70ÃÂ°C 50/60 Hz)

Country of Origin (subject to change) Czechia

Depth 136 mm

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.85 Mcycles (150 A, AC-3, Less than 440 V); 1 Mcycles (200 A, AC-1, Less than 440 V); 0.85 Mcycles (150 A, AC-3e, Less than 440 V)

Environmental Attributes Mercury Free, PVC Free, Pollution Degree 3

Features Built-In Bi-Directional Peak Limiting Diode Suppressor

Fire Rating UL 94 V1

Full Load Amps-Inductive 150 A

Full Load Amps-Resistive 200 A

Fuse Amps 10 A (Signalling Circuit), 315 A (Type 1 Power Circuit), 250 A (Type 2 Power Circuit)

Height 158 mm

Hold VA 2 to 18 VA

HP @ 3 Phase - 208V 40 hp

HP @ 3 Phase - 240V 50 hp

HP @ 3 Phase - 480V 100 hp

HP @ 3 Phase - 575V 125 hp

Impedance 0.6 mOhm

Impulse Withstand Voltage 8 kV

Includes Protective Cover Yes

Inrush VA 280 to 350 VA

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Operating Watts 40 kW (at 220 to 230V AC 50/60 Hz AC-3), 75 kW (at 380 to 400V AC 50/60 Hz AC-3), 80 kW 415 to (at 440V AC 50/60 Hz AC-3), 90 kW (at 500V AC 50/60 Hz AC-3), 100 kW (at 660 to 690V AC 50/60 Hz AC-3), 75 kW (at 1000V AC 50/60 Hz AC-3), 22 kW (at 400V AC 50/60 Hz AC-4), 40 kW (at 220 to 230V AC 50/60 Hz AC-3e), 75 kW (at 380 to 400V AC 50/60 Hz AC-3e), 80 kW (at 415 to 440V AC 50/60 Hz AC-3e), 90 kW (at 500V AC 50/60 Hz AC-3e), 100 kW (at 660 to 690V AC 50/60 Hz AC-3e), 75 kW (at 1000V AC 50/60 Hz AC-3e)

Max. Temperature 850ÃÂ°C

Mechanical Durability 8 Mcycles

Mounts On Plate, Rail

Net Weight 2.5 kg

Non-Overlap Time 1.5 ms

Number of Poles 3

Operating Speed 1200 cycles per hr

Operating Time 20 to 35 ms (Closing), 40 to 75 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 1400 A @ 440V

Rated Insulation Volts 600/1000V (Power Circuit), 600/690V (Signalling Circuit)

Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1660 A @ 440V (Power Circuit)

Rated Short-Time Withstand Current 250 A (at 40ÃÂ°C for 10 min Power Circuit), 580 A (at 40ÃÂ°C for 1 min Power Circuit), 1200 A (at 40ÃÂ°C for 10 s Power Circuit), 1400 A (at 40ÃÂ°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 1000V AC, 300V DC

Series LC1D

Shock Resistance 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)

Signalling Circuit Frequency 25 to 400 Hz

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, CCC, LROS, GL, GOST, RINA, CSA, BV, UL, DNV, UKCA, CE, THIEC 60068-2-30

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 200 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 3 to 4.5W

Width 120 mm
