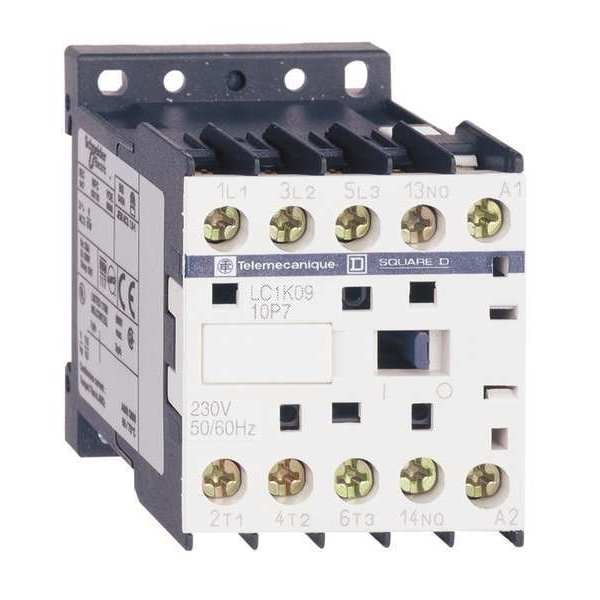

IEC Magnetic Contactor, 3 Poles, 24 V AC, 12 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor
graingerSKU: , mscSKU: , zoro_no: G0848675, mongo_id: 65bbe8e822d7a989a9921de8

Web Price

$110.99 / each

Qty

Product Details

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NC

Coil Volts 24 V AC

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.2 to 0.75 Uc (at 50ÃÂ°C)

Country of Origin (subject to change) France

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Full Load Amps-Inductive 12 A

Full Load Amps-Resistive 20 A

Fuse Amps 25 A (Power Circuit), 10 A (Signalling Circuit)

Hold VA 4.5 VA

Impedance 3 mOhm

Inrush VA 30 VA

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

Max. Operating Watts 4 kW (at 480V AC 50/60 Hz AC-3), 4 kW (at 500 to 600V AC 50/60 Hz AC-3), 4 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 3 kW (at 220 to 230V AC 50/60 Hz AC-3), 5.5 kW 380 to (at 415V AC 50/60 Hz AC-3), 5.5 kW (at 440V AC 50/60 Hz AC-3), 4 kW (at 480V AC 50/60 Hz AC-3e), 4 kW (at 500 to 600V AC 50/60 Hz AC-3e), 4 kW (at 660 to 690V AC 50/60 Hz AC-3e), 3 kW (at 220 to 230V AC 50/60 Hz AC-3e), 5.5 kW (at 380 to 415V AC 50/60 Hz AC-3e), 5.5 kW (at 440V AC 50/60 Hz AC-3e)

Number of Poles 3

Operating Speed 3600 cycles per hr

Operating Time 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 110 A @ 440V, 80 A @ 500V, 70 A @ 660 to 690V

Rated Making Capacity 110 A (AC Signalling Circuit), 144 A (AC Power Circuit)

Series LC1K

Shock Resistance 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)

Signalling Circuit Frequency Less Than 400 Hz

Standards EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit), 10 A (at 50ÃÂ°C Signalling Circuit)

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 1.3W
