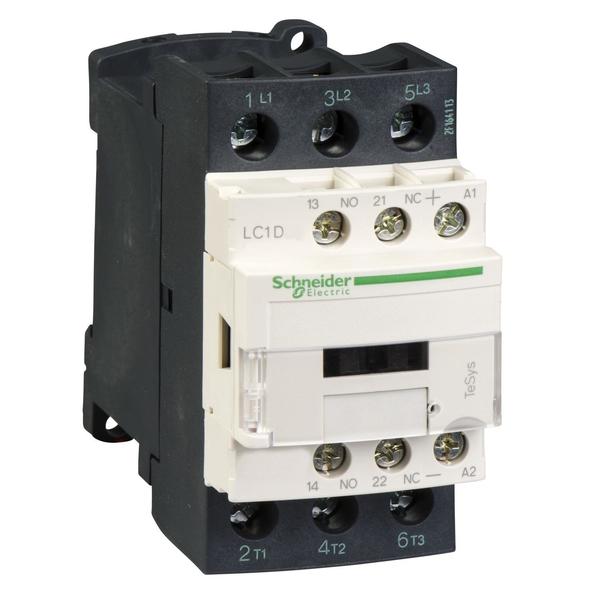

IEC Magnetic Contactor, 3 Poles, 24 V DC, 25 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor

Web Price

$303.74 / each

Qty

Product Details

Application Motor Control, Resistive Load

Associated Fuse Rating 10 A gG for signalling circuit conforming to IEC 60947-5-1; 63 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 40 A gG at Less than or Equal to 690 V coordination type 2 for power circuit

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1

Average Impedance 2 mOhm - Ith 40 A 50 Hz for power circuit

Climatic Withstand IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat

Coil Technology Built-in bidirectional peak limiting diode suppressor

Coil Volts 24 V DC

Connections - Terminals Control circuit: lugs-ring terminals - external diameter: 0.31 in (8 mm); Power circuit: lugs-ring terminals - external diameter: 0.39 in (10 mm)

Contact Compatibility M4

Contactor Application Motor control; Resistive load

Control Circuit Type DC standard

Control Circuit Voltage Limits Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 70ÃÂ°C), Operational DC: 0.7 to 1.25 Uc (at -40 to 60ÃÂ°C), 1 to 1.25 Uc (at 60 to 70ÃÂ°C)

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C)) for signalling circuit; 40 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit

Country of Origin (subject to change) Indonesia

Depth 101 mm

Electrical Connection Lugs-Ring Terminals

Electrical Durability 1.65 Mcycles (25 A, AC-3, Less than 440 V); 1.4 Mcycles (40 A, AC-1, Less than 440 V); 1.65 Mcycles (25 A, AC-3e, Less than 440 V)

Environmental Attributes Mercury Free, PVC Free, Pollution Degree 3

Features Built-In Bi-Directional Peak Limiting Diode Suppressor

Fire Rating UL 94 V1

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Full Load Amps-Inductive 25 A

Full Load Amps-Resistive 40 A

Fuse Amps 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)

Height 85 mm

Hold-In Power Consumption in W 5.4 W 68ÃÂ°F (20ÃÂ°C)

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 208V 7 1/2 hp

HP @ 3 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 480V 15 hp

HP @ 3 Phase - 575V 20 hp

Impedance 2 mOhm

Impulse Withstand Voltage 6 kV

Includes Protective Cover Yes

Inrush Power in W 5.4 W 68ÃÂ°F (20ÃÂ°C))

Insulation Resistance Greater than 10 MOhm for signalling circuit

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Degree Of Protection IP20 front face IEC 60529

IP Rating IP20

IRMS Rated Making Capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 450 A at 440 V for power circuit conforming to IEC 60947

Max. Operating Watts 5.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 11 kW (at 380 to 400V AC 50/60 Hz AC-3), 11 kW (at 415 to 440V AC 50/60 Hz AC-3), 15 kW (at 500V AC 50/60 Hz AC-3), 15 kW (at 660 to 690V AC 50/60 Hz AC-3), 5.5 kW (at 400V AC 50/60 Hz AC-4), 5.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 11 kW (at 380 to 400V AC 50/60 Hz AC-3e), 11 kW (at 415 to 440V AC 50/60 Hz AC-3e), 15 kW (at 500V AC 50/60 Hz AC-3e), 15 kW (at 660 to 690V AC 50/60 Hz AC-3e)

Max. Temperature 850ÃÂ°C

Maximum Horse Power Rating 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors; 2 hp at 115 V AC 50/60 Hz for 1 phase motors; 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors; 15 hp at 460/480 V AC 50/60 Hz for 3 phase motors; 20 hp at 575/600 V AC 50/60 Hz for 3 phase motors; 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Mechanical Durability 30 Mcycles

Mechanical Robustness Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 8 Gn for 11 ms)

Minimum Switching Current 5 mA for signalling circuit

Minimum Switching Voltage 17 V for signalling circuit

Motor Power KW 5.5 kW at 220 to 230 V AC 50/60 Hz (AC-3); 11 kW at 380 to 400 V AC 50/60 Hz (AC-3); 11 kW at 415 to 440 V AC 50/60 Hz (AC-3); 15 kW at 500 V AC 50/60 Hz (AC-3); 15 kW at 660 to 690 V AC 50/60 Hz (AC-3); 5.5 kW at 400 V AC 50/60 Hz (AC-4); 5.5 kW at 220 to 230 V AC 50/60 Hz (AC-3e); 11 kW at 380 to 400 V AC 50/60 Hz (AC-3e); 11 kW at 415 to 440 V AC 50/60 Hz (AC-3e); 15 kW at 500 V AC 50/60 Hz (AC-3e); 15 kW at 660 to 690 V AC 50/60 Hz (AC-3e)

Mounting Support Rail; Plate

Mounts On Plate, Rail

Net Weight 0.53 kg

Non-Overlap Time 1.5 ms

Number of Poles 3

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Operating Speed 3600 cycles per hr

Operating Time 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Permissible Ambient Air Temperature Around The Device -40 to 140ÃÂ°F (-40 to 60ÃÂ°C); 140 to 158ÃÂ°F (60 to 70ÃÂ°C) with derating

Pole Contact Composition 3 NO

Poles Description 3P

Pollution Degree 3

Power Dissipation Per Pole 3.2 W AC-1; 1.25 W AC-3; 1.25 W AC-3e

Product Certifications BV; UL; DNV; CSA; GL; GOST; LROS (Lloyds register of shipping); CCC; RINA; UKCA

Product Or Component Type Contactor

Protective Cover With

Protective Treatment THIEC 60068-2-30

Rated Breaking Capacity 450 A @ 440V

Rated Impulse Withstand Voltage 6 kV IEC 60947

Rated Insulation Voltage Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL

Rated Insulation Volts 600/690V

Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)

Rated Operational Current 25 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 40 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit; 25 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3e for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC

Rated Short Time Withstand Current 240 A 104ÃÂ°F (40ÃÂ°C) - 10 s for power circuit; 380 A 104ÃÂ°F (40ÃÂ°C) - 1 s for power circuit; 50 A 104ÃÂ°F (40ÃÂ°C) - 10 min for power circuit; 120 A 104ÃÂ°F (40ÃÂ°C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit

Rated Short-Time Withstand Current 240 A (at 40ÃÂ°C for 10 s Power Circuit), 380 A (at 40ÃÂ°C for 1 s Power Circuit), 50 A (at 40ÃÂ°C for 10 min Power Circuit), 120 A (at 40ÃÂ°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 690V AC, 300V DC

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series LC1D

Shock Resistance 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)

Signalling Circuit Frequency 25 to 400 Hz

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, BV, UL, DNV, CSA, GL, GOST, LROS, CCC, RINA, UKCA, THIEC 60068-2-30

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 40 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 2.5 Nm (Power Circuit)

Time Constant 28 ms

Utilisation Category AC-3; AC-1; AC-4; AC-3e

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Width 45 mm
