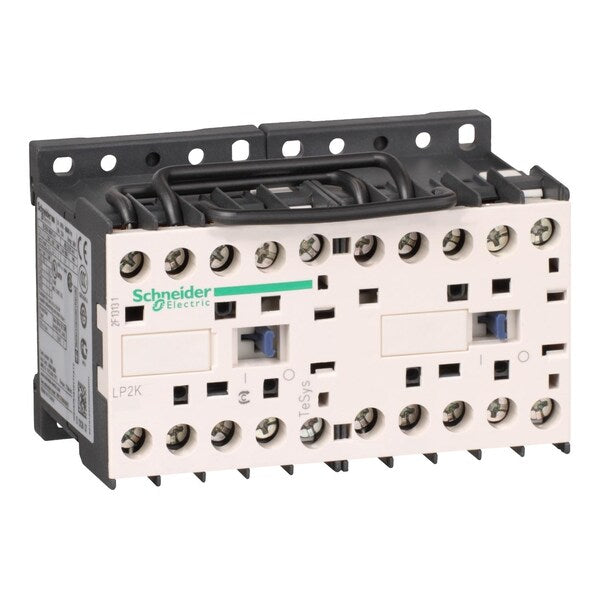

IEC Magnetic Contactor, 3 Poles, 24 V DC, 6 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor
graingerSKU: , mscSKU: , zoro_no: G0849576, mongo_id: 65bbe84622d7a989a98e8825

Web Price

$246.24 / each

Qty

Product Details

Action Reversing

Application Motor Control

Aux. Contact Configuration 1NC

Coil Volts 24 V DC

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.1 to 0.75 Uc (at 50ÃÂ°C)

Country of Origin (subject to change) France

Depth 57 mm

Electrical Connection Screw Clamp Terminals

Electrical Durability 1.3 Mcycles (6 A, AC-3, Less than 440 V); 1.3 Mcycles (6 A, AC-3e, Less than 440 V)

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Features Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Full Load Amps-Inductive 6 A

Fuse Amps 25 A (Power Circuit), 10 A (Signalling Circuit)

Height 58 mm

Impedance 3 mOhm

Impulse Withstand Voltage 8 kV

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Operating Watts 1.5 kW (at 220 to 230V AC 50/60 Hz), 2.2 kW (at 380 to 415VAC 50/60 Hz), 3 kW (at 440V AC 50/60 Hz), 3 kW (at 480V AC 50/60 Hz), 3 kW (at 500 to 600V AC 50/60 Hz), 3 kW (at 660 to 690V AC 50/60 Hz)

Mechanical Durability 5 Mcycles

Mounts On Plate, Rail

Net Weight 0.48 kg

Number of Poles 3

Operating Speed 3600 cycles per hr

Operating Time 30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V

Rated Insulation Volts 600/690V

Rated Making Capacity 110 A

Rated Short-Time Withstand Current 90 A (at 50ÃÂ°C for 1 s Power Circuit), 85 A (at 50ÃÂ°C for 5 s Power Circuit), 80 A (at 50ÃÂ°C for 10 s Power Circuit), 60 A (at 50ÃÂ°C for 30 s Power Circuit), 45 A (at 50ÃÂ°C for 1 min Power Circuit), 40 A (at 50ÃÂ°C for 3 min Power Circuit), 80 A (For 1 s Signalling Circuit), 90 A (For 500 ms Signalling Circuit), 110 A (For 100 ms Signalling Circuit), 20 A (at 50ÃÂ°C for 15 min Power Circuit)

Rated Voltage 690V AC

Series LP2K

Shock Resistance 10 G for 11 ms (on Y axis with Contactor Closed), 15 G for 11 ms (on X and Z axis with Contactor Closed), 6 G for 11 ms (on Y axis with Contactor Open), 10 G for 11 ms (on X and Z axis with Contactor Open)

Standards EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit), 10 A (at 50ÃÂ°C Signalling Circuit)

Tightening Torque 0.8 to 1.3 Nm

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 3W

Width 90 mm

Working Height 6561.68 ft
