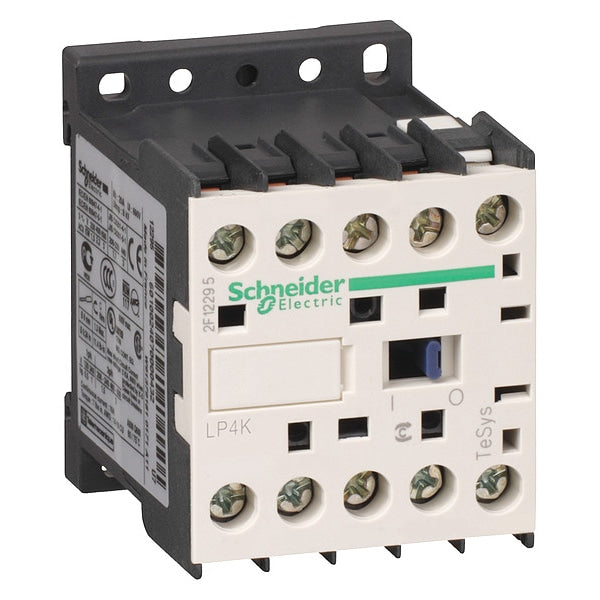

IEC Magnetic Contactor, 3 Poles, 24 V DC, 6 A, Reversing: No

IEC Magnetic Contactor, 3 Poles, 24 V DC, 6 A, Reversing: No

  • Schneider Electric
  • IEC Magnetic Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 6 A, Reversing Capability Non-Reversing, Overall Height 2.28 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys K, Number of Auxillary Contacts 1, Contactor Style IEC, Maximum Voltage Rating 690V AC, Embedded Surge Suppressor Yes

    graingerSKU: , mscSKU: 69527729, zoro_no: G0568849, mongo_id: 65bbe6ac3aaddbd5a90467c6

Web Price
$110.86 / each
Qty

Product Details

Motor Control
None
1NC
24V DC
24 V DC
IEC
Operational: 0.7 to 1.30 Uc (at 50°C), Drop-Out: 0.1 to 0.7 Uc (at 50°C)
France
2.24 in
Yes
No Enclosure
Mercury Free, Toxic Heavy Metal Free
Built-In Bi-Directional Peak Limiting Diode Suppressor
UL 94 V1, NF F 16-101, NF F 16-102
TeSys
50/60 Hz
6 A
6 A
25 A (Power Circuit), 10 A (Signalling Circuit)
2.28 in
50/60
3 mOhm
8 kV
Yes
Greater Than 10 MOhms (Signalling Circuit)
122 Degrees F
690V AC
30 Mcycles
30,000,000
-13 Degrees F
DIN Rail, Plate
Plate, Rail
Not Applicable
No Enclosure
Not Applicable
0.235 kg
1
3
3
3600 cycles per hr
10 to 20 ms (Coil De-Energisation and NO Opening), 30 to 40 ms (Coil Energisation and NO Closing)
2.24 in
2.28 in
1.77 in
CAT III
1
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
600/690V
110 A
690V AC
Insulation Resistant
No
Non-Reversing
TeSys K
CSA, UKCA, UL Listed
5 mA (Signalling Circuit)
17 V (Signalling Circuit)
Screw Clamp Terminals
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
0.8 to 1.3 Nm
1.77 in
6561.68 ft
