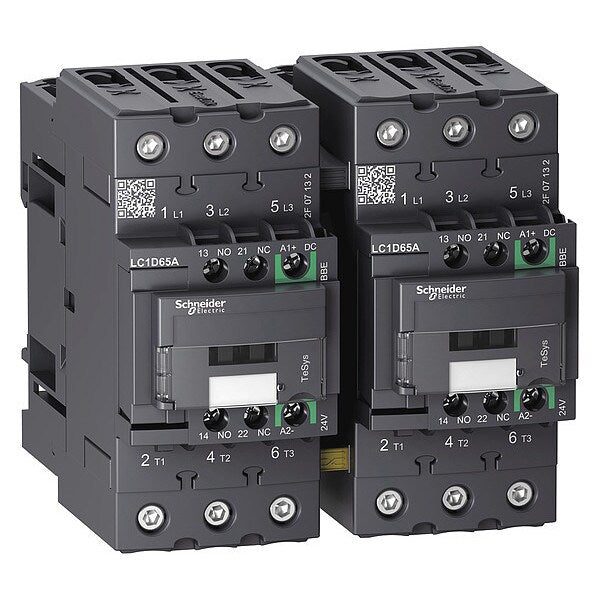

IEC Magnetic Contactor, 3 Poles, 24 V DC, 65 A, Reversing: Yes

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 65 A, Full Load Current - Resistive 80 A, Reversing Capability Reversing, Overall Height 4.8 in, Overall Width 4.69 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Horsepower @ Three Phase - 240V AC 20 hp
graingerSKU: 482Z76, mscSKU: , zoro_no: G6050088, mongo_id: 65bbe8789a749db822792fe2

Web Price

$534.99 / each

Product Details

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Form 1NO/1NC

Coil Voltage 24V DC

Coil Volts 24 V DC

Contactor Style IEC

Control Circuit Voltage Limits Drop-Out DC: Less Than 0.1 Uc (at -40 to 70ÃÂ°C); Operational DC: 0.8 to 1.2 Uc (at -40 to 60ÃÂ°C), 1 to 1.2 Uc (at 60 to 70ÃÂ°C)

Country of Origin (subject to change) France

Depth 4.72 in

Electrical Connection Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors

Electrical Durability 1.8 Mcycles (57 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V)

Electrical Operating Durability 1,800,000, 500,000

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, Pollution Degree 3

Features Built-In Bi-Directional Peak Limiting; Preassembled with Reversing Power Busbar

Fire Rating UL 94 V1

Frame / Series / Class / Code TeSys

Frequency 50/60 Hz

Full Load Amps-Inductive 65 A

Full Load Amps-Resistive 80 A

Full Load Current - Inductive 65 A

Full Load Current - Resistive 80 A

Fuse Amps 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit)

Height 4.8 in

Horsepower @ Single Phase - 120V AC 5 hp

Horsepower @ Single Phase - 240V AC 10 hp

Horsepower @ Three Phase - 208V AC 20 hp

Horsepower @ Three Phase - 240V AC 20 hp

Horsepower @ Three Phase - 480V AC 40 hp

Horsepower @ Three Phase - 600V AC 50 hp

HP @ 1 Phase - 120V 5 hp

HP @ 1 Phase - 240V 10 hp

HP @ 3 Phase - 208V 20 hp

HP @ 3 Phase - 240V 20 hp

HP @ 3 Phase - 480V 40 hp

HP @ 3 Phase - 575V 50 hp

Hz_ 50/60

Impedance 1.5 mOhm

Impulse Withstand Voltage 6 kV

Includes Auxiliary Contacts Yes

Includes Protective Cover Yes

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Operating Watts 18.5 kW (at 220 to 230V AC 50 Hz), 30 kW (at 380 to 400V AC 50 Hz), 37 kW (at 415V AC 50 Hz), 37 kW (at 440V AC 50 Hz), 37 kW (at 500V AC 50 Hz), 37 kW (at 660 to 690V AC 50 Hz)

Max. Temperature 850ÃÂ°C

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Durability 6 Mcycles

Mechanical Operating Durability 6,000,000

Minimum Operating Temperature -40 Degrees F

Mounting Style DIN Rail, Plate

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 2.174 kg

Non-Overlap Time 1.5 ms

Number of Auxillary Contacts 2

Number of Normally Open Main Contacts 3

Number of Poles 3

Operating Speed 3600 cycles per hr

Operating Time 55 to 65 ms (Closing), 20 to 120 ms (Opening)

Overall Depth 4.72 in

Overall Height 4.8 in

Overall Width 4.69 in

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 1000 A @ 440V

Rated Insulation Volts 690V

Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit)

Rated Short-Time Withstand Current 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 520 A (at 40ÃÂ°C for 10 s Power Circuit), 900 A (at 40ÃÂ°C for 1 s Power Circuit), 110 A (at 40ÃÂ°C for 10 min Power Circuit), 260 A (at 40ÃÂ°C for 1 min Power Circuit)

Rated Voltage 690V AC

Resistance Properties Fire Resistant, Insulation Resistant

Reversing Yes

Reversing Capability Reversing

Series TeSys Deca

Shock Resistance 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)

Signalling Circuit Frequency 25 to 400 Hz

Standards CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 80 A (at 60ÃÂ°C Power Circuit)
