Home / IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A

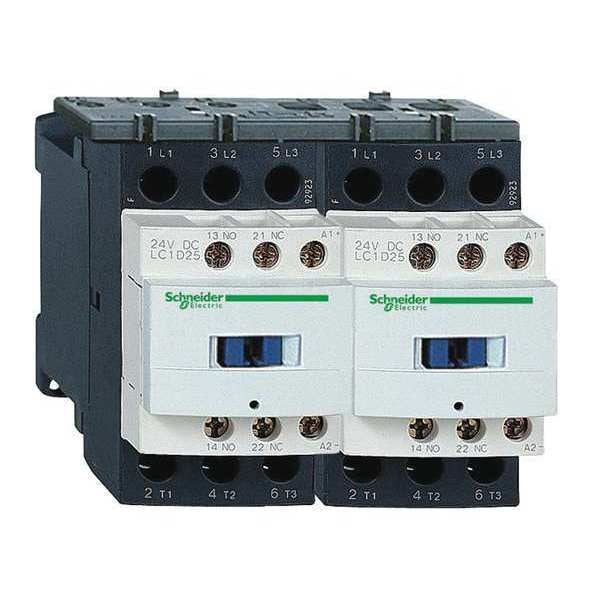

IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor

Web Price

$477.49 / each

Qty

Product Details

Action Reversing

Ambient Air Temperature For Operation -40 to 140ÃÂ°F (-40 to 60ÃÂ°C); 140 to 158ÃÂ°F (60 to 70ÃÂ°C) with derating

Ambient Air Temperature For Storage -76 to 176ÃÂ°F (-60 to 80ÃÂ°C)

Application Motor Control, Resistive Load

Associated Fuse Rating 25 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 20 A gG at Less than or Equal to 690 V coordination type 2 for power circuit; 10 A gG for signalling circuit conforming to IEC 60947-5-1

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1

Average Impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit

Climatic Withstand IACS E10; IEC 60947-1 Annex Q category D

Coil Technology Built-in bidirectional peak limiting diode suppressor

Coil Volts 24 V DC

Connections - Terminals Power circuit screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible without cable end; Power circuit screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible with cable end; Power circuit screw clamp terminals 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²)flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)solid; Power circuit screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)solid; Control circuit screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible without cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²)flexible with cable end; Control circuit screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)solid; Control circuit screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²)solid

Contactor Application Resistive load; Motor control

Control Circuit Type DC low consumption

Control Circuit Voltage Limits Drop-Out DC: 0.1 to 0.3 Uc (at -40 to 70ÃÂ°C), Operational DC: 0.8 to 1.25 Uc (at -40 to 60ÃÂ°C), 1 to 1.25 Uc (at 60 to 70ÃÂ°C)

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C)) for signalling circuit; 25 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit

Country of Origin (subject to change) France

Depth 95 mm

Device Presentation Preassembled with reversing power busbar

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.6 Mcycles (25 A, AC-1, Less than 440 V); 2 Mcycles (9 A, AC-3, Less than 440 V)

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Reversing Power Busbar

Fire Rating UL 94 V1

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Front Cover With

Full Load Amps-Inductive 9 A

Full Load Amps-Resistive 25 A

Fuse Amps 25 A (Type 1 Power Circuit), 20 A (Type 2 Power Circuit), 10 A (Signalling Circuit)

Height 77 mm

Hold-In Power Consumption in W 2.4 W 68ÃÂ°F (20ÃÂ°C)

HP @ 1 Phase - 240V 1 hp

HP @ 3 Phase - 208V 2 hp

HP @ 3 Phase - 240V 2 hp

HP @ 3 Phase - 480V 5 hp

HP @ 3 Phase - 575V 7 1/2 hp

Impedance 2.5 mOhm

Impulse Withstand Voltage 6 kV

Includes Protective Cover Yes

Inrush Power in W 2.4 W 68ÃÂ°F (20ÃÂ°C))

Insulation Resistance Greater than 10 MOhm for signalling circuit

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

Interlocking Type Mechanical

IP Degree Of Protection IP20 front face IEC 60529

IP Rating IP20

IRMS Rated Making Capacity 250 A at 440 V for power circuit conforming to IEC 60947; 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1

Max. Operating Watts 2.2 kW (at 220 to 230V AC 50 Hz), 4 kW (at 380 to 400V AC 50 Hz), 4 kW (at 415 to 440V AC 50 Hz), 5.5 kW (at 500V AC 50 Hz), 5.5 kW (at 660 to 690V AC 50 Hz)

Max. Temperature 850ÃÂ°C

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Mechanical Durability 30 Mcycles

Mechanical Robustness Vibrations contactor open2 Gn, 5 to 300 Hz; Vibrations contactor closed4 Gn, 5 to 300 Hz; Shocks contactor open10 Gn for 11 ms; Shocks contactor closed15 Gn for 11 ms

Minimum Switching Current 5 mA for signalling circuit

Minimum Switching Voltage 17 V for signalling circuit

Motor Power HP 0.5 hp at 115 V AC 60 Hz for 1 phase motors; 1 hp at 230/240 V AC 60 Hz for 1 phase motors; 2 hp at 200/208 V AC 60 Hz for 3 phase motors; 2 hp at 230/240 V AC 60 Hz for 3 phase motors; 5 hp at 460/480 V AC 60 Hz for 3 phase motors; 7.5 hp at 575/600 V AC 60 Hz for 3 phase motors

Motor Power KW 2.2 kW at 220 to 230 V AC 50-60 Hz; 4 kW at 380 to 400 V AC 50-60 Hz; 4 kW at 415 V AC 50-60 Hz; 4 kW at 440 V AC 50-60 Hz; 5.5 kW at 500 V AC 50-60 Hz; 5.5 kW at 660 to 690 V AC 50-60 Hz

Mounting Support Rail; Plate

Mounts On Plate, Rail

Net Weight 1.017 kg

Non-Overlap Time 1.5 ms

Number of Poles 3

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Operating Speed 3600 cycles per hr

Operating Time 65.45 to 88.55 ms (Closing), 20 to 30 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Poles Description 3P

Pollution Degree 3

Power Dissipation Per Pole 0.2 W AC-3; 1.56 W AC-1; 0.2 W AC-3e

Power Pole Contact Composition 3 NO

Product Certifications DNV; CSA; CCC; UL; GL; LROS (Lloyds register of shipping); BV; RINA; GOST; UKCA

Product Name TeSys D; TeSys Deca

Product Or Component Type Reversing contactor

Protective Treatment TH IEC 60068-2-30

Rated Breaking Capacity 250 A @ 440V

Rated Impulse Withstand Voltage 6 kV IEC 60947

Rated Insulation Voltage Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL

Rated Insulation Volts 600/690V

Rated Making Capacity 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)

Rated Operational Current 9 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-3 for power circuit; 25 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC

Rated Short Time Withstand Current 30 A 104ÃÂ°F (40ÃÂ°C) - 10 min for power circuit; 61 A 104ÃÂ°F (40ÃÂ°C) - 1 min for power circuit; 105 A 104ÃÂ°F (40ÃÂ°C) - 10 s for power circuit; 210 A 104ÃÂ°F (40ÃÂ°C) - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit

Rated Short-Time Withstand Current 30 A (at 40ÃÂ°C for 10 min Power Circuit), 61 A (at 40ÃÂ°C for 1 min Power Circuit), 105 A (at 40ÃÂ°C for 10 s Power Circuit), 210 A (at 40ÃÂ°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 690V AC, 300V DC

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series LC2D

Shock Resistance 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)

Signalling Circuit Frequency 25 to 400 Hz

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, DNV, CSA, CCC, UL, GL, LROS, BV, RINA, GOST, UKCA, TH IEC 60068-2-30

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 25 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)

Time Constant 40 ms

Utilisation Category AC-3; AC-1; AC-3e

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Width 90 mm

Working Height Up to 9842.52 ft
