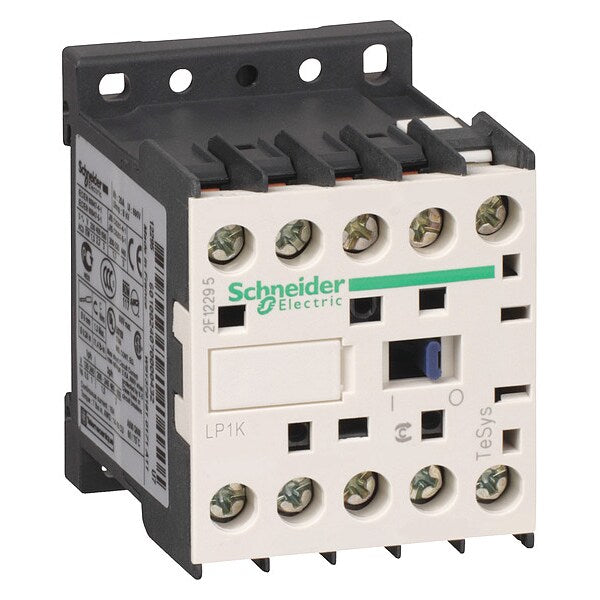

IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No

IEC Magnetic Contactor, 3 Poles, 24 V DC, 9 A, Reversing: No

  • Schneider Electric
  • IEC Magnetic Contactor, Auxiliary Contact Form 1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 20 A, Reversing Capability Non-Reversing, Overall Height 2.28 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys K, Number of Auxillary Contacts 1, Contactor Style IEC, Maximum Voltage Rating 690V AC

    graingerSKU: , mscSKU: , zoro_no: G0568821, mongo_id: 65bbe6ac3aaddbd5a90467be

Web Price
$132.49 / each
Qty

Product Details

Motor Control, Resistive Load
None
1NC
24V DC
24 V DC
IEC
Operational: 0.8 to 1.15 Uc (at 50°C), Drop-Out: 0.1 to 0.75 Uc (at 50°C)
France
2.24 in
No
No Enclosure
Mercury Free, Toxic Heavy Metal Free
UL 94 V1, NF F 16-101, NF F 16-102
TeSys
50/60 Hz
9 A
20 A
9 A
20 A
25 A (Power Circuit), 10 A (Signalling Circuit)
2.28 in
50/60
3 mOhm
8 kV
Yes
Greater Than 10 MOhms (Signalling Circuit)
122 Degrees F
690V AC
10 Mcycles
10,000,000
-13 Degrees F
DIN Rail, Plate
Plate, Rail
Not Applicable
No Enclosure
Not Applicable
0.225 kg
1
3
3
3600 cycles per hr
30 to 40 ms (Coil Energisation and NO Closing), 10 ms (Coil De-Energisation and NO Opening)
2.24 in
2.28 in
1.77 in
CAT III
1
110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V
600/690V
110 A
690V AC
Insulation Resistant
No
Non-Reversing
TeSys K
CSA, UKCA, UL Listed
5 mA (Signalling Circuit)
17 V (Signalling Circuit)
Screw Clamp Terminals
20 A (at 50°C Power Circuit), 10 A (at 50°C Signalling Circuit)
0.8 to 1.3 Nm
1.77 in
6561.68 ft
