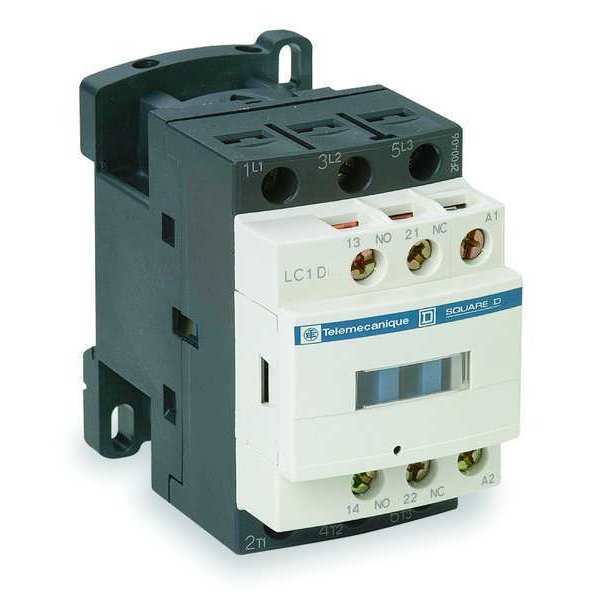

IEC Magnetic Contactor, 3 Poles, 480 V AC, 65 A, Reversing: No

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 480V AC, Number of Poles 3, Full Load Current - Inductive 65 A, Full Load Current - Resistive 80 A, Reversing Capability Non-Reversing, Overall Height 4.8 in, Overall Width 2.17 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC
graingerSKU: 5NHD9, mscSKU: , zoro_no: G3115935, mongo_id: 65bbee3c526e052139afbd68

Web Price

$452.49 / each

Qty

Product Details

Action Non-Reversing

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Form 1NO/1NC

Coil Voltage 480V AC

Coil Volts 480 V AC

Contactor Style IEC

Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70ÃÂ°C 60 Hz) , Operational AC: 0.85 to 1.1 Uc (at -40 to 60ÃÂ°C 60 Hz), 1 to 1.1 Uc (at 60 to 70ÃÂ°C 60 Hz)

Country of Origin (subject to change) Multiple

Depth 4.72 in

Electrical Connection Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors

Electrical Durability 1.4 Mcycles (80 A, AC-1, Less than 440 V); 1.45 Mcycles (65 A, AC-3, Less than 440 V); 1.45 Mcycles (65 A, AC-3e, Less than 440 V)

Electrical Operating Durability 1,400,000, 1,450,000

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Without Built-In Suppressor Module

Fire Rating UL 94 V1

Frequency 50/60 Hz

Full Load Amps-Inductive 65 A

Full Load Amps-Resistive 80 A

Full Load Current - Inductive 65 A

Full Load Current - Resistive 80 A

Fuse Amps 10 A (Signalling Circuit), 125 A (Type 1 Power Circuit), 125 A (Type 2 Power Circuit)

Height 4.8 in

Hold VA 13 VA

Horsepower @ Single Phase - 120V AC 5 hp

Horsepower @ Single Phase - 240V AC 10 hp

Horsepower @ Three Phase - 208V AC 20 hp

Horsepower @ Three Phase - 240V AC 20 hp

Horsepower @ Three Phase - 480V AC 40 hp

Horsepower @ Three Phase - 600V AC 50 hp

HP @ 1 Phase - 120V 5 hp

HP @ 1 Phase - 230V 10

HP @ 1 Phase - 240V 10 hp

HP @ 3 Phase - 208V 20 hp

HP @ 3 Phase - 240V 20 hp

HP @ 3 Phase - 480V 40 hp

HP @ 3 Phase - 575V 50 hp

Hz_ 50/60

Impedance 1.5 mOhm

Impulse Withstand Voltage 6 kV

Includes Everlink Power Connections

Includes Auxiliary Contacts Yes

Includes Protective Cover Yes

Inrush VA 140 VA

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Operating Watts 11 kW (at 400V AC 50/60 Hz AC-4), 18.5 kW (at 220 to 230V AC 50/60 Hz AC-3), 30 kW (at 380 to 400V AC 50/60 Hz AC-3), 37 kW (at 500V AC 50/60 Hz AC-3), 37 kW (at 660 to 690V AC 50/60 Hz AC-3), 18.5 kW (at 220 to 230V AC 50/60 Hz AC-3e), 30 kW (at 380 to 400V AC 50/60 Hz AC-3e), 37 kW (at 500V AC 50/60 Hz AC-3e), 37 kW (at 660 to 690V AC 50/60 Hz AC-3e)

Max. Temperature 850ÃÂ°C

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Durability 6 Mcycles

Mechanical Operating Durability 6,000,000

Minimum Operating Temperature -40 Degrees F

Mounting Style DIN Rail, Plate

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 0.86 kg

Non-Overlap Time 1.5 ms

Number of Auxillary Contacts 2

Number of Normally Open Main Contacts 3

Number of Poles 3

Operating Speed 3600 cycles per hr

Operating Time 4 to 19 ms (Opening), 12 to 26 ms (Closing)

Overall Depth 4.72 in

Overall Height 4.8 in

Overall Width 2.17 in

Overvoltage Category CAT III

Package Quantity 1

Phase Three

Rated Breaking Capacity 1000 A @ 440V

Rated Insulation Volts 600/690V

Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 1000 A @ 440V (Power Circuit)

Rated Short-Time Withstand Current 520 A (at 40ÃÂ°C for 10 s Power Circuit), 900 A (at 40ÃÂ°C for 1 s Power Circuit), 110 A (at 40ÃÂ°C for 10 min Power Circuit), 260 A (at 40ÃÂ°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 690V AC, 300V DC

Resistance Properties Fire Resistant, Insulation Resistant

Reversing No

Reversing Capability Non-Reversing

Series TeSys Deca

Shock Resistance 10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)

Signalling Circuit Frequency 25 to 400 Hz

Standards CCC, CSA, CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, GOST, IEC 60335-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL Listed

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 80 A (at 60ÃÂ°C Power Circuit)
