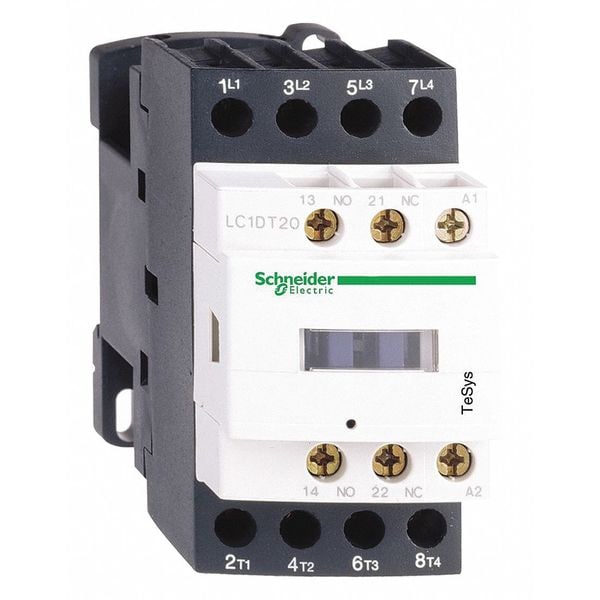

IEC Magnetic Contactor, 4 Poles, 110 V AC, 25 A, Reversing: No

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 4, Full Load Current - Inductive 25 A, Full Load Current - Resistive 40 A, Reversing Capability Non-Reversing, Overall Height 4.13 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Maximum Voltage Rating 690V AC
graingerSKU: 48N863, mscSKU: 69663508, zoro_no: G0569250, mongo_id: 65bbe8e822d7a989a9921df5

Web Price

$329.99 / each

Qty

Product Details

Application Resistive Load

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Form 1NO/1NC

Coil Voltage 110V AC

Coil Volts 110 V AC

Contactor Style IEC

Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 60ÃÂ°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60ÃÂ°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60ÃÂ°C 60 Hz)

Country of Origin (subject to change) Multiple

Depth 3.9 in

Electrical Connection Screw Clamp Terminals

Electrical Durability 1.4 Mcycles (40 A, AC-1, Less than 440 V)

Electrical Operating Durability 1,400,000

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Without Built-In Suppressor Module

Fire Rating UL 94 V1

Frame / Series / Class / Code TeSys

Frequency 50/60 Hz

Full Load Amps-Inductive 25 A

Full Load Amps-Resistive 40 A

Full Load Current - Inductive 25 A

Full Load Current - Resistive 40 A

Fuse Amps 10 A (Signalling Circuit), 63 A (Type 1 Power Circuit), 40 A (Type 2 Power Circuit)

Height 4.13 in

Hold VA 7.5 VA (at 60 Hz 20ÃÂ°C), 7 VA (at 50 Hz 20ÃÂ°C)

Hz_ 50/60

Impedance 2 mOhm

Impulse Withstand Voltage 6 kV

Includes Auxiliary Contacts Yes

Includes Protective Cover Yes

Inrush VA 70 VA

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Temperature 850ÃÂ°C

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Durability 15 Mcycles

Mechanical Operating Durability 15,000,000

Minimum Operating Temperature -40 Degrees F

Mounting Style DIN Rail, Plate

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 0.425 kg

Non-Overlap Time 1.5 ms

Number of Auxillary Contacts 2

Number of Normally Closed Main Contacts 2

Number of Normally Open Main Contacts 2

Number of Poles 4

Operating Speed 3600 cycles per hr

Operating Time 12 to 22 ms (Closing), 4 to 19 ms (Opening)

Overall Depth 3.9 in

Overall Height 4.13 in

Overall Width 1.77 in

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 450 A @ 440V

Rated Insulation Volts 600/690V

Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 450 A @ 440V (Power Circuit)

Rated Short-Time Withstand Current 240 A (at 40ÃÂ°C for 10 s Power Circuit), 380 A (at 40ÃÂ°C for 1 s Power Circuit), 50 A (at 40ÃÂ°C for 10 min Power Circuit), 120 A (at 40ÃÂ°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 690V AC

Resistance Properties Fire Resistant, Insulation Resistant

Reversing No

Reversing Capability Non-Reversing

Series TeSys Deca

Shock Resistance 8 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)

Signalling Circuit Frequency 25 to 400 Hz

Standards CB, CCC, CSA, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, EAC, EN 60947-4-1, EN 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, IEC 60947-4-1, IEC 60947-5-1, UKCA, UL 60947-5-1, UL Listed, UL 60947-4-1

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 40 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 1.8 Nm (Power Circuit)

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 2 to 3W

Width 1.77 in

Working Height Up to 9842.52 ft
