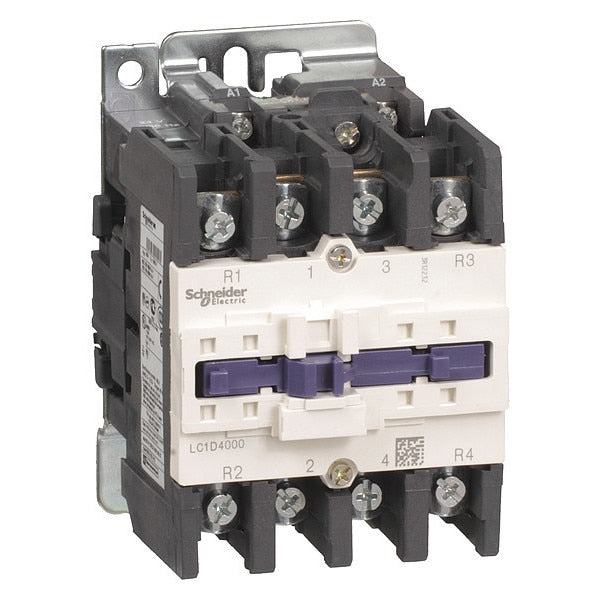

IEC Magnetic Contactor, 4 Poles, 110 V AC, 40 A, Reversing: No

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 4, Full Load Current - Inductive 40 A, Full Load Current - Resistive 40 A, Reversing Capability Non-Reversing, Overall Height 5 in, Overall Width 3.35 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Contactor Style IEC, Maximum Voltage Rating 690V AC, Embedded Surge Suppressor No, Frequency 50/60 Hz

Web Price

$601.24 / each

Qty

Product Details

Application Resistive Load

Aux. Contact Configuration 2NO/2NC

Coil Voltage 110V AC

Coil Volts 110 V AC

Contactor Style IEC

Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70ÃÂ°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60ÃÂ°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60ÃÂ°C 60 Hz), 1 to 1.1 Uc (at 60 to 70ÃÂ°C 50/60 Hz)

Country of Origin (subject to change) Czechia

Depth 4.92 in

Electrical Connection Screw Clamp Terminals

Electrical Durability 1.4 Mcycles (60 A, AC-1, Less than 440 V)

Electrical Operating Durability 1,400,000

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Without Built-In Suppressor Module

Fire Rating UL 94 V1

Frame / Series / Class / Code TeSys

Frequency 50/60 Hz

Full Load Amps-Inductive 40 A

Full Load Amps-Resistive 40 A

Full Load Current - Inductive 40 A

Full Load Current - Resistive 40 A

Fuse Amps 80 A (Type 1 and 2 Power Circuit)

Height 5 in

Hold VA 13 VA (at 60 Hz 20ÃÂ°C), 15 VA (at 50 Hz 20ÃÂ°C)

Hz_ 50/60

Impedance 1.5 mOhm

Impulse Withstand Voltage 6 kV

Includes Protective Cover No

Inrush VA 140 VA (at 60 Hz 20ÃÂ°C), 160 VA (at 50 Hz 20ÃÂ°C)

IP Rating IP20

Max. Temperature 850ÃÂ°C

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Durability 6 Mcycles

Mechanical Operating Durability 6,000,000

Minimum Operating Temperature -40 Degrees F

Mounting Style DIN Rail, Plate

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 1.44 kg

Number of Normally Closed Main Contacts 2

Number of Normally Open Main Contacts 2

Number of Poles 4

Operating Speed 3600 cycles per hr

Operating Time 4 to 19 ms (Opening), 12 to 26 ms (Closing)

Overall Depth 4.92 in

Overall Height 5 in

Overall Width 3.35 in

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 800 A @ 440V

Rated Insulation Volts 600/690V

Rated Making Capacity 800 A @ 440V (Power Circuit)

Rated Short-Time Withstand Current 320 A (at 40ÃÂ°C for 10 s Power Circuit), 720 A (at 40ÃÂ°C for 1 s Power Circuit), 72 A (at 40ÃÂ°C for 10 min Power Circuit), 165 A (at 40ÃÂ°C for 1 min Power Circuit)

Rated Voltage 690V AC, 300V DC

Resistance Properties Fire Resistant

Reversing No

Reversing Capability Non-Reversing

Series TeSys Deca

Shock Resistance 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)

Standards BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UL 508, UL Listed

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 60 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 4 to 5W
