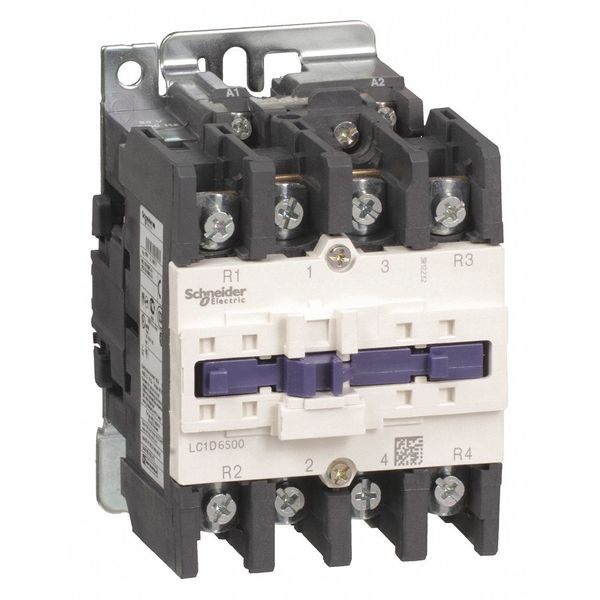

IEC Magnetic Contactor, 4 Poles, 110 V AC, 65 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor

Web Price

$966.24 / each

Qty

Product Details

Application Resistive Load

Aux. Contact Configuration 2NO/2NC

Coil Volts 110 V AC

Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70ÃÂ°C 50/60 Hz); Operational AC: 0.8 to 1.1 Uc (at -40 to 60ÃÂ°C 50 Hz), 0.85 to 1.1 Uc (at -40 to 60ÃÂ°C 60 Hz), 1 to 1.1 Uc (at 60 to 70ÃÂ°C 50/60 Hz)

Country of Origin (subject to change) Czechia

Depth 125 mm

Electrical Connection Screw Clamp Terminals

Electrical Durability 1.4 Mcycles (80 A, AC-1, Less than 440 V)

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Without Built-In Suppressor Module

Fire Rating UL 94 V1

Full Load Amps-Inductive 65 A

Fuse Amps 125 A (Type 1 and 2 Power Circuit)

Height 127 mm

Hold VA 13 VA (at 60 Hz 20ÃÂ°C), 15 VA (at 50 Hz 20ÃÂ°C)

Impedance 1.5 mOhm

Impulse Withstand Voltage 6 kV

Includes Protective Cover No

Inrush VA 140 VA (at 60 Hz 20ÃÂ°C), 160 VA (at 50 Hz 20ÃÂ°C)

IP Rating IP20

Max. Temperature 850ÃÂ°C

Mechanical Durability 6 Mcycles

Mounts On Plate, Rail

Net Weight 1.45 kg

Number of Poles 4

Operating Speed 3600 cycles per hr

Operating Time 4 to 19 ms (Opening), 12 to 26 ms (Closing)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 1000 A @ 440V

Rated Insulation Volts 600/690V

Rated Making Capacity 1000 A @ 440V

Rated Short-Time Withstand Current 520 A (at 40ÃÂ°C for 10 s Power Circuit), 900 A (at 40ÃÂ°C for 1 s Power Circuit), 110 A (at 40ÃÂ°C for 10 min Power Circuit), 260 A (at 40ÃÂ°C for 1 min Power Circuit)

Rated Voltage 690V AC, 300V DC

Series LC1D

Shock Resistance 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, UL, CCC, GL, LROS, GOST, CSA, RINA, BV, DNV, THIEC 60068-2-30

Thermal Amperage 80 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)

Vibration Resistance 3 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 4 to 5W

Width 85 mm

Working Height Up to 9842.52 ft
