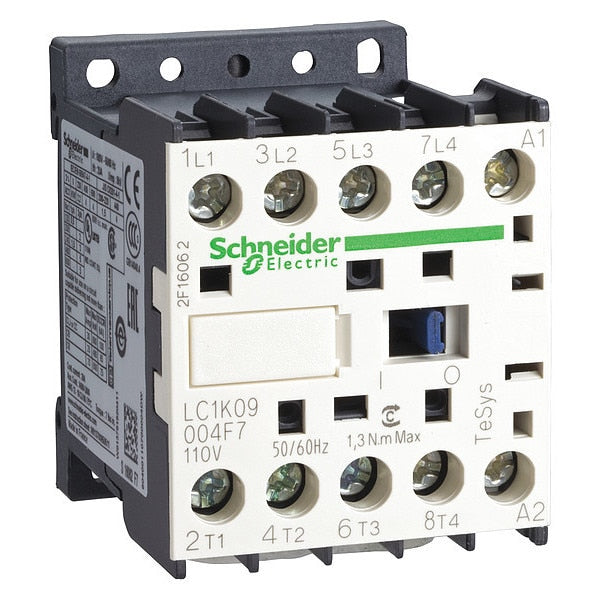

IEC Magnetic Contactor, 4 Poles, 110 V AC, 9 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor
graingerSKU: 48N720, mscSKU: , zoro_no: G0568718, mongo_id: 65bbe6453aaddbd5a901b969

Web Price

$103.24 / each

Qty

Product Details

Ambient Air Temperature For Storage -58 to 176ÃÂ°F (-50 to 80ÃÂ°C)

Application Resistive Load

Associated Fuse Rating 25 A gG at Less than or Equal to 440 V for power circuit; 25 A aM for power circuit

Aux. Contact Configuration 4NO

Average Impedance 3 mOhm - Ith 20 A 50 Hz for power circuit

Coil Volts 110 V AC

Connections - Terminals screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1.5 to 4 mmÃÂ²)solid; screw clamp terminals 1 0.00 to 0.01 inÃÂ² (0.75 to 4 mmÃÂ²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 inÃÂ² (0.34 to 2.5 mmÃÂ²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1.5 to 4 mmÃÂ²)solid; screw clamp terminals 2 0.00 to 0.01 inÃÂ² (0.75 to 4 mmÃÂ²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 inÃÂ² (0.34 to 1.5 mmÃÂ²)flexible with cable end

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage 110 V AC 50/60 Hz

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.2 to 0.75 Uc (at 50ÃÂ°C)

Conventional Free Air Thermal Current 20 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit; 10 A (at 122ÃÂ°F (50ÃÂ°C)) for signalling circuit

Country of Origin (subject to change) Multiple

Depth 57 mm

Device Application Control

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.18 Mcycles (20 A, AC-1, Less than 440 V)

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Flame Retardance V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102

Full Load Amps-Inductive 9 A

Full Load Amps-Resistive 20 A

Fuse Amps 25 A

Heat Dissipation 1.3 W

Height 58 mm

Hold VA 4.5 VA

Hold-In Power Consumption in VA 4.5 VA (at 68ÃÂ°F (20ÃÂ°C))

Impedance 3 mOhm

Impulse Withstand Voltage 8 kV

Inrush Power in VA 30 VA (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 30 VA

IP Degree Of Protection IP2X VDE 0106

IP Rating IP2X

IRMS Rated Making Capacity 110 A AC for power circuit conforming to IEC 60947

Maximum Operating Rate 3600 cyc/h

Mechanical Durability 10 Mcycles

Mechanical Robustness Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27; Vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6; Vibrations contactor opened2 Gn, 5 to 300 Hz IEC 60068-2-6

Mounting Support Rail; Plate

Mounts On Plate, Rail

Net Weight 0.18 kg

Number of Poles 4

Operating Altitude 6561.68 ft (2000 m) without derating

Operating Speed 3600 cycles per hr

Operating Time 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing)

Overvoltage Category CAT III

Package Quantity 1

Poles Description 4P

Power Pole Contact Composition 4 NO

Product Certifications CB Scheme; CCC; UL; CSA; EAC; CE; UKCA

Product Or Component Type Contactor

Protective Treatment TC IEC 60068; TC DIN 50016

Rated Breaking Capacity 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V

Rated Insulation Voltage Power circuit 600 V UL 508; Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA C22.2 No 14

Rated Insulation Volts 600/690V

Rated Making Capacity 110 A (AC Power Circuit)

Rated Operational Current 20 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 690 V AC AC-1 for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz; Signalling circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz

Rated Short Time Withstand Current 90 A 122ÃÂ°F (50ÃÂ°C) - 1 s for power circuit; 85 A 122ÃÂ°F (50ÃÂ°C) - 5 s for power circuit; 80 A 122ÃÂ°F (50ÃÂ°C) - 10 s for power circuit; 60 A 122ÃÂ°F (50ÃÂ°C) - 30 s for power circuit; 45 A 122ÃÂ°F (50ÃÂ°C) - 1 min for power circuit; 40 A 122ÃÂ°F (50ÃÂ°C) - 3 min for power circuit; 20 A 122ÃÂ°F (50ÃÂ°C) - Greater than or Equal to 15 min for power circuit

Rated Short-Time Withstand Current 90 A (at 50ÃÂ°C for 1 s Power Circuit), 85 A (at 50ÃÂ°C for 5 s Power Circuit), 80 A (at 50ÃÂ°C for 10 s Power Circuit), 60 A (at 50ÃÂ°C for 30 s Power Circuit), 45 A (at 50ÃÂ°C for 1 min Power Circuit), 40 A (at 50ÃÂ°C for 3 min Power Circuit), 20 A (at 50ÃÂ°C for 15 min Power Circuit)

Rated Voltage 690V AC

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series LC1K

Shock Resistance 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)

Signalling Circuit Frequency Less Than 400 Hz

Standards EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit)

Tightening Torque 0.8 to 1.3 Nm

Utilisation Category AC-1

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 1.3W

Width 45 mm

Working Height 6561.68 ft
