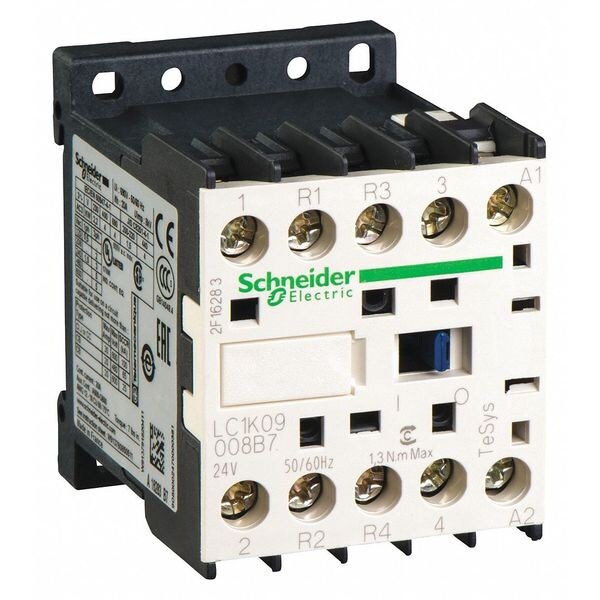

IEC Magnetic Contactor, 4 Poles, 110 V AC, 9 A, Reversing: No

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 4, Full Load Current - Inductive 9 A, Full Load Current - Resistive 20 A, Reversing Capability Non-Reversing, Overall Height 2.28 in, Overall Width 1.77 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys K, Number of Auxillary Contacts 0, Contactor Style IEC
graingerSKU: 48N724, mscSKU: 57545451, zoro_no: G0478348, mongo_id: 65bbe84622d7a989a98e8832

Web Price

$103.24 / each

Qty

Product Details

Ambient Air Temperature For Storage -58 to 176ÃÂ°F (-50 to 80ÃÂ°C)

Application Resistive Load

Associated Fuse Rating 25 A gG at Less than or Equal to 440 V for power circuit; 25 A aM for power circuit

Aux. Contact Configuration None

Auxiliary Contact Form Auxiliary Contacts Not Included

Average Impedance 3 mOhm - Ith 20 A 50 Hz for power circuit

Coil Voltage 110V AC

Coil Volts 110 V AC

Connections - Terminals screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1.5 to 4 mmÃÂ²)solid; screw clamp terminals 1 0.00 to 0.01 inÃÂ² (0.75 to 4 mmÃÂ²)flexible without cable end; screw clamp terminals 1 0.00 to 0.00 inÃÂ² (0.34 to 2.5 mmÃÂ²)flexible with cable end; screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1.5 to 4 mmÃÂ²)solid; screw clamp terminals 2 0.00 to 0.01 inÃÂ² (0.75 to 4 mmÃÂ²)flexible without cable end; screw clamp terminals 2 0.00 to 0.00 inÃÂ² (0.34 to 1.5 mmÃÂ²)flexible with cable end

Contactor Style IEC

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage 110 V AC 50/60 Hz

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.2 to 0.75 Uc (at 50ÃÂ°C)

Conventional Free Air Thermal Current 20 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit; 10 A (at 122ÃÂ°F (50ÃÂ°C)) for signalling circuit

Country of Origin (subject to change) Multiple

Depth 2.24 in

Device Application Control

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.18 Mcycles (20 A, AC-1, Less than 440 V)

Electrical Operating Durability 180,000

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Flame Retardance V1 conforming to UL 94; Requirement 2 conforming to NF F 16-101; Requirement 2 conforming to NF F 16-102

Frame / Series / Class / Code TeSys

Frequency 50/60 Hz

Full Load Amps-Inductive 9 A

Full Load Amps-Resistive 20 A

Full Load Current - Inductive 9 A

Full Load Current - Resistive 20 A

Fuse Amps 25 A

Heat Dissipation 1.3 W

Height 2.28 in

Hold VA 4.5 VA

Hold-In Power Consumption in VA 4.5 VA (at 68ÃÂ°F (20ÃÂ°C))

Hz_ 50/60

Impedance 3 mOhm

Impulse Withstand Voltage 8 kV

Includes Auxiliary Contacts No

Inrush Power in VA 30 VA (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 30 VA

IP Degree Of Protection IP2X VDE 0106

IP Rating IP22

IRMS Rated Making Capacity 110 A AC for power circuit conforming to IEC 60947

Maximum Operating Rate 3600 cyc/h

Maximum Voltage Rating 690V AC

Mechanical Durability 10 Mcycles

Mechanical Operating Durability 10,000,000

Mechanical Robustness Shocks contactor closed, on X axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Y axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on X axis6 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Y axis10 Gn for 11 ms IEC 60068-2-27; Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27; Vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6; Vibrations contactor opened2 Gn, 5 to 300 Hz IEC 60068-2-6

Mounting Style DIN Rail, Plate

Mounting Support Rail; Plate

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 0.18 kg

Number of Auxillary Contacts 0

Number of Normally Closed Main Contacts 2

Number of Normally Open Main Contacts 2

Number of Poles 4

Operating Altitude 6561.68 ft (2000 m) without derating

Operating Speed 3600 cycles per hr

Operating Time 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing), 15 to 25 ms (Coil De-Energisation and NC Closing), 5 to 15 ms (Coil Energisation and NC Opening)

Overall Depth 2.24 in

Overall Height 2.28 in

Overall Width 1.77 in

Overvoltage Category CAT III

Package Quantity 1

Poles Description 4P

Power Pole Contact Composition 2 NO + 2 NC

Product Certifications CB Scheme; CCC; UL; CSA; EAC; CE; UKCA

Product Or Component Type Contactor

Protective Treatment TC IEC 60068; TC DIN 50016

Rated Breaking Capacity 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V

Rated Insulation Voltage Power circuit 600 V UL 508; Power circuit 690 V IEC 60947-4-1; Power circuit 600 V CSA C22.2 No 14

Rated Insulation Volts 600/690V

Rated Making Capacity 110 A (AC Power Circuit)

Rated Operational Current 20 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 690 V AC AC-1 for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz; Signalling circuit Less than or Equal to 690 V AC Less than or Equal to 400 Hz

Rated Short Time Withstand Current 90 A 122ÃÂ°F (50ÃÂ°C) - 1 s for power circuit; 85 A 122ÃÂ°F (50ÃÂ°C) - 5 s for power circuit; 80 A 122ÃÂ°F (50ÃÂ°C) - 10 s for power circuit; 60 A 122ÃÂ°F (50ÃÂ°C) - 30 s for power circuit; 45 A 122ÃÂ°F (50ÃÂ°C) - 1 min for power circuit; 40 A 122ÃÂ°F (50ÃÂ°C) - 3 min for power circuit; 20 A 122ÃÂ°F (50ÃÂ°C) - Greater than or Equal to 15 min for power circuit

Rated Short-Time Withstand Current 90 A (at 50ÃÂ°C for 1 s Power Circuit), 85 A (at 50ÃÂ°C for 5 s Power Circuit), 80 A (at 50ÃÂ°C for 10 s Power Circuit), 60 A (at 50ÃÂ°C for 30 s Power Circuit), 45 A (at 50ÃÂ°C for 1 min Power Circuit), 40 A (at 50ÃÂ°C for 3 min Power Circuit), 20 A (at 50ÃÂ°C for 15 min Power Circuit)

Rated Voltage 690V AC

Reversing No

Reversing Capability Non-Reversing

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series TeSys K

Shock Resistance 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)

Signalling Circuit Frequency Less Than 400 Hz

Standards BS 5424, CSA, IEC 60947, NF C 63-110, UKCA, UL Listed, VDE 0660

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit)

Tightening Torque 0.8 to 1.3 Nm

Utilisation Category AC-1

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 1.3W

Width 1.77 in

Working Height 6561.68 ft
