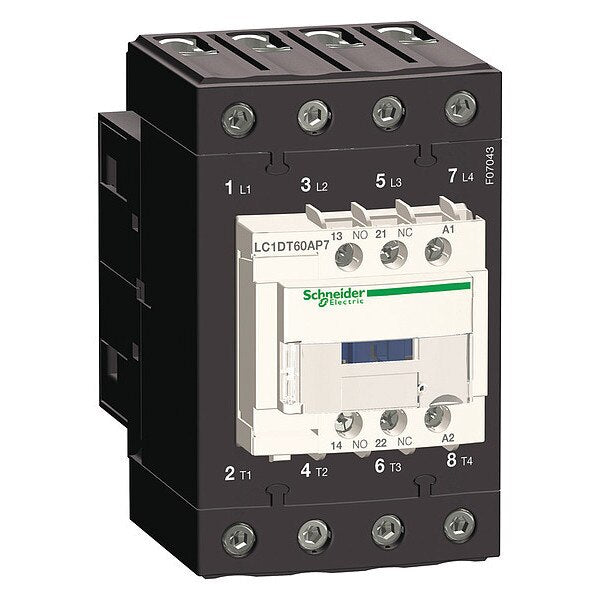

IEC Magnetic Contactor, 4 Poles, 120 V AC, 60 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor, Number of Poles 4
graingerSKU: , mscSKU: 69662997, zoro_no: G0568919, mongo_id: 65bbe92f22d7a989a993e761

Web Price

$427.49 / each

Qty

Product Details

Application Resistive Load

Associated Fuse Rating 10 A gG for signalling circuit conforming to IEC 60947-5-1; 80 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 80 A gG at Less than or Equal to 690 V coordination type 2 for power circuit

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Composition 1 NO + 1 NC

Auxiliary Contacts Type Mechanically linked 1 NO + 1 NC IEC 60947-5-1; Mirror contact 1 NC IEC 60947-4-1

Average Impedance 1.6 mOhm - Ith 60 A 50 Hz for power circuit

Climatic Withstand IACS E10 exposure to damp heat; IEC 60947-1 Annex Q category D exposure to damp heat

Coil Volts 120 V AC

Connections - Terminals Control circuit: screw clamp terminals 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: solid without cable end; Power circuit: EverLink BTR screw connectors 1 0.00 to 0.05 inÃÂ² (1 to 35 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: EverLink BTR screw connectors 2 0.00 to 0.04 inÃÂ² (1 to 25 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: EverLink BTR screw connectors 1 0.00 to 0.05 inÃÂ² (1 to 35 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: EverLink BTR screw connectors 2 0.00 to 0.04 inÃÂ² (1 to 25 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: EverLink BTR screw connectors 1 0.00 to 0.05 inÃÂ² (1 to 35 mmÃÂ²) - cable stiffness: solid without cable end; Power circuit: EverLink BTR screw connectors 2 0.00 to 0.04 inÃÂ² (1 to 25 mmÃÂ²) - cable stiffness: solid without cable end

Contact Compatibility M6

Control Circuit Type AC 60 Hz

Control Circuit Voltage 120 V AC 60 Hz

Control Circuit Voltage Limits Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70ÃÂ°C 60 Hz) , Operational AC: 0.85 to 1.1 Uc (at -40 to 60ÃÂ°C 60 Hz), 1 to 1.1 Uc (at 60 to 70ÃÂ°C 60 Hz)

Conventional Free Air Thermal Current 10 A (at 140ÃÂ°F (60ÃÂ°C)) for signalling circuit; 60 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit

Country of Origin (subject to change) France

Depth 120 mm

Electrical Connection Control Circuit: Screw Clamp Terminals, Power Circuit: EverLink BTR Screw Connectors

Electrical Durability 1.4 Mcycles (60 A, AC-1, Less than 440 V)

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Without Built-In Suppressor Module

Fire Rating UL 94 V1

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Full Load Amps-Inductive 60 A

Fuse Amps 10 A (Signalling Circuit), 80 A (Type 1 Power Circuit), 80 A (Type 2 Power Circuit)

Heat Dissipation 4 to 5 W at 60 Hz

Height 122 mm

Hold VA 13 VA

Hold-In Power Consumption in VA 13 VA 60 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C))

Impedance 1.6 mOhm

Impulse Withstand Voltage 6 kV

Includes Everlink Power Connections

Includes Protective Cover Yes

Inrush Power in VA 140 VA 60 Hz cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 140 VA

Insulation Resistance Greater than 10 MOhm for signalling circuit

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Degree Of Protection IP20 front face IEC 60529

IP Rating IP20

IRMS Rated Making Capacity 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 800 A at 440 V for power circuit conforming to IEC 60947

Max. Temperature 850ÃÂ°C

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Mechanical Durability 6 Mcycles

Mechanical Robustness Vibrations contactor open 2 Gn, 5 to 300 Hz); Vibrations contactor closed 4 Gn, 5 to 300 Hz); Shocks contactor closed 15 Gn for 11 ms); Shocks contactor open 10 Gn for 11 ms)

Minimum Switching Current 5 mA for signalling circuit

Minimum Switching Voltage 17 V for signalling circuit

Mounting Support Rail; Plate

Mounts On Plate, Rail

Net Weight 1.09 kg

Non-Overlap Time 1.5 ms

Number of Poles 4

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Operating Speed 3600 cycles per hr

Operating Time 4 to 19 ms (Opening), 12 to 26 ms (Closing)

Overvoltage Category CAT III

Package Quantity 1

Permissible Ambient Air Temperature Around The Device -40 to 140ÃÂ°F (-40 to 60ÃÂ°C); 140 to 158ÃÂ°F (60 to 70ÃÂ°C) with derating

Pole Contact Composition 4 NO

Poles Description 4P

Pollution Degree 3

Power Dissipation Per Pole 5.8 W AC-1

Product Certifications RINA; CSA; GOST; LROS (Lloyds register of shipping); DNV; CCC; UL; GL; BV

Product Or Component Type Contactor

Protective Cover With

Protective Treatment THIEC 60068-2-30

Rated Breaking Capacity 800 A @ 440V

Rated Impulse Withstand Voltage 6 kV IEC 60947

Rated Insulation Voltage Power circuit 600 V CSA; Power circuit 600 V UL; Signalling circuit 690 V IEC 60947-1; Signalling circuit 600 V CSA; Signalling circuit 600 V UL; Power circuit 690 V IEC 60947-4-1

Rated Insulation Volts 600/690V

Rated Making Capacity 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit), 800 A @ 440V (Power Circuit)

Rated Operational Current 60 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz; Power circuit Less than or Equal to 300 V DC

Rated Short Time Withstand Current 320 A 104ÃÂ°F (40ÃÂ°C) - 10 s for power circuit; 720 A 104ÃÂ°F (40ÃÂ°C) - 1 s for power circuit; 72 A 104ÃÂ°F (40ÃÂ°C) - 10 min for power circuit; 165 A 104ÃÂ°F (40ÃÂ°C) - 1 min for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit

Rated Short-Time Withstand Current 320 A (at 40ÃÂ°C for 10 s Power Circuit), 720 A (at 40ÃÂ°C for 1 s Power Circuit), 72 A (at 40ÃÂ°C for 10 min Power Circuit), 165 A (at 40ÃÂ°C for 1 min Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 690V AC, 300V DC

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series LC1D

Shock Resistance 10 G for 11 ms (Contactor Open), 15 G for 11 ms (Contactor Closed)

Signalling Circuit Frequency 25 to 400 Hz

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1, RINA, CSA, GOST, LROS, DNV, CCC, UL, GL, BV, THIEC 60068-2-30

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 60 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 2.5 to 8 Nm (Power Circuit)

Utilisation Category AC-1

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 4 to 5W

Width 70 mm

Working Height Up to 9842.52 ft
