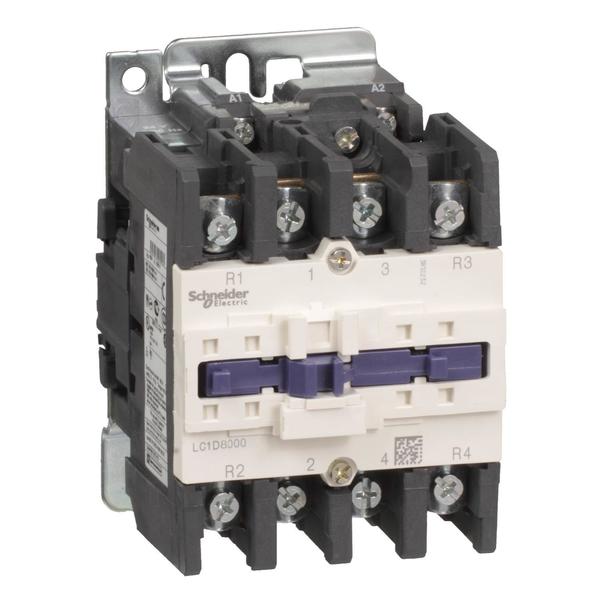

IEC Magnetic Contactor, 4 Poles, 120 V AC, 80 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor
graingerSKU: , mscSKU: , zoro_no: G0850361, mongo_id: 65bbe97a22d7a989a995b2fb

Web Price

$861.24 / each

Qty

Minimum order: 2

Product Details

Application Resistive Load

Aux. Contact Configuration 4NO

Coil Volts 120 V AC

Control Circuit Voltage Limits Operational AC: 0.85 to 1.1 Uc (at -40 to 55ÃÂ°C 60 Hz), 1 to 1.1 Uc (at 55 to 70ÃÂ°C 60 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 70ÃÂ°C 60 Hz)

Country of Origin (subject to change) Czechia

Depth 125 mm

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.8 Mcycles (125 A, AC-1, Less than 440 V)

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Without Built-In Suppressor Module

Fire Rating UL 94 V1

Full Load Amps-Inductive 80 A

Full Load Amps-Resistive 125 A

Fuse Amps 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)

Height 127 mm

Hold VA 22 VA

Impedance 0.8 mOhm

Impulse Withstand Voltage 8 kV

Includes Protective Cover No

Inrush VA 220 VA

IP Rating IP20

Max. Operating Watts 22 kW (at 220 to 230V AC 50/60 Hz), 37 kW (at 380 to 400V AC 50/60 Hz), 45 kW (at 660 to 690V AC 50/60 Hz), 55 kW (at 500V AC 50/60 Hz), 45 kW (at 415 to 440V AC 50/60 Hz)

Max. Temperature 850ÃÂ°C

Mechanical Durability 10 Mcycles

Mounts On Plate, Rail

Net Weight 1.76 kg

Number of Poles 4

Operating Speed 3600 cycles per hr

Operating Time 20 to 35 ms (Closing), 6 to 20 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 1100 A @ 440V

Rated Insulation Volts 600/1000V

Rated Making Capacity 1100 A @ 440V (Power Circuit)

Rated Short-Time Withstand Current 640 A (at 40ÃÂ°C for 10 s Power Circuit), 990 A (at 40ÃÂ°C for 1 s Power Circuit), 135 A (at 40ÃÂ°C for 10 min Power Circuit), 320 A (at 40ÃÂ°C for 1 min Power Circuit)

Rated Voltage 690V AC, 300V DC

Series LC1D

Shock Resistance 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)

Standards CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, BV, RINA, GOST, LROS, DNV, GL, CCC, UL, CSA, THIEC 60068-2-30

Thermal Amperage 125 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)

Vibration Resistance 3 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 6 to 10W

Width 96 mm
