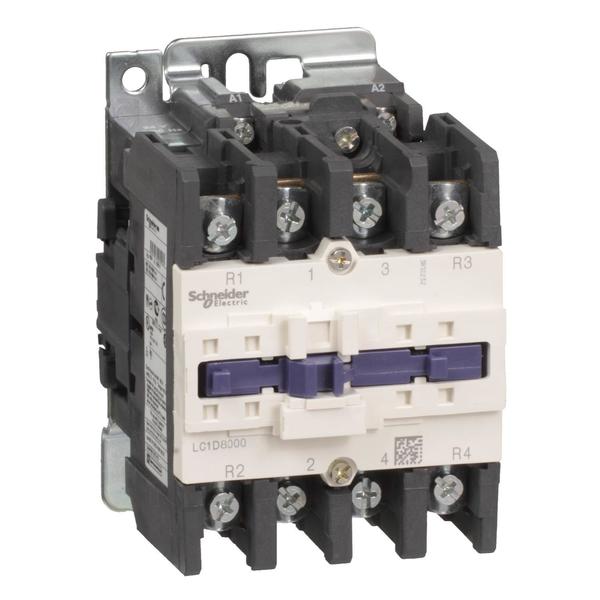

IEC Magnetic Contactor, 4 Poles, 120 V AC, 80 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor

Web Price

$853.74 / each

Qty

Product Details

Application Resistive Load

Associated Fuse Rating 200 A gG at Less than or Equal to 690 V coordination type 1 for power circuit; 160 A gG at Less than or Equal to 690 V coordination type 2 for power circuit

Aux. Contact Configuration 2NO/2NC

Average Impedance 0.8 mOhm - Ith 125 A 50 Hz for power circuit

Climatic Withstand IACS E10 exposure to damp heat

Coil Volts 120 V AC

Connections - Terminals Control circuit: screw clamp terminals 2 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.00 inÃÂ² (1 to 2.5 mmÃÂ²) - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 0.00 to 0.01 inÃÂ² (1 to 4 mmÃÂ²) - cable stiffness: solid without cable end; Power circuit: connector 1 0.01 to 0.08 inÃÂ² (4 to 50 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: connector 2 0.01 to 0.04 inÃÂ² (4 to 25 mmÃÂ²) - cable stiffness: flexible without cable end; Power circuit: connector 1 0.01 to 0.08 inÃÂ² (4 to 50 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: connector 2 0.01 to 0.02 inÃÂ² (4 to 16 mmÃÂ²) - cable stiffness: flexible with cable end; Power circuit: connector 1 0.01 to 0.08 inÃÂ² (4 to 50 mmÃÂ²) - cable stiffness: solid without cable end; Power circuit: connector 2 0.01 to 0.04 inÃÂ² (4 to 25 mmÃÂ²) - cable stiffness: solid without cable end

Contact Compatibility M1

Control Circuit Type AC 50/60 Hz

Control Circuit Voltage 120 V AC 50/60 Hz

Control Circuit Voltage Limits Operational AC: 0.85 to 1.1 Uc (at -40 to 55ÃÂ°C 60 Hz), 0.8 to 1.1 Uc (at -40 to 55ÃÂ°C 50 Hz); Drop-Out AC: 0.3 to 0.6 Uc (at -40 to 55ÃÂ°C 50/60 Hz)

Conventional Free Air Thermal Current 125 A (at 140ÃÂ°F (60ÃÂ°C)) for power circuit

Country of Origin (subject to change) Czechia

Depth 140 mm

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.8 Mcycles (125 A, AC-1, Less than 440 V)

Environmental Attributes Mercury Free, PVC Free, Toxic Heavy Metal Free, Pollution Degree 3

Features Without Built-In Suppressor Module

Fire Rating UL 94 V1

Fire Resistance 1562ÃÂ°F (850ÃÂ°C) IEC 60695-2-1

Flame Retardance V1 conforming to UL 94

Full Load Amps-Inductive 80 A

Fuse Amps 200 A (Type 1 Power Circuit), 160 A (Type 2 Power Circuit)

Heat Dissipation 6 to 10 W at 50/60 Hz

Height 127 mm

Hold VA 26 VA

Hold-In Power Consumption in VA 26 VA 60 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C)); 26 VA 50 Hz cos phi 0.3 (at 68ÃÂ°F (20ÃÂ°C))

Impedance 0.8 mOhm

Impulse Withstand Voltage 8 kV

Includes Protective Cover No

Inrush Power in VA 245 VA 60 Hz cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C)); 245 VA 50 Hz cos phi 0.75 (at 68ÃÂ°F (20ÃÂ°C))

Inrush VA 245 VA

IP Degree Of Protection IP20 front face IEC 60529

IP Rating IP20

IRMS Rated Making Capacity 1100 A at 440 V for power circuit conforming to IEC 60947

Max. Temperature 850ÃÂ°C

Maximum Operating Rate 3600 cyc/h 140ÃÂ°F (60ÃÂ°C)

Mechanical Durability 4 Mcycles

Mechanical Robustness Vibrations contactor open 2 Gn, 5 to 300 Hz); Shocks contactor open 8 Gn for 11 ms); Vibrations contactor closed 3 Gn, 5 to 300 Hz); Shocks contactor closed 10 Gn for 11 ms)

Mounting Support Rail; Plate

Mounts On Plate, Rail

Net Weight 1.84 kg

Number of Poles 4

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Operating Speed 3600 cycles per hr

Operating Time 20 to 35 ms (Closing), 6 to 20 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Permissible Ambient Air Temperature Around The Device -40 to 140ÃÂ°F (-40 to 60ÃÂ°C); 140 to 158ÃÂ°F (60 to 70ÃÂ°C) with derating

Pole Contact Composition 2 NO + 2 NC

Poles Description 4P

Pollution Degree 3

Power Dissipation Per Pole 12.5 W AC-1

Product Certifications UL; CSA; CCC; EAC; UKCA; CB; EU-RO-MR by DNV-GL

Product Or Component Type Contactor

Protective Cover Without

Protective Treatment THIEC 60068-2-30

Rated Breaking Capacity 1100 A @ 440V

Rated Impulse Withstand Voltage 8 kV IEC 60947

Rated Insulation Voltage Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 1000 V IEC 60947-4-1

Rated Insulation Volts 600/1000V

Rated Making Capacity 1100 A @ 440V (Power Circuit)

Rated Operational Current 125 A (at Less than 140ÃÂ°F (60ÃÂ°C)) at Less than or Equal to 440 V AC AC-1 for power circuit

Rated Operational Voltage Power circuit Less than or Equal to 690 V AC 25 to 400 Hz

Rated Short Time Withstand Current 640 A 104ÃÂ°F (40ÃÂ°C) - 10 s for power circuit; 990 A 104ÃÂ°F (40ÃÂ°C) - 1 s for power circuit; 135 A 104ÃÂ°F (40ÃÂ°C) - 10 min for power circuit; 320 A 104ÃÂ°F (40ÃÂ°C) - 1 min for power circuit

Rated Short-Time Withstand Current 640 A (at 40ÃÂ°C for 10 s Power Circuit), 990 A (at 40ÃÂ°C for 1 s Power Circuit), 135 A (at 40ÃÂ°C for 10 min Power Circuit), 320 A (at 40ÃÂ°C for 1 min Power Circuit)

Rated Voltage 690V AC

Safety Reliability Level B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1; B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Series LC1D

Shock Resistance 10 G for 11 ms (Contactor Closed), 8 G for 11 ms (Contactor Open)

Standards EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, UL, CSA, CCC, EAC, UKCA, CB, EU-RO-MR by DNV-GL, THIEC 60068-2-30

Thermal Amperage 125 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.2 Nm (Control Circuit), 12 Nm (Power Circuit)

Utilisation Category AC-1

Vibration Resistance 3 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 6 to 10W

Width 96 mm

Working Height Up to 9842.52 ft
