Home / IEC Magnetic Contactor, 4 Poles, 24 V DC, 25 A

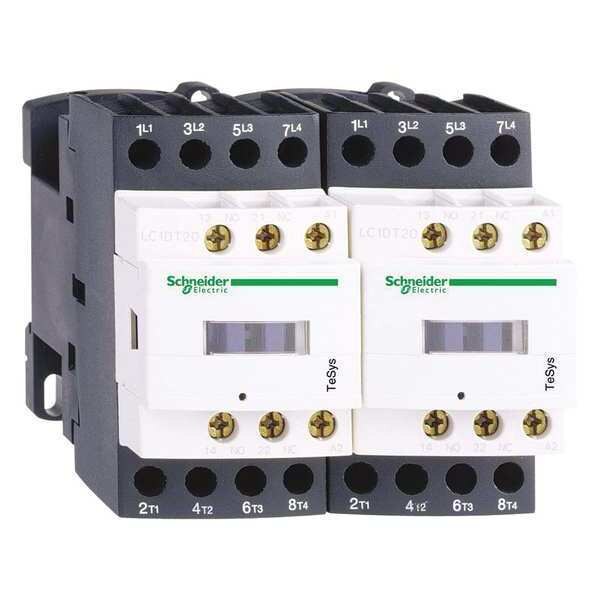

IEC Magnetic Contactor, 4 Poles, 24 V DC, 25 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor

Web Price

$539.99 / each

Qty

Product Details

Action Reversing

Application Resistive Load

Aux. Contact Configuration 1NO/1NC

Coil Volts 24 V DC

Control Circuit Voltage Limits Drop-Out DC: 0.1 to 0.25 Uc (at -40 to 60ÃÂ°C); Operational DC: 0.7 to 1.25 Uc (at -40 to 60ÃÂ°C)

Country of Origin (subject to change) France

Depth 90 mm

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.8 Mcycles (25 A, AC-1, Less than 690 V)

Environmental Attributes Mercury Free, PVC Free, Pollution Degree 3

Features Built-In Bi-Directional Peak Limiting Diode Suppressor; Preassembled with Prewired Power Connections

Fire Rating UL 94 V1

Full Load Amps-Inductive 25 A

Fuse Amps 10 A (Signalling Circuit), 40 A (Type 1 Power Circuit), 25 A (Type 2 Power Circuit)

Height 85 mm

Impedance 2.5 mOhm

Impulse Withstand Voltage 6 kV

Includes Protective Cover Yes

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Temperature 850ÃÂ°C

Mechanical Durability 30 Mcycles

Mounts On Plate, Rail

Net Weight 0.73 kg

Non-Overlap Time 1.5 ms

Number of Poles 4

Operating Speed 3600 cycles per hr

Operating Time 53.55 to 72.45 ms (Closing), 16 to 24 ms (Opening)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 250 A @ 440V

Rated Insulation Volts 600/690V

Rated Making Capacity 250 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)

Rated Short-Time Withstand Current 30 A (at 40ÃÂ°C for 10 min Power Circuit), 61 A (at 40ÃÂ°C for 1 min Power Circuit), 105 A (at 40ÃÂ°C for 10 s Power Circuit), 210 A (at 40ÃÂ°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 690V AC, 300V DC

Series LC2D

Shock Resistance 15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)

Signalling Circuit Frequency 25 to 400 Hz

Standards CSA C22.2 No 60947-4-1, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, UL, CSA, CCC, EAC, UKCA, CB, EU-RO-MR by DNV-GL, TH IEC 60068-2-30

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 10 A (at 60ÃÂ°C Signalling Circuit), 25 A (at 60ÃÂ°C Power Circuit)

Tightening Torque 1.7 Nm (Control Circuit), 1.7 to 2.5 Nm (Power Circuit)

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Width 90 mm

Working Height Up to 9842.52 ft
