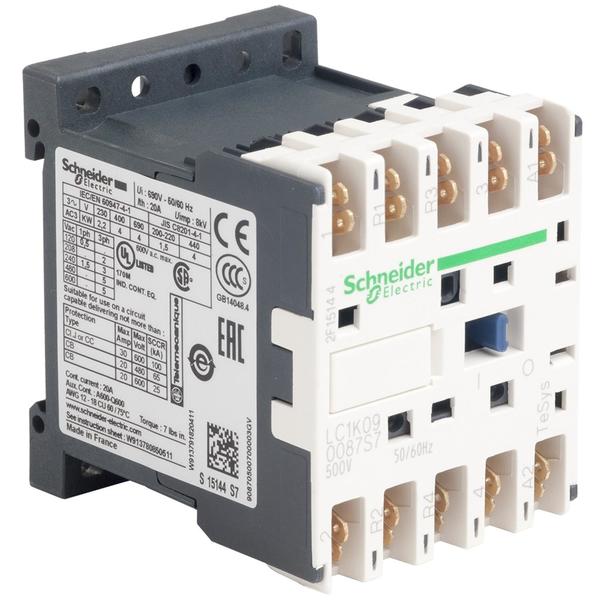

IEC Magnetic Contactor, 4 Poles, 500 V AC, 9 A

SKU
Brand Schneider Electric
Categories
Description IEC Magnetic Contactor
graingerSKU: , mscSKU: , zoro_no: G0849390, mongo_id: 65bbe95522d7a989a994cd0b

Web Price

$126.24 / each

Qty

Product Details

Application Resistive Load

Aux. Contact Configuration 2NO/2NC

Coil Volts 500 V AC

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.2 to 0.75 Uc (at 50ÃÂ°C)

Country of Origin (subject to change) France

Depth 57 mm

Electrical Connection Faston Terminals

Electrical Durability 0.18 Mcycles (20 A, AC-1, Less than 440 V)

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Full Load Amps-Inductive 9 A

Full Load Amps-Resistive 20 A

Fuse Amps 25 A

Height 58 mm

Hold VA 4.5 VA

Impedance 3 mOhm

Impulse Withstand Voltage 8 kV

Inrush VA 30 VA

IP Rating IP2X

Mechanical Durability 10 Mcycles

Mounts On Plate, Rail

Net Weight 0.18 kg

Number of Poles 4

Operating Speed 3600 cycles per hr

Operating Time 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing), 15 to 25 ms (Coil De-Energisation and NC Closing), 5 to 15 ms (Coil Energisation and NC Opening)

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V

Rated Insulation Volts 600/690V

Rated Making Capacity 110 A (AC Power Circuit)

Rated Short-Time Withstand Current 90 A (at 50ÃÂ°C for 1 s Power Circuit), 85 A (at 50ÃÂ°C for 5 s Power Circuit), 80 A (at 50ÃÂ°C for 10 s Power Circuit), 60 A (at 50ÃÂ°C for 30 s Power Circuit), 45 A (at 50ÃÂ°C for 1 min Power Circuit), 40 A (at 50ÃÂ°C for 3 min Power Circuit), 20 A (at 50ÃÂ°C for 15 min Power Circuit)

Rated Voltage 690V AC

Series LC1K

Shock Resistance 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)

Signalling Circuit Frequency Less Than 400 Hz

Standards EN/IEC 60947-4-1, GB/T 14048.4, UL 60947-4-1, CSA C22.2 No 60947-4-1, JIS C8201-4-1, CB Scheme, CCC, UL, CSA, EAC, CE, UKCA, TC IEC 60068, TC DIN 50016

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit)

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 1.3W

Width 45 mm
