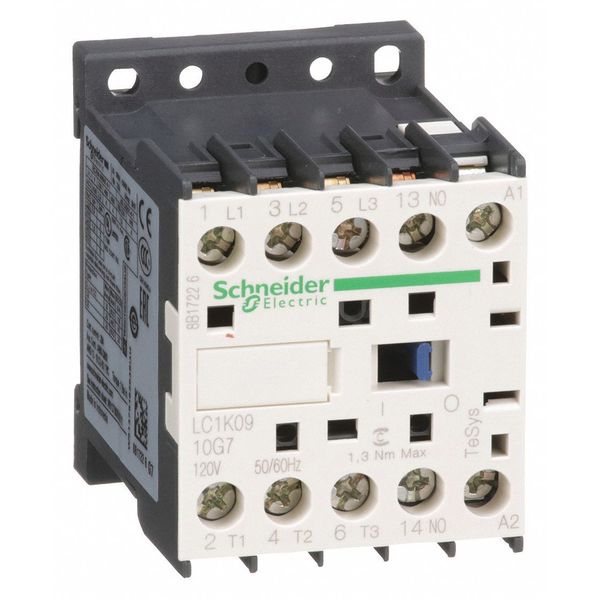

IEC Mini Magnetic Contactor, 3 Poles, 120 V AC, 9 A, Reversing: No

SKU
Brand Schneider Electric
Categories
Description Miniature IEC Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 20 A, Reversing Capability Non-Reversing, Overall Height 2.4 in, Overall Width 2.4 in, Series TeSys K, Number of Auxillary Contacts 1, Contactor Style IEC, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 5 hp
graingerSKU: 40Z691, mscSKU: , zoro_no: G5146312, mongo_id: 65bbe7113aaddbd5a9071807

Web Price

$108.36 / each

Qty

Product Details

Action Non-Reversing

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NO

Auxiliary Contact Form 1NO

Coil Voltage 120V AC

Coil Volts 120 V AC

Contactor Style IEC

Control Circuit Voltage Limits Operational: 0.8 to 1.15 Uc (at 50ÃÂ°C), Drop-Out: 0.2 to 0.75 Uc (at 50ÃÂ°C)

Country of Origin (subject to change) Multiple

Depth 2.5 in

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, Toxic Heavy Metal Free

Fire Rating UL 94 V1, NF F 16-101, NF F 16-102

Frequency 50/60 Hz

Full Load Amps-Inductive 9 A

Full Load Amps-Resistive 20 A

Full Load Current - Inductive 9 A

Full Load Current - Resistive 20 A

Fuse Amps 25 A (Power Circuit), 10 A (Signalling Circuit)

Height 2.4 in

Hold VA 4.5 VA

Horsepower @ Single Phase - 120V AC 1/2 hp

Horsepower @ Single Phase - 240V AC 1 1/2 hp

Horsepower @ Three Phase - 208V AC 2 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 5 hp

Horsepower @ Three Phase - 600V AC 5 hp

HP @ 1 Phase - 120V 1/2 hp

HP @ 1 Phase - 230V 1-1/2

HP @ 1 Phase - 240V 1 1/2 hp

HP @ 3 Phase - 208V 2 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 5 hp

HP @ 3 Phase - 575V 5 hp

Hz_ 50/60

Impedance 3 mOhm

Includes Auxiliary Contacts Yes

Inrush VA 30 VA

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

Max. Operating Watts 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3), 4 kW 380 to (at 415V AC 50/60 Hz AC-3), 4 kW (at 440V AC 50/60 Hz AC-3), 4 kW (at 480V AC 50/60 Hz AC-3), 4 kW (at 500 to 600V AC 50/60 Hz AC-3), 4 kW (at 660 to 690V AC 50/60 Hz AC-3), 2.2 kW (at 400V AC 50/60 Hz AC-4), 2.2 kW (at 220 to 230V AC 50/60 Hz AC-3e), 4 kW (at 380 to 415V AC 50/60 Hz AC-3e), 4 kW (at 440V AC 50/60 Hz AC-3e), 4 kW (at 480V AC 50/60 Hz AC-3e), 4 kW (at 500 to 600V AC 50/60 Hz AC-3e), 4 kW (at 660 to 690V AC 50/60 Hz AC-3e)

Maximum Voltage Rating 480V AC

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 1

Number of Normally Open Main Contacts 3

Number of Poles 3

Operating Speed 3600 cycles per hr

Operating Time 10 to 20 ms (Coil De-Energisation and NO Opening), 10 to 20 ms (Coil Energisation and NO Closing)

Overall Depth 2.5 in

Overall Height 2.4 in

Overall Width 2.4 in

Overvoltage Category CAT III

Package Quantity 1

Rated Breaking Capacity 110 A @ 415V, 440V, 220 to 230V, 380 to 400 V; 80 A @ 500V; 70 A @ 660 to 690V

Rated Making Capacity 110 A

Resistance Properties Insulation Resistant

Reversing No

Reversing Capability Non-Reversing

Series TeSys K

Shock Resistance 10 G for 11 ms (on X axis with Contactor Closed), 15 G for 11 ms (on Y and Z axis with Contactor Closed), 6 G for 11 ms (on X axis with Contactor Open), 10 G for 11 ms (on Y and Z axis with Contactor Open)

Signalling Circuit Frequency Less Than 400 Hz

Standards CSA, UKCA, UL Listed

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Thermal Amperage 20 A (at 50ÃÂ°C Power Circuit), 10 A (at 50ÃÂ°C Signalling Circuit)

Vibration Resistance 4 G (Contactor Closed), 2 G (Contactor Open)

Watts Loss 1.3W

Width 2.4 in

Working Height 6561.68 ft
