Home / IEC Timer Module, 1NO/1NC, .1 to 30sec

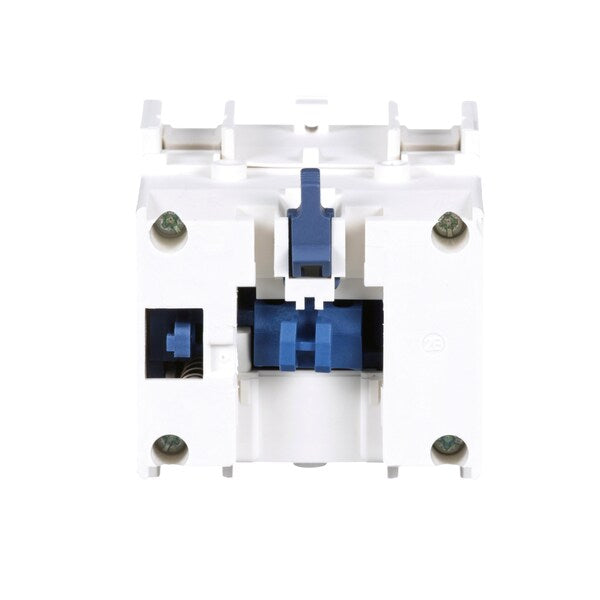

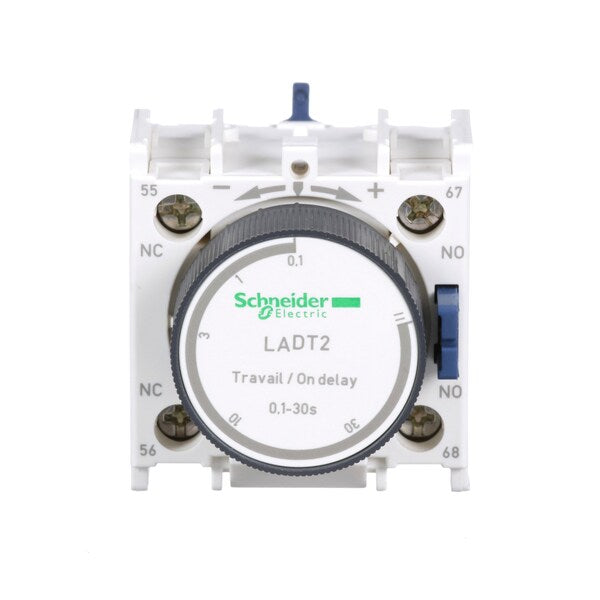

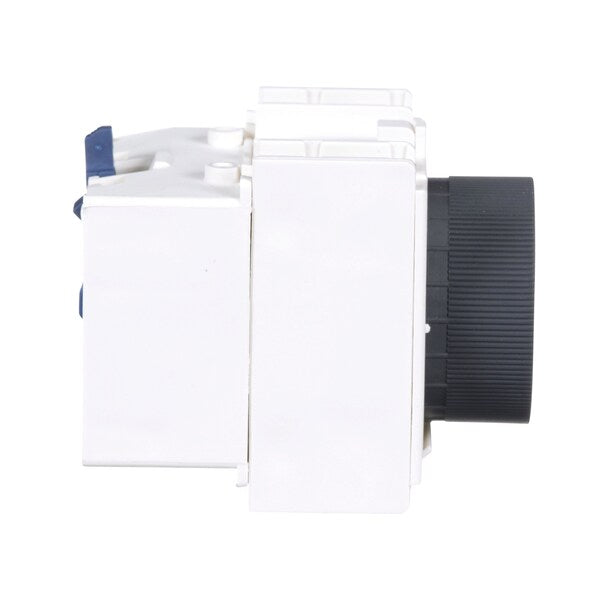

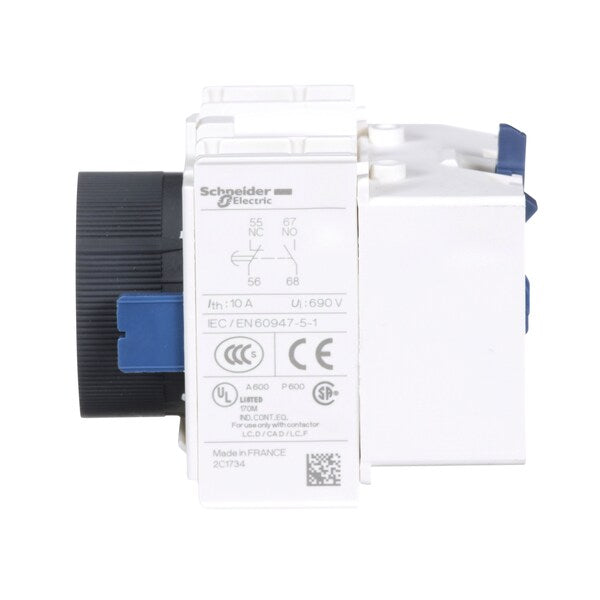

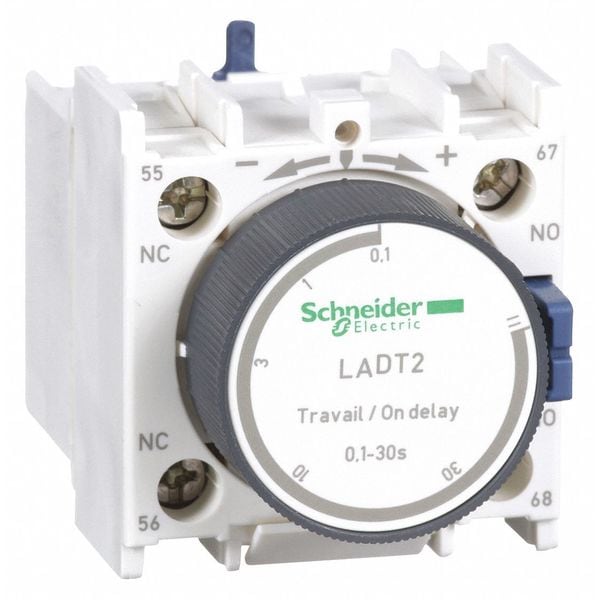

IEC Timer Module, 1NO/1NC, .1 to 30sec
IEC Timer Module, 1NO/1NC, .1 to 30sec
IEC Timer Module, 1NO/1NC, .1 to 30sec
IEC Timer Module, 1NO/1NC, .1 to 30sec
IEC Timer Module, 1NO/1NC, .1 to 30sec

IEC Timer Module, 1NO/1NC, .1 to 30sec

  • Schneider Electric
  • IEC Timer Module, Number of Normally Closed Contacts 1, Delay Type On Delay, Maximum Voltage Rating 690V AC, Number of Normally Open Contacts 1, Number of Contacts 2, Compatible with Series TeSys Deca, Starter Mounting Location Front, Terminal Connection Type Screw Clamp Terminals, Maximum Operating Temperature 158 Degrees F, Time Delay - Minimum 0.1 sec, Time Delay - Maximum 30 sec

    graingerSKU: 3DB74, mscSKU: 57232811, zoro_no: G0354523, mongo_id: 65bbe6673aaddbd5a9029dac

Web Price
$206.24 / each
Qty

Product Details

-40-70°C
-60-80°C
time delay
dark grey
LC1D09B7, LC1D09BD, LC1D09F7, LC1D09M7, LC1D09P7, LC1D12B7, LC1D12BD, LC1D12M7, LC1D12P7, LC1D18B7, LC1D18BD, LC1D18M7, LC1D18P7, LC1D25B7, LC1D25BD, LC1D25M7, LC1D25P7, LC1D32B7, LC1D32M7, LC1D40AM7
LC1D09B7, LC1D09BD, LC1D09F7, LC1D09M7, LC1D09P7, LC1D12B7, LC1D12BD, LC1D12M7, LC1D12P7, LC1D18B7, LC1D18BD, LC1D18M7, LC1D18P7, LC1D25B7, LC1D25BD, LC1D25M7, LC1D25P7, LC1D32B7, LC1D32M7, LC1D40AM7
TeSys Deca
screw clamp terminals 1 1-2.5 mm²flexible with cable end || screw clamp terminals 1 1-2.5 mm²flexible without cable end || screw clamp terminals 2 1-2.5 mm²flexible with cable end || screw clamp terminals 2 1-2.5 mm²flexible without cable end || screw clamp terminals 1 1-2.5 mm²rigid || screw clamp terminals 2 1-2.5 mm²rigid || screw clamp terminals
1
1
10 A (at 140°F (60°C))
France
On Delay
61 mm
normal environment
48 mm
> 10 MOhm
IP20 conforming to IEC 60529
IP20
140 A <= 690 V AC IEC 60947-5-1 || 250 A <= 690 V DC IEC 60947-5-1
1
158 Degrees F
690V AC
5 Mcycles
-40 Degrees F
5 mA
17 V
Front
front
1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
2
1
1
9842.52 ft (3000 m)
1
100 A 60°C 1 s || 120 A 60°C 500 ms || 140 A 60°C 100 ms
1 NO + 1 NC
IECEE CB Scheme || UL || CSA || CCC || EAC || UKCA
TeSys Deca
time delay auxiliary contact block
gG fuse 10 A
TH IEC 60068
TeSys || TeSys Deca
TeSys D CAD || TeSys D LC1D || TeSys F LC1F || TeSys F CR1F || TeSys Deca CAD || TeSys Deca LC1D
0.10 sec to 30.00 sec
690 V IEC 60947-5-1; 600 V UL 60947-5-1; 600 V CSA C22.2 No 60947-5-1
6 A at 120 V AC-15; 1.04 A at 690 V AC-15; 0.55 A at 125 V DC-13; 0.1 A at 600 V DC-13
690 V AC 25 to 400 Hz
CSA C22.2 No 60947-5-1 || GB/T 14048.5 || EN/IEC 60947-5-1
Front
Screw Clamp Terminals
1.7 N.m flat Ø 6 mm || 1.7 N.m Philips No 2 || 1.7 N.m pozidriv No 2
30 sec
0.1 sec
1...30 s
on delay
44 mm
6 A120 V AC-15 || 1.04 A690 V AC-15 || 0.55 A125 V DC-13 || 0.1 A600 V DC-13
10 A 60°C
690 V AC 25...400 Hz
690 V IEC 60947-5-1 || 600 V UL 60947-5-1 || 600 V CSA C22.2 No 60947-5-1
