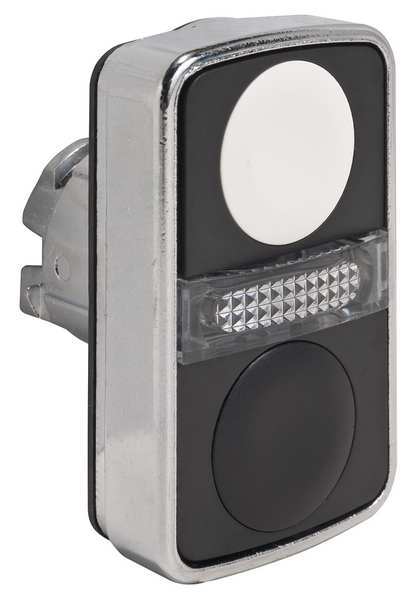

Illuminated Multi-Head Operator, 22 mm, Rectangular

Illuminated Multi-Head Operator, 22 mm, Rectangular

  • Schneider Electric
  • Illuminated Multi-Head Operator, Number of Heads 2, Legend/Background Color White/Green, White/Red, Lamp Voltage Module Not Included, Lamp Type LED, Type of Operator (2) Flush Buttons, Legend No Legend, Size 22 mm, Action Momentary, Shape Rectangular, NEMA Rating 13, 4X, IP Rating 66, 69K, Head Material Chrome, Standards CE, CSA, RoHS, UL, Includes White Background and Black Background Unmarked

    graingerSKU: 23V771, mscSKU: , zoro_no: G4582672, mongo_id: 65bbea5822d7a989a99ab63f

Web Price
$51.99 / each

Product Details

Momentary
-40-70°C
-40-70°C
chromium plated metal
30 mm
50 mm
30 mm
black marking when white caps || white marking when green, red or black caps
France
basic sub-assemblies
ZB4
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
class I IEC 61140
Chrome
standard
IK06 IEC 50102
White Background and Black Background Unmarked
IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
66, 69K
Led
Module Not Included
No legend
White/Green, White/Red
1000000 cycles
22 mm
NEMA 13 || NEMA 4X
13, 4X
2
black flush, unmarked || white flush, unmarked, 2 flush push-buttons - 1 central pilot light
white unmarked - black unmarked
1
CSA || DNV || UL Listed || LROS (Lloyds register of shipping) || GL || BV
integral LED
head for illuminated double-headed push-button
TH
7000000 Pa 55°C 0.1 m
Rectangular
rectangular
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
22 mm
CE, CSA, RoHS, UL
(2) Flush Buttons
5 gn 2-500 Hz)IEC 60068-2-6
