Home / Illuminated Multi-Head Operator, 22 mm, Rectangular

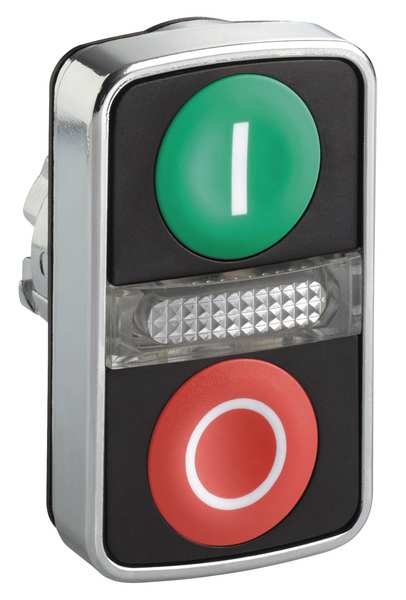

Illuminated Multi-Head Operator, 22 mm, Rectangular

Illuminated Multi-Head Operator, 22 mm, Rectangular

  • Schneider Electric
  • Illuminated Multi-Head Operator, Number of Heads 2, Legend/Background Color White/Green, White/Red, Lamp Voltage Module Not Included, Lamp Type LED, Type of Operator (1) Extended Button, (1) Flush Button, Legend I/O, Size 22 mm, Action Momentary, Shape Rectangular, NEMA Rating 13, 4X, IP Rating 66, 69K, Head Material Chrome, Standards CSA C22-2 n Degrees 14, EN/IEC 60947-, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL508

    graingerSKU: 6XTG2, mscSKU: 69675742, zoro_no: G3552001, mongo_id: 65bbe7283aaddbd5a9079df9

Web Price
$64.81 / each
Qty

Product Details

Momentary
-40-70°C
-40-70°C
chromium plated metal
30 mm
50 mm
30 mm
white marking when green, red or black caps || black marking when white caps
France
basic sub-assemblies
ZB4
M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
class I IEC 61140
Chrome
standard
IK06 IEC 50102
IP66 IEC 60529 || IP69K || IP69 IEC 60529
66, 69K
Led
Module Not Included
I/O
White/Green, White/Red
1000000 cycles
22 mm
NEMA 13 || NEMA 4X
13, 4X
2
green flush, I white) || red projecting, O white), 1 flush - 1 projecting push-buttons - 1 central pilot light
green ''I'' - red ''O''
1
UL Listed || DNV || BV || LROS (Lloyds register of shipping) || GL || CSA
integral LED
head for illuminated double-headed push-button
TH
7000000 Pa 55°C 0.1 m
Rectangular
rectangular
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
22 mm
CSA C22-2 n Degrees 14, EN/IEC 60947-, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL508
(1) Extended Button, (1) Flush Button
5 gn 2-500 Hz)IEC 60068-2-6
