Name: Illuminated Multi-Head Operator, 22 mm, Round
Brand: Schneider Electric
SKU: G2362818
Price: 69.86 USD
Availability: InStock

Home / Illuminated Multi-Head Operator, 22 mm, Round

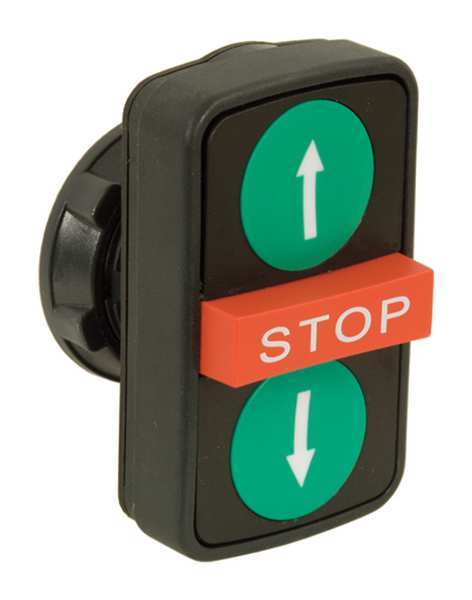

Illuminated Multi-Head Operator, 22 mm, Round

SKU
Brand Schneider Electric
Categories
Description Illuminated Multi-Head Operator, Number of Heads 3, Legend/Background Color White/Green, White/Red, Lamp Voltage Module Not Included, Lamp Type Module Not Included, Type of Operator (1) Extended Button, (2) Flush Buttons, Legend Up Arrow/Down Arrow/Stop, Size 22 mm, Action Momentary, Shape Round, NEMA Rating 13, 4X, IP Rating 66, 69K, Head Material Plastic, Standards CSA C22.2 No 14, EN/IEC 60947, UL 508
graingerSKU: 48K820, mscSKU: , zoro_no: G2362818, mongo_id: 65bbe7bf9a749db8227539e8

Web Price

$69.86 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Bezel Material dark grey plastic

Cad Overall Depth 35 mm

Cad Overall Height 50 mm

Cad Overall Width 30 mm

Colour Of Marking black marking when white caps || white marking when green, red or black caps

Country of Origin (subject to change) France

Device Presentation basic element

Device Short Name XB5

Electrical Composition Code C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting

Electrical Shock Protection Class class II IEC 61140

Green Environmental Attribute RoHS 2011/65/EU Compliant

Head Material Plastic

Head Type standard

Ik Degree Of Protection IK05 IEC 50102

Ip Degree Of Protection IP67 IEC 60529 || IP69 IEC 60529 || IP69K

IP Rating 66, 69K

Lamp Type Module Not Included

Lamp Voltage Module Not Included

Legend Up Arrow/Down Arrow/Stop

Legend/Background Color White/Green, White/Red

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4X

Number of Heads 3

Operator Profile red projecting, STOP white) || green flush, down arrow white) || green flush, up arrow white), 2 flush - 1 central projecting STOP push-buttons

Operators Description green ''up arrow'' - green ''down arrow'' - red ''STOP''

Package Quantity 1

Product Certifications GL || BV || LROS (Lloyds register of shipping) || CSA || UL Listed || DNV

Product Or Component Type head for triple-headed push-button

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Round

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Size 22 mm

Standards CSA C22.2 No 14, EN/IEC 60947, UL 508

Station Name XALD 1 cut-out

Type of Operator (1) Extended Button, (2) Flush Buttons
