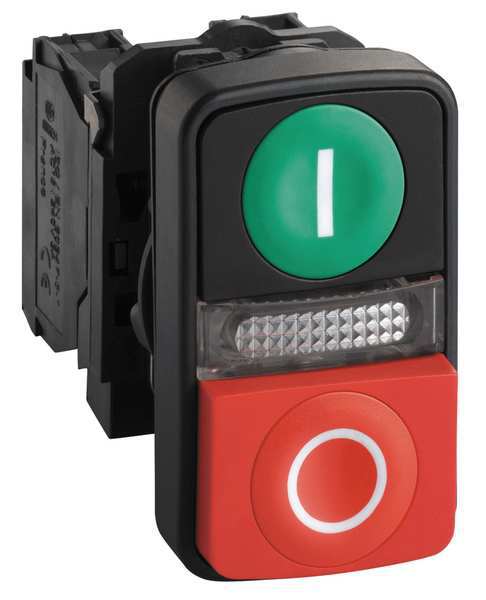

Illuminated Multi-Head Operator with Contact, 22 mm, 1NO/1NC, Rectangle

SKU
Brand Schneider Electric
Categories
Description Illuminated Multi-Head Operator with Contact, Basic Material Plastic, Number of Heads 3, Legend/Background Color White/Green, White/Red, Lamp Voltage 24V AC/DC, Lamp Type LED, Type of Operator (1) Extended Button, (1) Flush Button, (1) Light, Contact Form 1NO/1NC, Size 22 mm, Legend I/O, Action Momentary / Momentary, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Lamp Module Voltage 24V AC/DC, Lamp Module Type Full Voltage, Replacement Lamp Mfr. No 25501-01-027
graingerSKU: , mscSKU: , zoro_no: G4572592, mongo_id: 65bbe6173aaddbd5a900758a

Web Price

$133.74 / each

Product Details

Action Momentary / Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Material dark grey plastic

Bulb Base integral LED

Colour Of Marking black marking when white caps || white marking when green, red or black caps

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Current Consumption 18 mA

Depth 59 mm

Device Presentation complete product

Device Short Name XB5

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Electromagnetic Emission class B IEC 55011

Fixing Collar Material plastic

Head Material Plastic

Head Type standard

Height 50 mm

Ik Degree Of Protection IK05 IEC 50102

Includes 24V Light, White I on Green Background and White O on Red Background

Ip Degree Of Protection IP66 IEC 60529 || IP69 IEC 60529 || IP69K

IP Rating 66, 69K

Lamp Module Type Full Voltage

Lamp Module Voltage 24V AC/DC

Lamp Type Led

Lamp Voltage 24V AC/DC

Legend I/O

Legend/Background Color White/Green, White/Red

Light Source protected LED

Light Source Colour white

Mechanical Durability 1000000 cycles

Mounting Diameter 22 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 1, 12, 3, 4, 4X

Number of Heads 3

Operating Force 3.5 N NC changing electrical state || 3.8 N NO changing electrical state

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Profile 1 flush - 1 projecting push-buttons - 1 central pilot light, green flush, I white) || red projecting, O white)

Operators Description green ''I'' - red ''O''

Overvoltage Category class II IEC 61140

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications LROS (Lloyds register of shipping) || GL || DNV || UL Listed || BV || CSA

Product Or Component Type illuminated double-headed push-button

Protective Treatment TH

Replacement Lamp Mfr. No 25501-01-027

Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Fast Transients 2 kV IEC 61000-4-4

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Rectangle

Shape Of Screw Head cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Signalling Type steady

Size 22 mm

Standards CE, CSA, RoHS, UL

Supply Voltage Limits 19.2-30 V DC || 21.6-26.4 V AC

Surge Withstand 1 kV IEC 61000-4-5

Terminals Description Iso NÃÂ°1 (11-12)NC || (13-14)NO

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator (1) Extended Button, (1) Flush Button, (1) Light

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

Width 30 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1

[Us] Rated Supply Voltage 24 V AC/DC 50/60 Hz
