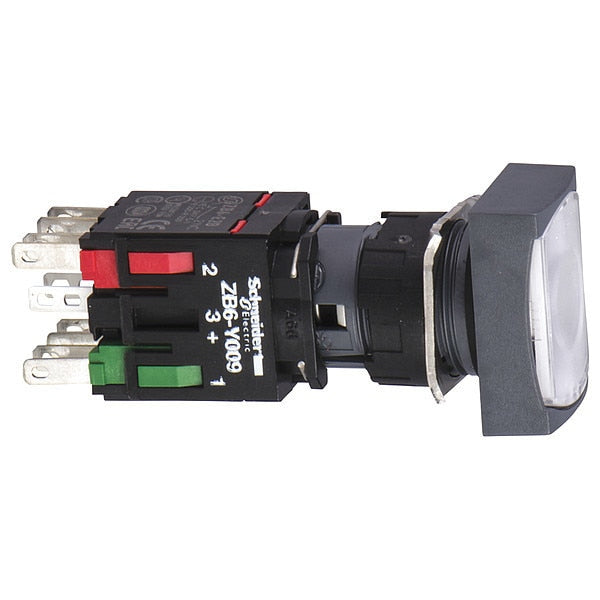

Illuminated Push Button, 16 mm, 1 NO, White

SKU
Brand Schneider Electric
Categories
Description Illuminated Push Button, 16 mm, Momentary, Type of Operator Rectangular Flush Button, Basic Material Plastic, 1 NO Contact Form, Plastic Bezel, Color White, Lamp Module Voltage 12 to 24V AC/DC, Lamp Type LED, Lamp Voltage 12 to 24V AC/DC, Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC, NEMA Contact Rating Designation B300/R300, Number of Operators 1, NEMA Rating 13, 4, 4X, IP Rating 65, Legend No Legend, Legend/Background Color No Legend

Web Price

$43.94 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -25-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Plastic

Bezel Material plastic

Bulb Base integral LED

Cad Overall Depth 57 mm

Cad Overall Height 18 mm

Cad Overall Width 24 mm

Color White

Connections - Terminals Faston connectors 2.8 x 0.5 mm

Contact Form 1 NO

Contact Operation slow-break

Contact Rating 0.1A @ 250V DC, 0.22A @ 125V DC, 1.5A @ 240V AC, 3A @ 120V AC

Contact Type 1NO

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO

Country of Origin (subject to change) Mexico

Current Consumption 15 mA

Device Short Name XB6

Electrical Durability 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Electrical Shock Protection Class class II IEC 61140

Electromagnetic Emission class B IEC 55011

Ip Degree Of Protection IP65 IEC 60529

IP Rating 65

Lamp Module Voltage 12 to 24V AC/DC

Lamp Type LED

Lamp Voltage 12 to 24V AC/DC

Legend No Legend

Legend Markings No Legend

Legend/Background Color No Legend

Light Source LED

Mounting Diameter 16 mm

NEMA Contact Rating Designation B300/R300

Nema Degree Of Protection NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

NEMA Rating 13, 4, 4X

Number of Operators 1

Operating Force 3.5 N NO changing electrical state

Operating Position any position

Operating Travel 1 mm NO changing electrical state) || 3.5 mm total travel)

Operator Profile white flush, unmarked

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications UL || CCC || GOST || CSA

Product Or Component Type complete illuminated push-button

Protective Treatment TC

Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Fast Transients 2 kV IEC 61000-4-4

Shape Of Signaling Unit Head rectangular

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 6 A cartridge fuse gG

Signalling Type steady

Size 16 mm

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C 4520, JIS C 852

Supply Voltage Limits 6-30 V AC/DC

Surge Withstand 1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

Terminal Connection Quick Connect

Terminals Description Iso NÃÂ°1 (13-14)NO

Type of Operator Rectangular Flush Button

Vibration Resistance +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Voltage 12 to 24V AC/DC

[Ie] Rated Operational Current 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 4 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 3)EN/IEC 60947-1

[Us] Rated Supply Voltage 12 to 24 V AC/DC
