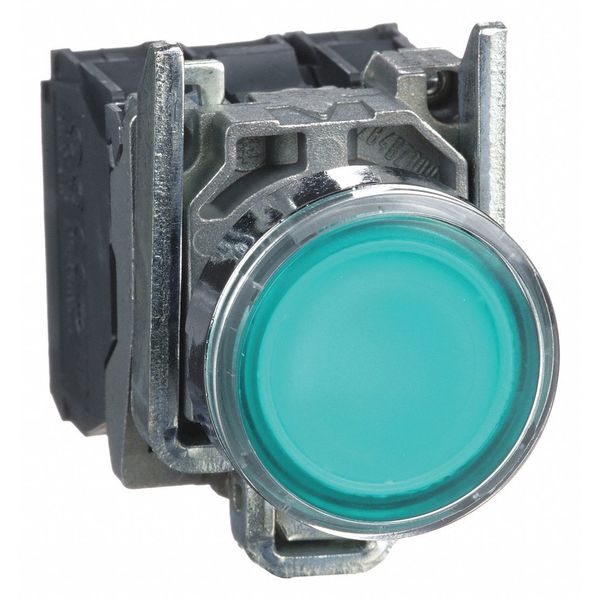

Illuminated Push Button, 22 mm, 1NO/1NC, Green

SKU
Brand Schneider Electric
Categories
Description Illuminated Push Button, 22 mm, Momentary, Type of Operator Round Guarded Button, Basic Material Metal, Metal Head Material, 1NO/1NC Contact Form, Chrome Plated Metal Bezel, Color Green, Lamp Module Voltage 24V AC/DC, Lamp Module Type Full Voltage, Lamp Type LED, Lamp Voltage 24V AC/DC, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 4, 4X, IP Rating 66, Standards CE, CSA, UL, Terminal Connection Pressure Plate
graingerSKU: 6HL10, mscSKU: , zoro_no: G2196731, mongo_id: 65bbe9ba22d7a989a997217e

Web Price

$118.11 / each

Qty

Product Details

Action Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Metal

Bezel Chrome Plated Metal

Bezel Material chromium plated metal

Bulb Base integral LED

Color Green

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contact Type 1NO/1NC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard contacts

Conventional Free Air Thermal Current 10 A IEC 60947-5-1

Country of Origin (subject to change) France

Current Consumption 18 mA

Depth 57 mm

Device Presentation complete product

Device Short Name XB4

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4

Electrical Shock Protection Class class I IEC 60536

Electromagnetic Emission class B IEC 55011

Fixing Collar Material zamak

Head Material Metal

Head Type standard

Height 47 mm

Ik Degree Of Protection IK06 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

IP Rating 66

Lamp Module Type Full Voltage

Lamp Module Voltage 24V AC/DC

Lamp Type Led

Lamp Voltage 24V AC/DC

Light Source universal LED

Mechanical Durability 10000000 cycles

Mounting Diameter 22 mm

NEMA Contact Rating Designation A600/Q600

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 1, 12, 13, 2, 3, 4, 4X

Number of Operators 1

Operating Force 3.5 N NC changing electrical state || 3.8 N

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Additional Information with plain lens

Operator Profile green flush

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications LROS (Lloyds register of shipping) || DNV || BV || GL || UL Listed || CSA

Product Or Component Type illuminated push-button

Protective Treatment TH

Rated Impulse Withstand Voltage 6 kV IEC 60947-1

Rated Insulation Voltage 600 V 3)IEC 60947-1

Rated Operational Current 3 A 240 V, AC-15, A600 IEC 60947-5-1; 6 A 120 V, AC-15, A600 IEC 60947-5-1; 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1; 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1; 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1; 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Fast Transients 2 kV IEC 61000-4-4

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Service Life 100000 h at rated voltage and 25ÃÂ°C

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Signalling Type steady

Size 22 mm

Standards CE, CSA, UL

Supply Voltage Limits 19.2-30 V DC || 21.6-26.4 V AC

Surge Withstand 1 kV IEC 61000-4-5

Terminal Connection Pressure Plate

Terminals Description ISO nÃÂ°1 (21-22)NC || (13-14)NO

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Round Guarded Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

Voltage 24V AC/DC

Width 30 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1

[Us] Rated Supply Voltage 24 V AC/DC 50/60 Hz
