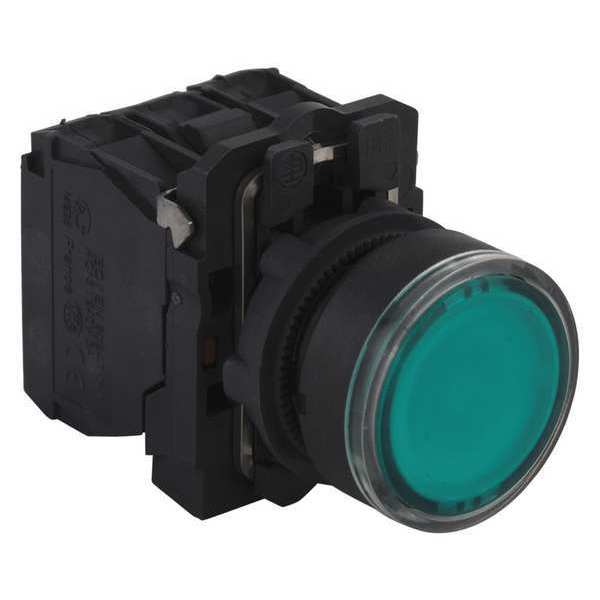

Illuminated Push Button, 22 mm, 1NO/1NC, Green

SKU
Brand Schneider Electric
Categories
Description Illuminated Push Button, 22 mm, Maintained / Momentary, Type of Operator Flush Button, Basic Material Plastic, Plastic Head Material, 1NO/1NC Contact Form, Double-Insulated Plastic Bezel, Color Green, Lamp Module Voltage 120V AC, Lamp Module Type Full Voltage, Lamp Type LED, Lamp Voltage 110 to 120V AC, Replacement Lamp Mfr. No. ZBVG3, Contact Rating 10A @ 600V AC, NEMA Rating 13, 4, 4X, IP Rating 65, 66
graingerSKU: 21AG60, mscSKU: , zoro_no: G6746013, mongo_id: 65bbe8fd22d7a989a992a3b9

Web Price

$124.31 / each

Product Details

Action Maintained / Momentary

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Basic Material Plastic

Bezel Double-insulated Plastic

Bezel Material dark grey plastic

Bulb Base integral LED

Cap/Operator Or Lens Colour green

Color Green

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22 to 2 x 2.5 mmÃÂ² without cable end EN/IEC 60947-1

Contact Form 1NO/1NC

Contact Operation slow-break

Contact Rating 10A @ 600V AC

Contacts Material silver alloy (Ag/Ni)

Contacts Type And Composition 1 NO + 1 NC

Contacts Usage standard contacts

Country of Origin (subject to change) France

Current Consumption 14 mA

Depth 57 mm

Device Presentation complete product

Device Short Name XB5

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4

Electromagnetic Emission class B IEC 55011

Fixing Collar Material plastic

Head Material Plastic

Head Type standard

Height 42 mm

Ik Degree Of Protection IK05 IEC 50102

Ip Degree Of Protection IP66 IEC 60529 || IP69 || IP69K || IP67

IP Rating 65, 66

Lamp Module Type Full Voltage

Lamp Module Voltage 120V AC

Lamp Type Led

Lamp Voltage 110 to 120V AC

Light Source universal LED

Mechanical Durability 10000000 cycles

Mounting Diameter 22 mm

Nema Degree Of Protection NEMA 13 || NEMA 4X

NEMA Rating 13, 4, 4X

Operating Force 3.5 N NC changing electrical state || 3.8 N

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Additional Information with plain lens

Operator Profile green flush, unmarked

Overvoltage Category class II IEC 60536

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Certifications DNV || CSA || GL || LROS (Lloyds register of shipping) || UL Listed || BV

Product Or Component Type illuminated push-button

Protective Treatment TH

Replacement Lamp Mfr. No. ZBVG3

Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3

Resistance To Electrostatic Discharge 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Resistance To Fast Transients 2 kV IEC 61000-4-4

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shape Of Signaling Unit Head round

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Signalling Type steady

Size 22 mm

Standards CSA C22-2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL 508

Supply Voltage Limits 100-132 V AC

Surge Withstand 1 kV IEC 61000-4-5

Terminal Connection Screw Clamp

Terminals Description Iso NÃÂ°1 (13-14)NO || (21-22)NC

Tightening Torque 0.8-1.2 N.m EN 60947-1

Type of Operator Flush Button

Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6

Voltage 110 to 120V AC

Width 30 mm

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1

[Us] Rated Supply Voltage 110 to 120 V AC 50/60 Hz
